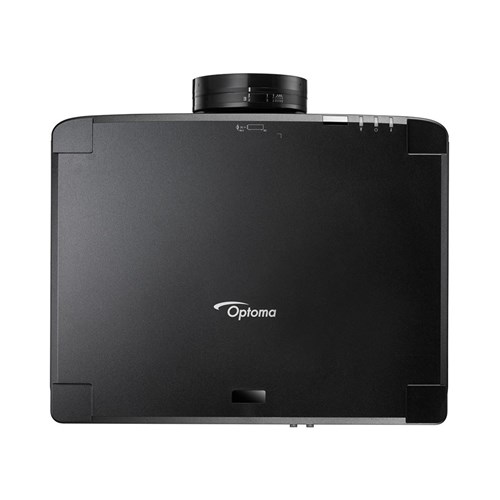

ZU920TST WUXGA 9800 Lumens Short Throw Laser Projector Optoma

Product Code: OP-ZU920TST

Brand
Optoma
$16,199.00 inc GST
RRP $16,199.00

Limited Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



3 Year
Technical Specifications
Brands Optoma
Aspect Ratio 16:10
Native Resolution WUXGA
Projector Category Multimedia
  • Details
  • Downloads
  • Where to Buy
  • Ordering

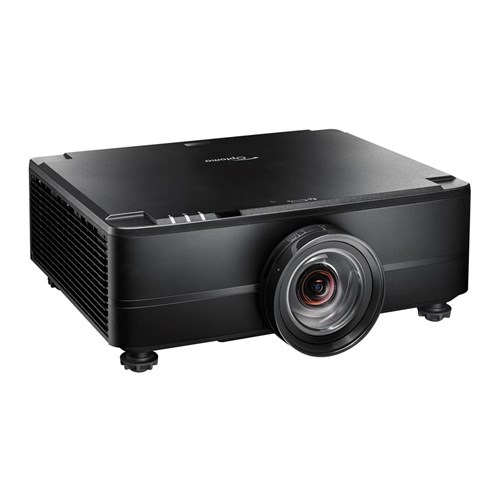

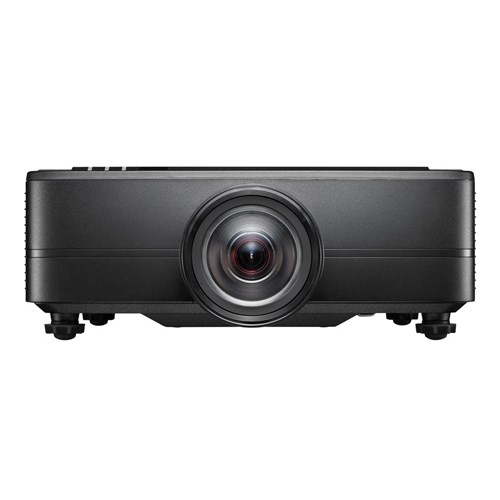

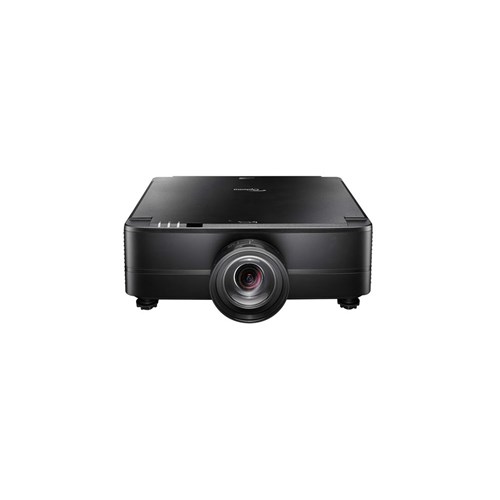

ZU920TST

Ultra bright fixed lens laser projector
At 9800 lumens with 4K and HDR compatibility, the ZU920TST features a dust-resistant IP5X certified optical engine for 24/7 operation capabilities, offering true maintenance-free projection for up to 30,000 hours of powerful performance in Eco mode. Other features include a motorised zoom, full motorised lens shift and built-in dual 10W speakers.

High brightness, colour precision and quiet operation, along with a short throw lens make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as short throw digital signage, edge-blending and projection mapping, simulation and immersive installations.

The added control flexibility of HDBaseT and LAN make this projector an affordable install and forget solution.

Features

  • 9800 lumen DuraCore laser projector
    Ultra bright for immersive installations
  • Full motorised lens shift
    Ideal for a simple set up
  • Large zoom range
    Motorised zoom expands placement opportunities
  • Long life
    Delivers 30,000 hours of virtually maintenance-free operation



Constant brightness

Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuruing constant brightness for fine tune installations

Constant power

Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere inbetween


DuraCore

Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.


Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.



HDBaseT™

Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.


Full lens shift

Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.


360 projection*

Images can be projected over a 360° range* along the projector’s horizontal axis.

*For more information please refer to the user manual


Telnet

This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.



IP5X Dust resistant optical engine

Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.

PJLink

PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

Integrated warping and edge blending processor

Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.

*Compatible multi output graphics card with overlap function is required.



Wired remote

The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.


HDR compatible

Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.

Four corner correction

Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for uneven walls or where projector placement is awkward and needs to be installed at an angle.



Portrait projection

Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.


LAN Control

The RJ45 port provides additional network controllability. Crestron RoomView, Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols are fully supported, allowing for any flexible networking solution.



Specifications

Display/image

  • Display technology     DLP
  • Resolution     WUXGA (1920x1200)
  • Brightness     9,800 lumens
  • Contrast ratio     3,000,000:1
  • Native aspect ratio     16:10
  • Aspect ratio - compatible     4:3,16:9,16:10
  • Keystone correction - horizontal     30°
  • Keystone correction - vertical     30°
  • Uniformity     95%
  • Screen size     1.27m ~ 7.62m (50" ~ 300") diagonal

Lamp info

  • Light source type     DuraCore Laser
  • LASER life     30,000 hours

Optical

  • Throw ratio     0.65:1 ~ 0.75:1
  • Projection distance     0.7m - 16.6m
  • Zoom     1.15
  • Zoom type     Motorised
  • Focal length     9.69~11.19
  • Lens shift     Vertical: +/-110%, Horizontal: +/-50%
  • Native offset     50%
  • Lens shift     Yes - see product downloads for more information

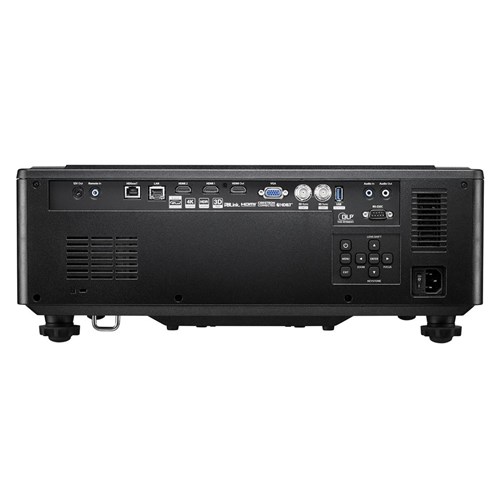

Connectivity

  • Connections
    • Inputs 1 x HDBaseT, 1 x HDMI 2.0, 1 x HDMI 2.0, 1 x VGA, 1 x 3D sync, 1 x Audio 3.5mm
    • Outputs 1 x HDMI 2.0, 1 x 3D sync, 1 x USB-A power 1.5A, 1 x Audio 3.5mm
    • Control 1 x 12V trigger, 1 x Wired remote, 1 x RJ45, 1 x RS232
  • LAN - wireless networking     No

General

  • Noise level (min)     36dB
  • Noise level (max)     38dB
  • Security     Security bar, Kensington Lock
  • IP rating     IP5X
  • 24/7 operation     Yes
  • 360° operation     Yes

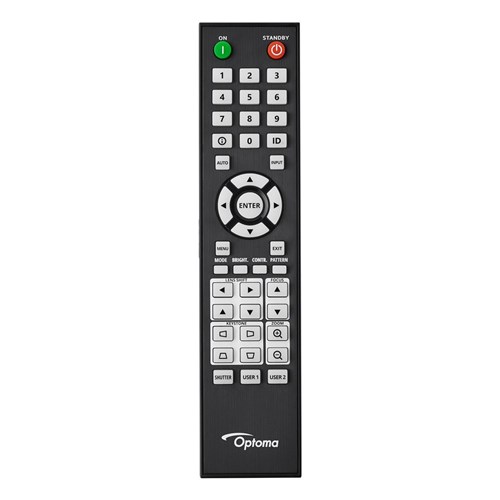

  • Remote control     Backlit ProAV remote
  • Speaker count     2
  • Watts per speaker     10W

Networking

  • LAN - control    Yes
  • LAN - wireless networking    No
  • LAN    Yes

Power

  • Power supply     AC 90 – 264V 50/60 Hz
  • Power consumption (min)     265W
  • Power consumption (max)     520W

Weight and dimensions

  • Dimensions (W x D x H)     480 x 376 x 144
  • Gross weight     17.5 kg
  • Net weight     14 kg
