Wyrestorm Rx-70-4K Hdbaset RX704K Wyrestorm

Product Code: WY-RX704K

Brand
Wyrestorm
RRP $679.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type AV matrixes
  • Details
  • Downloads
  • Where to Buy
  • Ordering

HDBaseT™ 4K UHD Receiver (4K: 70m/230ft | 1080p: 100m/328ft)

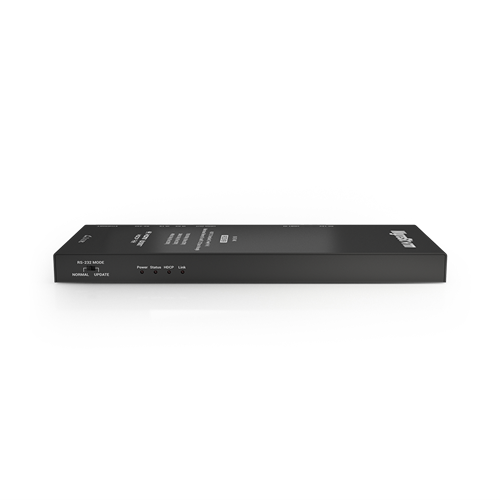

RX-70-4K

The perfect complement to a WyreStorm HDBaseT matrix system, presentation switch or in-wall transmitter solution, the RX-70-4K ultra slim display receiver supports 4K UHD video with HDR up to 70m/230ft and 1080p to 100m/328ft.

CLASS A HDBASET™
Receives HDMI transmissions of 4K up to 70m/230ft and 1080p up to 100m/328ft with multi-channel audio, control, ethernet and PoH.

CONTROL OPTIONS
Supports 3 methods of control pass-through. Being a pure-HDBaseT™ device, the RX-70-4K can handle bi-directional IR, RS-232 and even CEC routing when used as part of a compatible WyreStorm matrix or extender system.

DISCREET INSTALLATION
Low Profile chassis height of just 18mm / 0.7” for greater installation convenience behind the even slimmest wall mounts.

2-WAY POH
The RX-70-4K can either be powered by a PoH-compatible matrix or presentation switcher or it can itself deliver power to a transmission device such as the WyreStorm In-wall HDBaseT™ Transmitters.


Features

  • Low profile chassis of 18mm/0.7” for easier, more convenient installations behind screens at display zones
  • Transmits discrete wide-band bidirectional IR control signal/routed serial commands (from compatible matrix) together within the HDMI signal over a single Cat5e/6
  • Robust Class A HDBaseT technology for stable 4K/HD distribution and control resistant to electrostatic and environmental interference compared to conventional UTP transmission
  • Distribution of video (4K & 1080p), multichannel audio, bidirectional IR, PoH and 10/100 Ethernet over single Cat5e/6
  • Multichannel audio supports 7.1 DTS Master HD and Dolby True HD
  • 2-way PoH (Power over HDBaseT) – Receiver draws power from matrix so no local power required at display location
  • HDMI v2.0 with HDCP 2.2
  • Full 3D compatibility up to 1080p
  • Switchable RS-232 selection for firmware update
  • Power options – additional phoenix port and threaded DC for use of both standard and locking DC power plugs
  • Visual LED indication for power supply, signal status to show display connection, HDCP in signal and Link between HDBaseT devices
  • Automatically adjusts feedback, equalization and amplification of signal
  • Energy efficient universal power supplies included
  • Mounting brackets and IR connections included

SPECIFICATIONS

Audio and Video
  • Inputs: 1x HDBT In 8-pin RJ-45 female
  • Outputs: 1x HDMI 19-pin type A
  • Audio Formats: 2ch PCM | Up to DTS-X and Dolby Atmos
  • Video Resolutions (Max)
    • HDMI
      • 1920x1080p @60Hz 48bit (15m/50ft)
      • 3840x2160p @30Hz 4:4:4 24bit (7m/23ft) | @24Hz 4:2:0 HDR 10bit per channel (3m/9.8ft)
      • 4096x2160p @60Hz 24bit 4:2:0 (7m/23ft)
    • Using Cat6
      • 1920x1080p @24/25/30/60Hz 36bit (100m/328ft)
      • 3840x2160p @30Hz 4:4:4 24bit (70m/230ft) | @24Hz 4:2:0 HDR 10bit per channel (70m/230ft)
      • 4096x2160p @60Hz 4:2:0 24bit (70m/230ft)
    • Using Cat6a/7
      • 1920x1080p @24/25/30/60Hz 48bit (100m/328ft)
      • 3840x2160p @30Hz 4:4:4 24bit (100m/328ft) | @24Hz 4:2:0 HDR 10bit per channel (100m/328ft))
      • 4096x2160p @60Hz 4:2:0 24bit (100m/230ft)
  • Color Depth (Max): 1080p: 48bit | 4K UHD: 24bit | HDR @24p: 10bit per channel BT.2020
  • Maximum Pixel Clock: 297mHz
Communication and Control
  • HDMI: HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
  • HDBaseT™: HDCP 2.2 | EDID | 2-way PoH | Bidirectional IR, RS-232, and Ethernet
  • Ethernet: 1x 8-pin RJ-45 female | 10/100 Mbps auto-negotiating | Bidirectional over HDBaseT™
  • IR:
    • 1x IR TX 3.5mm (1/8in) TS Mono | Bidirectional over HDBaseT™
    • 1x IR RX 3.5mm (1/8in) TRS Stereo | Bidirectional over HDBaseT™
  • RS-232: 1x 3-pin Phoenix Connector | Bidirectional over HDBaseT™
Power
  • Power Supply: 12V DC 2A
  • PoH: 48V 15.4W
  • Max Power Consumption: 7.2W
Environmental
  • Operating Temperature:
    • 32°F ~ 113°F (0°C ~ 45°C)
    • 10% ~ 90%, non-condensing
  • Storage Temperature:
    • -4°F to ~ 158°F (-20°C ~ +70°C)
    • 10% ~ 90%, non-condensing
  • Maximum BTU: 24.6 BTU/hr
Dimensions & Weight
  • Rack Units/Wall Box: 1U
  • Height: 18mm/0.71in
  • Width: 232mm/9.14in
  • Depth: 93mm/3.67in
  • Weight: 0.5kg/1.1lbs
Regulatory
  • Safety and Emission: CE | FCC | ROHS
