Wyrestorm Nhd 600 Rx NHD600RX Wyrestorm

Product Code: WY-NHD600RX

Brand
Wyrestorm
RRP $3,069.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type AV over IP
  • Details
  • Downloads
  • Where to Buy
  • Ordering

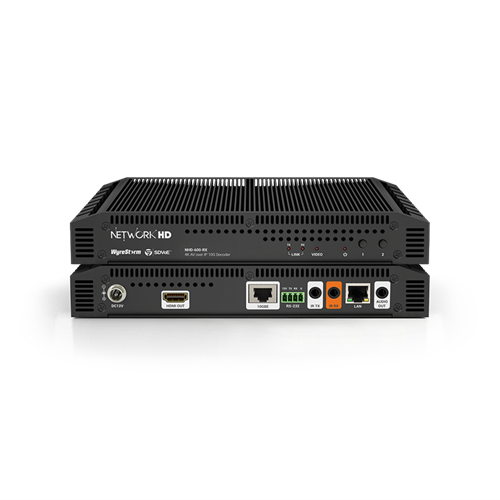

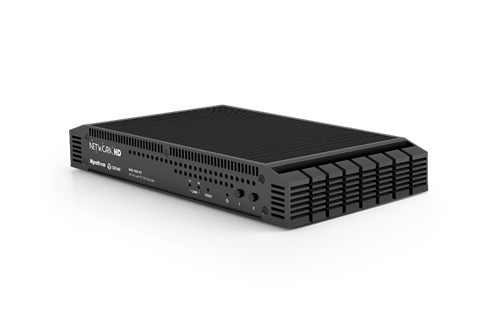

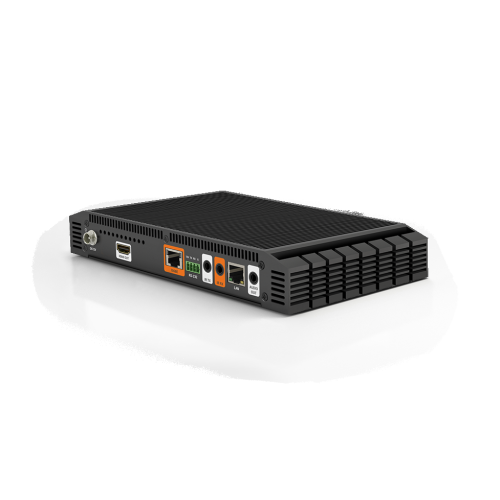

NetworkHD™ 600 Series 4K HDR Premium AV over IP SDVoE Decoder

NHD-600-RX
The NetworkHD Premium AV over IP SDVoE Encoder offers the ultimate AV over IP platform. Supporting highly scalable, high-bandwidth, secure video content alongside multi-channel audio and a plethora of connectivity and control options the 10GbE system is easily managed in a flexible, unified software environment.

Utilizing the SDVoE technology standard, truly lossless and latency-free video distribution can be achieved over IP networks.

4K 60 4:4:4 SUPPORT
The pinnacle of video distribution quality, NetworkHD 600 Series is powered by SDVoE technology to support even the most bandwidth-intensive video content to the tune of 4K at 60fps 4:4:4 up to a pixel clock of 595MHz.

POWERFUL ROUTING ENGINE
A true connectivity powerhouse, the 600 Series boasts discrete RS-232 and infrared routing, a secondary audio channel and distribution of a separate 1GbE connection, with the added ability to independently route, embed and de-embed up to three separate audio streams.

ULTRA FAST SEAMLESS SWITCHING
600 Series frame buffer technology ensures switch command speeds of <100ms, with the video output remaining synchronized to the display during a switch to remove black images or stutter for seamless transition between video sources and modes.

ZERO LATENCY
Eliminating source-to-display time difference with a GenLock latency of zero frames, the 600 Series delivers content via a flexible, modular IP network, including a number of desirable attributes used in live AV broadcast sectors.



Features

  • Highly scalable deployment utilizing multicast IP streams can achieve I/O numbers unthinkable by traditional fixed matrix alternatives
  • Supports 4K UHD and DCI resolutions at upto 60fps RGB or YUV 4:4:4
  • HDCP 2.2 and HDCP 1.x support
  • Powerful video scaling can match a connected display to the video source, leaving the original source content unaltered
  • Video resolution, framerate and color space conversion
  • Genlock scaler mode for zero end-to-end latency
  • Supports ultra-fast, seamless AV source switching
  • Secondary video stream with alternate scaling options can be used for MultiView source content using NHD-600-TX
  • Fully-featured MultiView image compositing includes arbitrary source window placement, resizing, image duplication and image offset functions
  • Video wall functionality, including display bezel compensation
  • Audio capability for transport of multichannel audio, including Dolby Atmos™ and DTS:X
  • Audio breakaway function allows the decoder to output one of three choices from any encoder on the network for use as the HDMI audio output
  • Analog audio port can be configured to de-embed audio from the HDMI output or link to a separate audio stream from any encoder
  • Multichannel PCM digital audio downmix supported
  • Display EDID capture
  • Bidirectional IP to Infrared / RS-232 functionality via the API or 3rd-party drivers
  • Auxilliary 1GbE Ethernet channel for network connectivity of attached display devices
  • Powerful matrix functionality includes routing control of all audio, video, RS-232 and IR signals
  • Exclusive, ingenious passive chassis design eliminates fan noise and maintenance concerns while maintaining class-leading thermal cooling
  • Software configuration environment is uniform across the entire NetworkHD family, removing any learning curve across the different NetworkHD Series
  • 3rd-party control systems integration drivers freely available from WyreStorm.com

SPECIFICATIONS

Audio and Video
  • Inputs: 1x 10GbE: 8-pin RJ-45 Female
  • Outputs:
    • 1x HDMI Out: 19-pin type A
    • 1x Audio Out: 3.5mm (1/8in) TRS Stereo
  • Audio Formats: 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
  • Output Video Encoding: SDVoE
  • Encoding Data Rate: Max: 10Gb/s
  • End to End Latency (Max):
    • Genlock Mode: Uncompressed = 30us, Compressed <120us
    • Fast Switch Mode: 1~2 video frames = min. between 16.7 – 33.4ms @ 60fps
  • Video Resolutions (Max):
    • 2160p @60Hz 8bit 4:4:4
    • 2160p @60Hz 12bit 4:2:2
  • Color Depth: 1080p: 12bit | 2160p: 12bit 4:2:2 / 8bit 4:4:4
  • Maximum Pixel Clock: 595 MHz
  • 3D: HDMI 1.4b 3D: TnB, SbS, F.P
Communication and Control
  • HDMI: HDMI | HDCP 2.2
  • Ethernet: 1x 10Gbe SDVoE: 8-pin RJ-45 Female 10GBaseT | 1x LAN: 8-pin RJ-45 female 1000BaseT
  • RS-232: 1x RS-232: 4-pin Phoenix Connector | 2 Way | Broadcast | Routed | API Programmable
  • IR:
    • 1x IR TX: 3.5mm (1/8in) TS Mono Jack | 2 Way | Broadcast | Routed | API Programmable
    • 1x IR RX: 3.5mm (1/8in) TRS Stereo Jack 2 Way | Broadcast | Routed | API Programmable
Power
  • Power Supply: 12V DC 3A
  • Max Power Consumption: TX: 15.24W | RX: 18.64W
Environmental
  • Operating Temperature: +32°F ~ +104°F (0°C ~ +45°C) | 10% ~ 90% non-condensing
  • StorageTemperature: -4°F to ~ 140°F (-20°C ~ +70°C) | 10% ~ 90% non-condensing
  • Maximum BTU: TX: 52 BTU/hr | RX: 63.6 BTU/hr
Dimensions & Weight
  • Rack Units/Wall Box: <1U
  • Height With | Without Feet: 45mm/1.78in | 35mm/1.38in
  • Width With | Without Feet: 263.6mm/10.38in | 230mm/9.06in
  • Depth With | Without Handles: 139mm/5.48in
  • Weight: 1.52kg/3.34lbs
Regulatory
  • Safety and Emission CE | FCC | RoHS
