JTS Professional Microphones

UF-20TB transmitter 624-694MHz belt-pack inc CM-501 lapel mic for UF-20 system

Product Code: JP-UF20TBB9

Brand
JTS Professional
RRP $649.00


Quantity In Cart:
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
No refurbished products
1 Year
Technical Specifications
Brands JTS Professional Microphones
Microphone Type Transmitter
  • Details
  • Downloads
  • Where to Buy
  • Ordering

JP-UF20TBB9

UF-20TB transmitter 624-694MHz belt-pack inc CM-501 lapel mic for UF-20 system

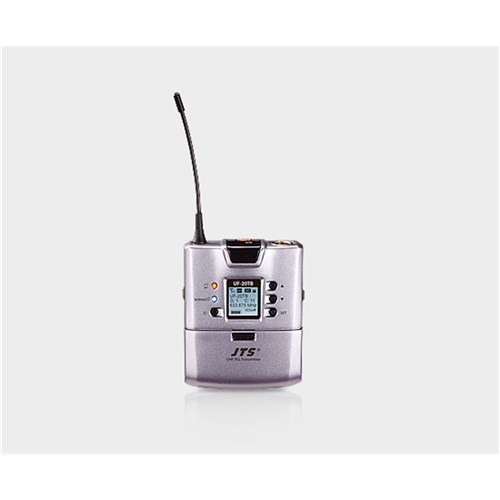

UF-20TB

  • 2400 to 3000 selectable frequencies
  • Preset 15 groups each of up to 63 compatible channels
  • Phase-Locked Loop (PLL) synthesized tune
  • Extended dynamic range and smooth frequency response.
  • Adjustable transmission power between Low and High
  • The panel Lock-On function prevents tampering and RF interruption
  • Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.

NEWEST FEATURE:

  • It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.


SPECIFICATIONS

Frequency Preparation

  • PLL Synthesized Control

Carrier Frequency Range

  • UHF 624-694MHz

Bandwidth

  • 60~75MHz Wideband

RF Outputs

  • Low / High

Stability

  • < ±10KHz

Frequency Deviation

  • ± 48KHz (Peak)

Chassis

  • Aluminium alloy

LCD Display

  • Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust

Controls

  • Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

Output Connector

  • 4P Mini XLR

Spurious Emissions

  • <-50 DBC

Audio Frequency Response

  • 50Hz ~ 18k Hz

Battery

  • AA NiMH x2

Dimensions

  • 62mm (W) x80.3mm (H) x22.6mm (D)

Weight

  • 93g

Notes

  • Actual product specifications may vary depending on model and region.

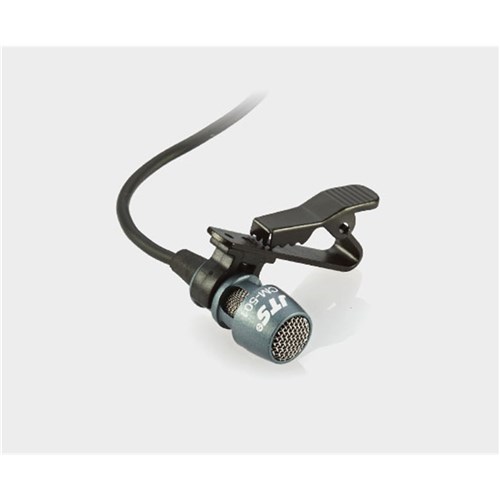

CM-501

  • Uni-direction for high-quality voice pick-up.
  • Wide dynamic range and frequency response for excellent sound reinforcement.
  • Small size for minimum visibility.
  • Together with clip for easy attaching to a tie, lapel, dress etc.

SPECIFICATIONS

Connector

  • 4P Mini XLR

Frequency Response

  • 100~15,000 Hz

Polar Pattern

  • Cardioid

Sensitivity (at 1KHz)

  • -60±3 dB* (1mV)*0dB=1V/μbar

Impedance

  • 2.2kΩ

Max. SPL for 1% THD

  • 130dB

Dimension(mm)

  • Ø10.1mm(W)* 26.4mm(H)

Net Weight

  • 21.5g
