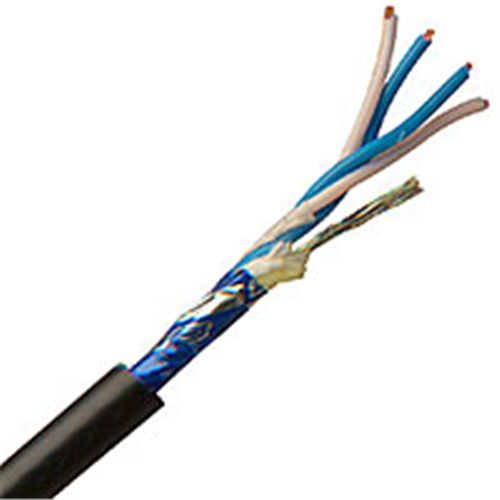

STAR QUAD, FOIL SHIELD, 5.0MM O.D., BLACK, 200M ROLL

Product Code: CA-L-4E5AT-BK200

Brand
Canare
RRP $476.00


Quantity In Cart:
Unit of Measure
EACH



1 Year
Technical Specifications
Brands Canare
Bulk Cable Type Star Quad
  • Details
  • Downloads
  • Where to Buy
  • Ordering
L-4E6AT
A 20 AWG Star Quad cable specifically designed for point to point wiring in fixed installations. Aluminum Foil Shielding provides 100% coverage. Slick, easy to pull PVC Jacket with internal Dupont Kevlar 29 cable filler, stronger than steel, can resist stretching or kinking of wires when pulled through conduit bends. Foil shield & drain wire strips easily for quick assembly work (1/3 the assembly time of braided shields). Irradiated PE conductor insulation resists solder iron meltdown.
L-4E5AT
A 22 AWG nallow profile Star Quad audio cable with the same shield, drain wire and Kevlar construction style as L-4E6AT.
Microphones.
Permanent Installations.
Audio Rack Wiring.
PA Systems.
Aluminium Foil Shield,  100% coverage.
Built in Dupont® Kevlar 29.
Drain Wire.
Cross Linked PE Insulation.
Reduced Handling Noise.
Rejects EMI and RFI.
The Star Quad Story (Catalog PDF)
MECHANICAL SPECIFICATIONS
Model Std.
Lng.


ft.
(m)
Wt
Std.
Lng.

lbs
(kgs)
Nom.
O.D.


in.
(mm)
Jacket
Nom.
Thick.

in.
(mm)
Brittle
Point



(C°)
No.
of
Cond.
Insul.

Type*
Thick
mil
Cond-AWG
(Qty./mil)
Cross Sec.
Area
mil.²
**Quad
AWG
Pitch
Twist
Quad

in.
(mm)
Shield
Cover-
age
L-4E6AT 656
(200)
23
(10)
.244
(6.20)
PVC
.047
(1.20)
-22
(-30)
4
2 Blue
2 Wht
IPE
15.7
AC - #23
12/7.09
481
#20
.99
(25)
100%
Alum.
Tape
L-4E5AT 656
(200)
16
(7)
.197
(5.00)
PVC
.039
(1.03)
-22
(-30)
4
2 Blue
2Wht
IPE
12.6
AC - #25
16/4.73
279
#22
.83
(21)
100%
Alum
Tape
*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.

ELECTRICAL PERFORMANCE/QUAD
Model Cond.
D.C.R.

ohm/1000ft
(ohm/100m)
Shield
D.C.R.

ohm/1000ft
(ohm/100m)
Nom.
Cap.
***
 pF/m
Nom.
Cap.

 pF/m
Nom.
Imp.

(ohm)
Nom.
Atten.

V/1000ft
(V/100m)
Group
Delay
Time
nS/ft
(nS/m)
L-4E6AT <19.4
(<6.4)
- 150 210 37 0.6
(0.2)
1.68
(5.5)
L-4E5AT <32.7
(<10.7)
- 164 222 37 0.9
(0.3)
1.71
(5.6)
***Capacitance between twin Blue and twin White conductors.
†Capacitance between conductors to shield.
COLORS AVAILABLE
Model Black Blue Brown Gray Green Orange Purple Red White Yellow
L-4E6AT [+] - - - - [o] - - - - - - - - - - - -
L-4E5AT [+] - - - - [o] - - - - - - - - - - - -
[+]=Standard Color, [o]=Available Color, "- -"=n/a
