Stage Pro Port PA & 1 X UHF RX Band 6 +built in Bluetooth DPR-500M built in

Product Code: CH-STPRO-UDB-6

Brand
Chiayo
RRP $1,869.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands Chiayo Electronics
Microphone Type Portable PA
  • Details
  • Downloads
  • Where to Buy
  • Ordering

STAGE PRO
Portable Wireless Mixer PA System

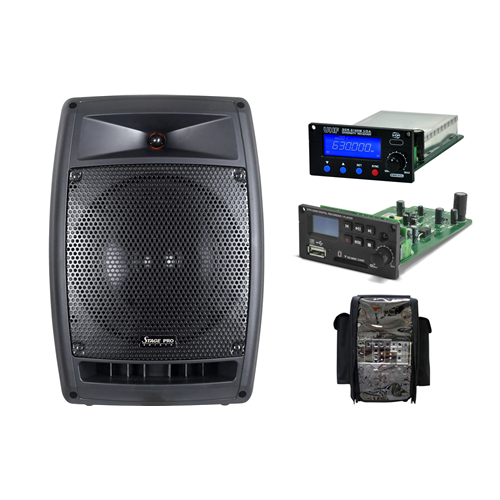

1x Stagepro 200W Portable PA with 8 inch 2 way speaker
1 X SDR8200M-6 true diversity (650-675 Mhz) UHF receiver + w/bluetooth built in
1x DPR-500M record/player w/ USB/SD + remote.
1x DC35 dustcover included

STAGE PRO provides four module slots for installing receiver, transmitting and MP3 recorder player modules. It can playback music by pairing the smartphone with the integrated Bluetooth receiver. Audio inputs include 3.5Ø, RCA and two 6.3Ø instrument jacks with independently adjustable volume. Audio outputs to an external amplifier or recorder via the 6.3Ø or RCA jacks, or to an external active speaker via the XLR jack. Its versatile and considerate design successfully combines sound and functionality.

Exceptional listening experience
Built-in 200W class-D power amplifier drives 8” woofer and 1” tweeter and easily satisfies the amplification requirement of large events with a 500-1000 crowd.It can also connect to CHIAYO 12" subwoofer, bringing an unprecedented quality sound experience.

Multiple musical sensations
Volume and treble, meddle and bass equalizers specific to music, adding a variety of sound controls based on user's need.

Loudness compensation
Loudness compensation automatically boosts high and low sound frequencies. Even at low volume levels, you can clearly hear the treble and bass effects and enjoy the most natural sound playback.

Show personal unique sound
Adjustable treble, bass effects and echo for wired and wireless microphones. Echo can be enabled/disabled as required.


Specifications

  • Model    STAGE PRO
  • Max power output    200W, 4Ω load (class-D)
  • Speaker system    8"LF + 1"HF & electronic crossover
  • Frequency response    50Hz-20KHz±3dB
  • T.H.D.    < 0.5%
  • Audio input    MIC in x2 (Ø6.3mm/XLR COMBO)
  • LINE in x2 (RCA L/R, Ø3.5mm)
  • Instrument in x2 (Ø6.3mm)DIGITAL in (USB)
  • BLUETOOTH in
  • Audio output    LINE out (RCA L/R)
  • ACTIVE out (XLR)
  • Power supply    100-240V AC, 30-32V DC / 4A
  • Battery    Lead-Acid (12V / 5Ah) x2 or
  • Lithium (25.9V / 7.8Ah) x1
  • Operating time    Lead-Acid: 5-6 hours in music, >10 hours in speech;
  • Lithium: 8-10 hours in music, >12 hours in speech
  • Charging time    Lead-Acid: about 6 hours;
  • Lithium: about 8 hours
  • Dimensions (mm)    290 x 250 x 424
  • Weight (kg)    Lead-Acid: 12.5;
  • Lithium: 9.5
