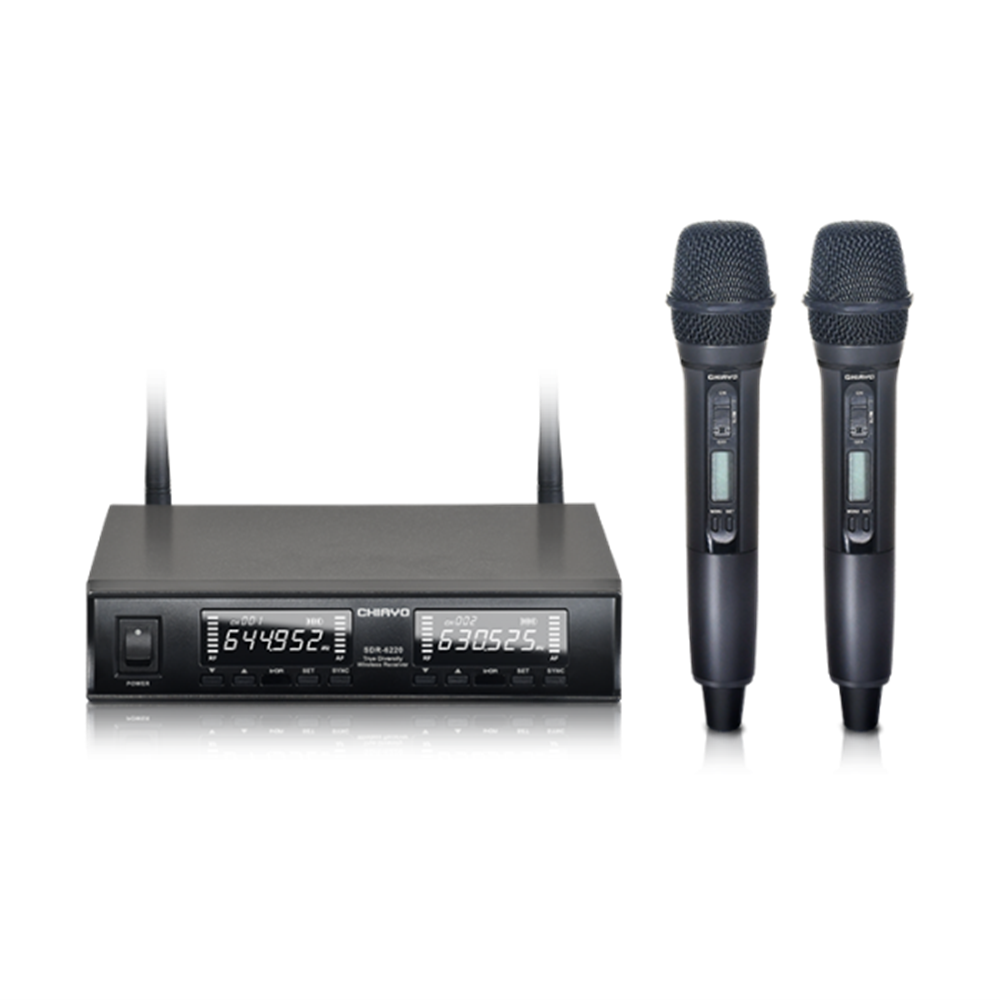

CW6220HHCP Dual Channel UHF True Diversity Kit

Brand
Chiayo
RRP $1,319.00


Quantity In Cart: 0
Unit of Measure
EACH



Kit Components
Code
Item
Qty
CH-SDR6220-5A
2 Ch UHF Dual 100 channel true diversity receiver Chiayo
1.0
CH-SQ6100C-5A
SQ6100C 100 channel hand held transmitter, metal case condenser capsule.
2.0
Product Options
Technical Specifications
Brands Chiayo Electronics
Microphone Type Wireless Systems

SDR6220 receiver with 2 x SQ6100C Premium hand held transmitters with condenser capsules.



SDR-6220 IrDA
UHF 1/2 19" Dual-Channel 2-Way Sync True Diversity Receiver

SDR-6220 IrDA is a professional wireless microphone system with stylish contour and useful functions. The built-in channel-scanning works with the industry-leading IrDA® 2-way channel synchronizing technology to rapidly complete setting of non-interference channels. High contrast LCD on the front panel displays antenna selection status and setting details, as well as monitoring the battery status and input volume of the connected transmitter to ensure the best sound quality. Easily complies with school, conference, karaoke and public broadcasting requirements.


2-way channel synchronization

Patented in multiple countries and the world's first IrDA® two-way channel synchronization technology. After selecting a clean channel on the transmitter or receiver, a single button will quickly synchronize both units. 100 preset channels available for selection.


True diversity reception

With the most advanced true diversity reception, it provides quality performance with high-stability reception and no dropouts even over long distances.


No more noise

Proprietary pilotone, noise-detector and squelch circuits prevent noise interference. Adjustable SQ to increase receiver range with higher sensitivity and reduce interference with lower sensitivity.


Real-time display

High contrast LCD on the front panel displays antenna selection status and setting details, as well as monitoring the battery status and input volume of the connected transmitter for the audio engineer to handle and ensure the best sound quality.


  • Model:    SDR-6220 IrDA
  • Chassis:    EIA standard 19" metal 1/2U
  • Receiving mode:    True diversity
  • Frequency range:
    • 5A: UHF 520-526MHZ
    • 5B: UHF 566-590MHZ
    • 6: UHF 650-675MHZ
  • Bandwidth:    25 MHz
  • Channel:    Dual
  • Preset frequencies:    100
  • Channel sync:    2-way (RX ⇔ TX)
  • Frequency response:    50 Hz - 18 KHz
  • Peak deviation:    ± 40 KHz
  • Sensitivity:    S/N > 80 dBm at 10 dBμV
  • S/N ratio:    > 110 dB(A)
  • T.H.D.:    < 0.5% @ 1 KHz
  • Receiving antenna:    Detachable at rear-end, TNC female.
  • Oscillation:    PLL synthesized, frequency stability ± 0.005% (-10 - +60°C)
  • Squelch:    Pilotone & Noise-cancelling dual-squelch circuit
  • Audio connector:    Balanced XLR and unbalanced Ø6.3mm
  • Audio Output Adjustment:    Gain control circuit for adjustment of output volume
  • Output level switch:    MIC-LINE
  • Power supply:    12V DC / 1.0A
  • Dimensions (mm):    200 × 150 × 44
  • Weight (kg):    0.73


SQ6100C

Features

  • factory preset user-selectable UHF frequencies
    • 5A: 520-526MHZ
    • 5B: 566-590MHZ
    • 6: 650-675MHZ
  • ±40 KHz peak deviation.
  • Pilotone Control.
  • Very low spurious emission passed the stringent CE & FCC regulations.
  • Changeable dynamic or condenser microphone capsule.
  • No handling noise in handheld with condenser capsule.
  • Handheld housing coated with rubberized paint for smooth holding.
  • Low current consumption.
  • Up to 16 hours of operation with 2 AA Alkaline batteries.
  • Color ring on handheld microphone identifies channel.
  • FCC and CE approved.
  • Matching battery charger: HC-30
