  • JBL Synthesis - 4 x 600W Amp Class D Power Amplifier Bridgable to 1200W SDA 4600

JBL Synthesis - 4 x 600W Amp Class D Power Amplifier Bridgable to 1200W SDA 4600

Product Code: JB-SYNSDA4600

Brand
JBL
RRP $9,499.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands JBL
Amp power 600W
Amplifier Type Power Amp
Channel count 4
Series Synthesis

SDA-4600


4-channel Bridgeable Class D Amplifier

The SDA-4600 is a versatile 4-channel Class D power amplifier designed to deliver maximum power while taking up minimal rack space. Each channel is rated to deliver 600W into 8 ohms and adjacent channel pairs can be bridged to deliver 1,200W into 8 ohms. This flexible channel configuration makes this an ideal amplifier to power larger LCRs and subwoofers in JBL Synthesis immersive audio systems. Powerful built-in DSP allows for custom loudspeaker tuning and full external control allows for complete and easy system integration.

SPECIFICATIONS

General Specifications

  • Cooling
    • Continuously variable speed forced air, front to back airflow
  • Maximum Fan Noise (dBA SPL @ 1M)
    • 45
  • Required AC Mains (±10%)
    • 100Vrms - 240Vrms ~50/60Hz

Audio Specifications

  • Rated Output Power Into 8 Ohms: 600W
  • Rated Output Power Into 4 Ohms: 600W
  • Rated Output Power Into 2 Ohms: 300W
  • Bridged Output Power Into 8 Ohms: 1200W
  • High Impedance: 70-Volt & 100-Volt Capable
  • Frequency Response (8Ω, 20Hz - 20kHz): ±0.25dB
  • Analog Input Signal to Noise Ratio: 104 dB
  • BLU link Input Signal to Noise Ratio (A-Weighted): >108dB
  • Total Harmonic Distortion (at full rated power, 20Hz - 20kHz): 0.35%
  • Damping Factor (20Hz to100Hz): >1000
  • Input Impedance (nominal balanced, unbalanced): 10kΩ, 5kΩ
  • Maximum Input Level before Compression (Low Gain Mode); (+)20dB: Yes
  • Load Impedance Stereo/Dual Mode: 2Ω - 16Ω; 70Vrms and 100Vrms
  • Load Impedance Bridge Mono: 4Ω - 16Ω; 140Vrms and 200Vrms

Dimensions

  • Width: 19 in. (48.3 cm)
  • Height: 3.5 in. (8.9 cm)
  • Depth: 14.25 in. ( 35.63 cm)
  • Weight: 20.1lbs (9.12kg)

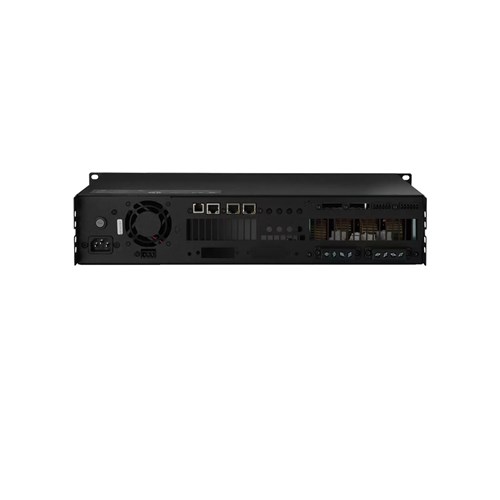

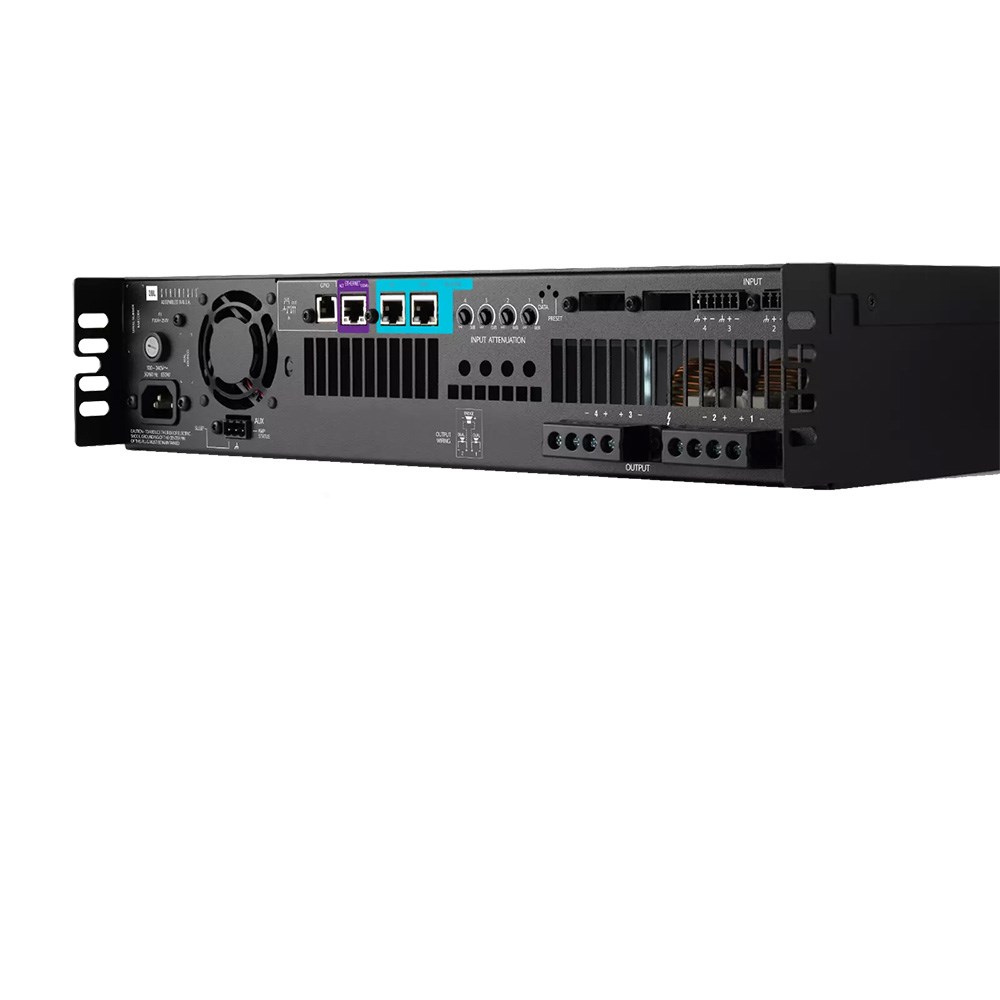

Control and Connection Specifications

  • Four balanced line inputs: 6-pin block connectors (Two channels per block connector)
  • Four speaker level outputs: Terminal strip (accepts up to 10AWG wire)
  • BLU link Input/Output: RJ-45 (Category 5e)
  • Ethernet: RJ-45 (Category 5e)
  • Programmable General Purpose Input/Output Ports: 3-pin block connector (Enables SLEEP mode and monitoring of AMP STATUS)
  • Power Connector: 15A IEC
