RTI VIDEO CONFERENCING AND ROOM COLLABORATION SYSTEM

Product Code: RT-VXU-SC

Brand
RTI
RRP: POA


Quantity In Cart:
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
No refurbished products
3 Year
Technical Specifications
Brands RTI
  • Details
  • Downloads
  • Where to Buy
  • Ordering

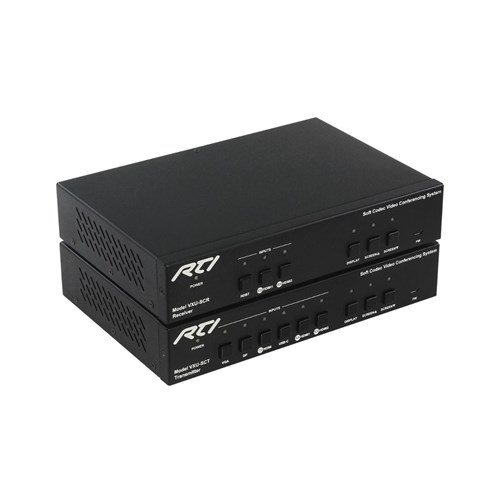

VXU-SC Video Conferencing & Collaboration System

The VXU-SC Video Conferencing & Collaboration System is the perfect solution for simple, cost-effective media sharing and collaboration in classrooms and meeting spaces. The transmitter and receiver pair, provide AV switching, video and USB extension, allowing multiple users to easily interact with software-based conferencing solutions such as Zoom®, Microsoft Teams®, Microsoft Skype®, Cisco WebEx® and Citrix GoToMeeting®.

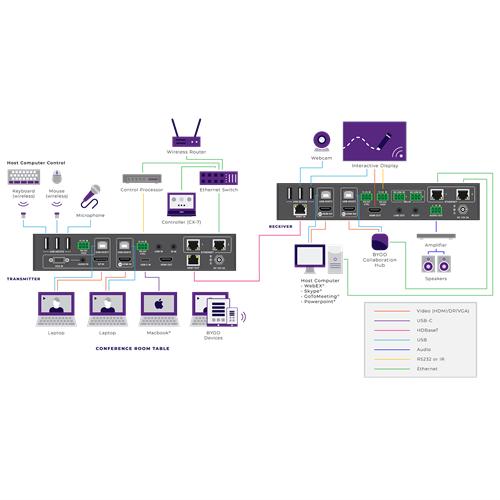

The VXU-SC transmitter is equipped with HDMI, Display Port, VGA and USB-C inputs, enabling a wide range of devices to share video content. Built-in USB inputs allow shared mouse and keyboard control from all connected devices including PCs, laptops, and interactive displays. The kit also extends USB, allowing inexpensive USB webcams and microphones to be utilized. To eliminate cable clutter, all audio, video, data, control, USB, and Ethernet transmission between the VXU-SC transmitter and receiver is carried over a single HDBaseT link up to 328 feet (100 meters).

Included in the box:

VXU-SCT (Transmitter), mounting ears (2) with screws for transmitter, plastic cushions (4) for transmitter, 3-Pin to 2-Pin optocoupled IR adapter cable (1), power adaptor 12VDC 2A (1), Phoenix connectors (2)

VXU-SCR (Receiver), mounting ears (2) with screws for receiver, plastic cushions (4) for receiver, power adaptor 12VDC 2A (1), Phoenix connectors (5)

Features

  • HDMI 2.0 with 4k@60Hz 4:2:0 and HDCP 2.2 compliance.
  • HDBaseT connection between transmitter and receiver. Up to 328ft(100m) at 1080p or 295ft(90m) at 4K
  • VGA input supports video up to 1920x1200@60Hz.
  • Provides switching between a variety of video formats to simplify meeting room device management.
  • Built-in USB hubs enable easy connection of devices including keyboards, microphone, speakers, cameras and whiteboards.
  • Automatically detects active inputs when sources are connected.
  • LAN connection to receiver or transmitter provides network access to users.
  • Connected displays can be controlled via CEC commands or front panel buttons.
  • Relays can be triggered to control devices e.g., projection screen.
  • Support for RS-232 and IR pass through from both the receiver and transmitter.
  • De-embedded audio out on VXU-SCR receiver.
  • Controllable via front panel buttons, RS-232, GUI, or OSD menu.
  • Small form factor allows for flexible mounting options (e.g., behind a wall-mount TV).

Specifications

VXU-SCT Transmitter

  • Power Supply (included):    Power adapter 12V/1.5A
  • Dimensions HxWxD:    8.66in(220mm) x 5.9in(150mm) x 1.65in(42mm)
  • Weight:    2.14lbs (970g)
  • Mounting:    Surface / Wall mount / Behind TV
  • Operating Temperature:    0 to +40 °C / +32 to +104°F
  • Operating Humidity:    5% to 95% Non-condensing
  • Video Inputs:    One HDMI, One Display Port, One USB-C, One VGA
  • USB Ports:    Two, USB-B Host for VGA/Display Port IN and HDMI IN
  • Audio Inputs:    One, Stereo Audio for VGA Source, 3.5mm jack One, Line Stereo, 3.5mm jack
  • Video Outputs:    One, HDMI
  • HDBaseT Outputs:    One, HDBaseT, up to 10.2 Gbps
  • HDBaseT Transmission Distance:
    • 1080P ≤ 328ft (100m)
    • 4K ≤ 295ft (90m)
  • Resolution Range HDMI/Display Port:    up to 4K@60Hz 4:2:0 / 4K@30Hz 4:4:4
  • Resolution Range VGA:    up to 1920x1200
  • Compliance:    HDCP 2.2
  • Ethernet Ports:    Two, 10/100Base-T, RJ45
  • Control Ports:
    • One, RS-232, 3-pin Phoenix
    • One, RS-232 Pass-through, 3-pin Phoenix
    • One, IR IN Pass-through, 3.5mm jack
  • Front Panel:    9 Buttons for Input selection and Display/Screen Control
  • Warranty:    Three Years (Parts & Labor)

VXU-SCR Receiver

  • Power Supply (included):    Power adapter 12V/1.5A
  • Dimensions HxWxD:    8.66in(220mm) x 5.9in(150mm) x 1.65in(42mm)
  • Weight:    2.09lbs (950g)
  • Mounting:    Surface / Wall mount / Behind TV
  • Operating Temperature:    0 to +40 °C / +32 to +104°F
  • Operating Humidity:    5% to 95% Non-condensing
  • Video Inputs:    Two, HDMI
  • HDBaseT Input:    One, HDBaseT, up to 10.2 Gbps
  • HDBaseT Transmission Distance:
    • 1080P ≤ 328ft (100m)
    • 4K ≤ 295ft (90m)
  • USB Ports:    Two, USB-B Host for HDMI IN Three, USB-A
  • Video Output:    One, HDMI
  • Resolution Range HDMI:    up to 4K@60Hz 4:2:0 / 4K@30Hz 4:4:4
  • Audio Outputs:    One, Line Stereo One, Stereo Audio de-embedded from HDMI OUT
  • Compliance:    HDCP 2.2
  • Ethernet Ports:    Two, 10/100Base-T, RJ45
  • Control Ports:
    • One, RS-232, 3-pin Phoenix
    • One, RS-232 Pass-through, 3-pin Phoenix
    • One, IR OUT Pass-through, 3.5mm jack
  • Relay Outputs:    Two, 30VDC/2A, 3-pin Phoenix
  • Front Panel:    6 Buttons for Input selection and Display/Screen Control
  • Warranty:    Three Years (Parts & Labor)
