RTI RECEIVER FOR VXP-82

Product Code: RT-VXP-R

Brand
RTI
RRP: POA


Quantity In Cart:
Unit of Measure
EACH



3 Year
Technical Specifications
Brands RTI
Input/output type HDMI
Product type Extenders
  • Details
  • Downloads
  • Where to Buy
  • Ordering

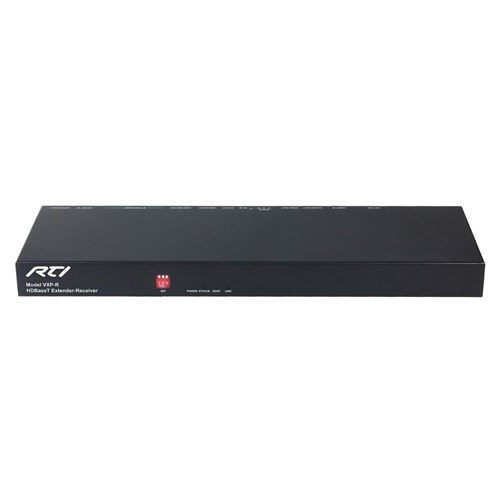

VXP-R HDBaseT Long Range Receiver

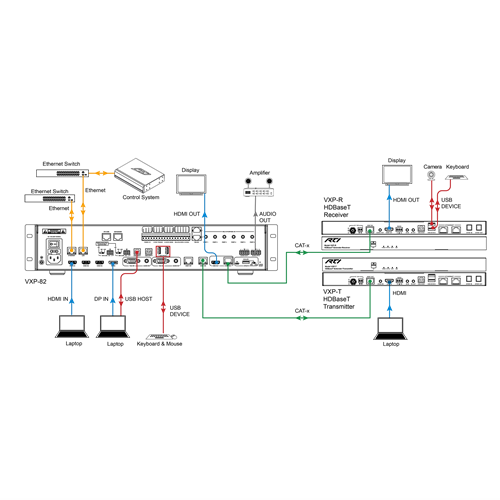

The VXP-R (receiver) is designed for use with the VXP-82 Presentation Switcher & Control Processor to extend high-resolution video, audio, Ethernet, control and KVM signals over long distances up to 492ft (150m) via a single Cat5e/Cat6 cable. In combination with the VXP-82 multiple video sources can be distributed to up to up to two displays.

Easy wiring and the high bandwidth capability of these Class B HDBaseT extenders make them ideal for any commercial or residential setting where video sources are installed in a central AV rack and TVs or presentation displays are distributed throughout multiple areas such as conference rooms, huddle spaces, restaurant dining rooms, or home media rooms.

The VXP-R receiver can also be used with the and VXP-T transmitter as stand-alone signal extension for point-to-point transmission.


Features

  • Support for audio, video, power, Ethernet, RS-232 and IR pass-through over HDBaseT.
  • Signal transmission up to 90m/300ft for 4K and 100m/330ft for 1080p via a Cat-5e cable, and up to 100m/330ft for 4K and 1080p via a single Cat-6/6a/7 cable.
  • Supports resolution up to 4K@60Hz 4:2:0 8bit and HDCP 2.2 when installed with VXP-T Transmitter.*
  • Analog stereo audio pass-through over HDBT.
  • S/PDIF digital audio pass-through over HDBT.
  • USB Host and Device ports with bi-directional USB pass-through for shared KVM control.
  • Built-in 10/100Mb Ethernet Switch.
  • Powered via PoH (Power over HDBaseT).
  • Phoenix port for additional power connection.
  • Support for standard and locking DC power plugs.
  • VXP-T and VXP-T are sold separately
  • * Note: Maximum resolution is 4K@30Hz when VXP-R is installed with VXP-82 All-in-One Presentation Switch.

Specifications

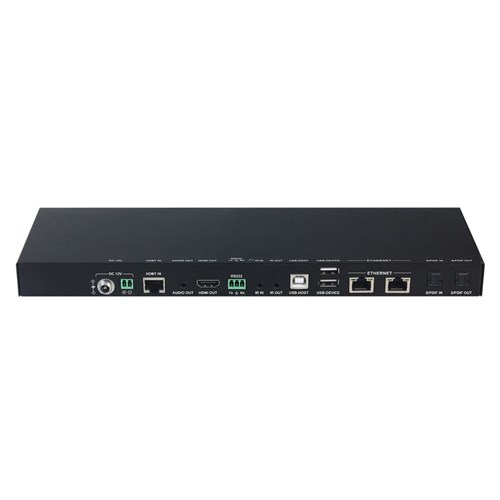

  • HDBaseT Input:    One, HDBaseT (PoH) (RJ45)
  • Video Output:    One HDMI
  • Audio:     One, Stereo Audio (1 x 3.5mm jack) One in, One Out, Digital Audio (S/PDIF)
  • Control Signal Ports:    One, IR in, 3.5mm jack, One IR out 3.5 mm jack One, RS-232 bidirectional, 3-pin Phoenix Connector
  • Ethernet:    Two, RJ45
  • USB Host:    One, USB Type B
  • USB Device:    Two, USB Type A
  • Input/Output Signal Type:    HDMI with 4K@60Hz 4:2:0 (or 4K@30Hz when connected with VXP-82), HDCP 2.2, HDBT
  • Compliance:    HDMI 2.0, HDCP 2.2
  • Input / Output Resolutions:    800 x 600@60Hz, 1024 x 768@60Hz, 1280 x 768@60Hz, 1280 x 800@60Hz, 1280 x 960@60Hz, 1280 x 1024@60Hz, 1360 x 768@60Hz, 1366 x 768@60Hz, 1440 x 900@60Hz, 1600 x 900@60Hz, 1600 x 1200@60Hz, 1680 x 1050@60Hz, 1920 x 1200@60Hz, 2048 x 1152@60Hz, 3840 x 2160@24Hz/25Hz/30Hz/50Hz*/60Hz*, 4096 x 2160 @24Hz/25Hz/30Hz/50Hz*/60Hz*, 1280 x 720P@50Hz/59.94Hz/60Hz, 1920 x 1080P@50Hz/59.94Hz/60Hz
  • Color Sampling:    4:4:4, 4:2:2, :2:0, Resolutions with an asterisk *: 4:2:0
  • Audio Formats:    HDMI: PCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X, Line In/Out: PCM2.0, S/PDIF In/Out: Up to PCM5.1
  • Max. Bandwidth:    10.2Gbit/s
  • Max. Pixel Clock:    297 MHz
  • HDBaseT Transmission Distance:    1080P@60Hz 3D, 4K@60Hz 4:2:0, 4K@30Hz 4:4:2 ≤330ft (100m) VXP-T and VXP-R used as stand-alone extender set: 1080p@60Hz ≤492ft (150m)
  • Control Method:    RS232 Pass through, IR Pass through, Ethernet Pass through, Bi-Directional USB
  • Power:    via PoE (Power over HDBaseT
  • Dimensions WxHxD:    12.08in(306.8mm) x 0.98in(25mm) x 3.89in(98.8mm)
  • Weight:    1.59 lbs (720g)
  • Weight:    F +32 to +113 degrees, C 0 to +45 degrees / 10% to 95% Non-condensing
  • Weight:    Three Years (Parts & Labor)
