RTI 8X8 4K60 4:4:4 HDBASET MATRIX

Product Code: RT-VX88-18G

Brand
RTI
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
Lifestyle - R
1
$5,252.15
Increase value Decrease value
Technical Specifications
Brands RTI
Input/output type HDMI
Product type AV matrixes

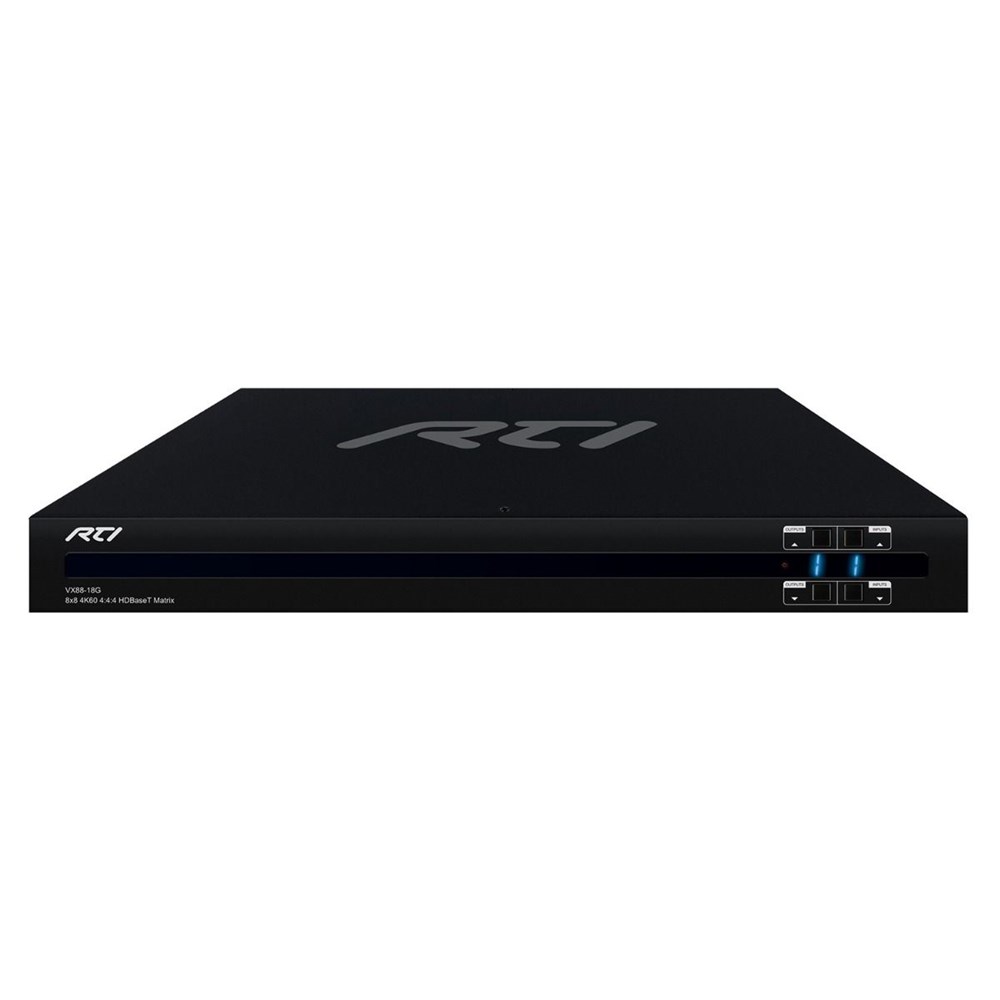

VX88-18G 8 x 8 4K HDBaseT™ Matrix Switcher

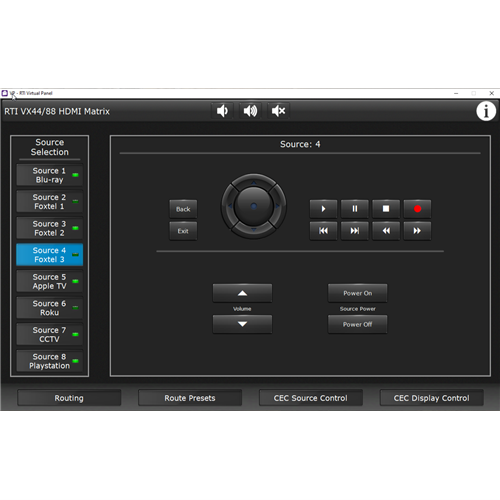

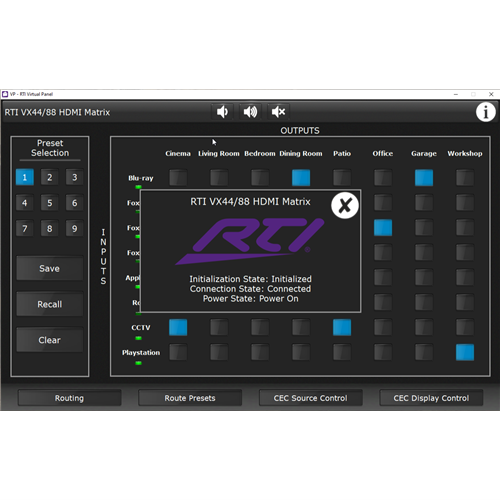

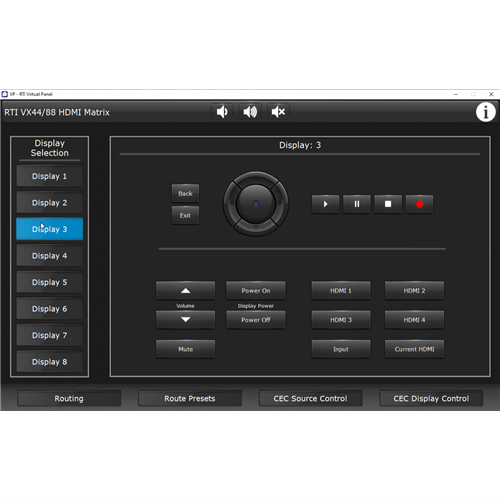

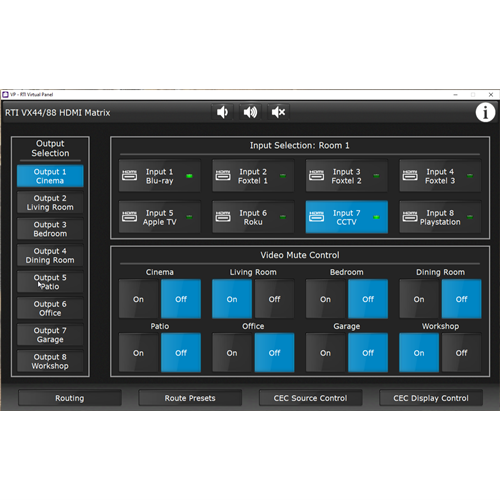

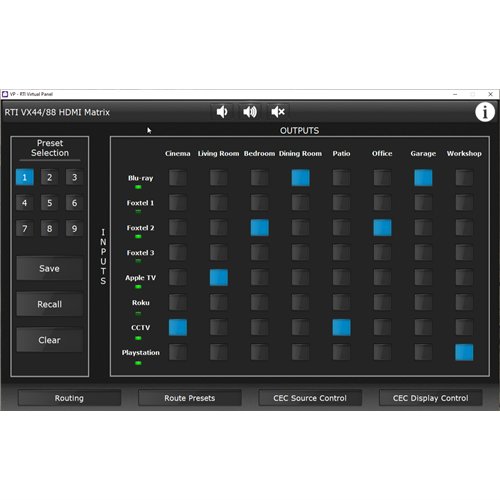

The 8x8 HDBaseT™ Matrix combines exceptional performance with outstanding value for custom integrators world-wide. The VX88-18G is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix using Color Space Conversion (CSC) technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 70m over a single CAT cable. The Matrix delivers advanced features including simultaneous HDBaseT™/HDMI on output 1, video down-conversion on HDBaseT™ outputs and a web browser interface module for simple configuration of the Matrix.The 8x8 HDBaseT™ Matrix combines exceptional performance with outstanding value for custom integrators world-wide. The VX88-18G is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix using Color Space Conversion (CSC) technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 70m over a single CAT cable. The Matrix delivers advanced features including simultaneous HDBaseT™/HDMI on output 1, video down-conversion on HDBaseT™ outputs and a web browser interface module for simple configuration of the Matrix.

Included in the box: VX88-18G (1), Rack Mounting Kit (1), Remote Control (1), IR Emitters (8), IR Receivers (9), RS-232 Control Cable (1), IR Control Cable - 3.5mm-3.5mm Cable (1), Power Cable (1)


Details

HDBaseT™
No bottleneck with the latest HDBaseT ™ 18Gbps standard that provides the highest possible bandwidth that currently exists.

4K UHD
Enjoy stunning picture quality with 4K UHD resolution.

2160p/60Hz/4:4:4
Eliminate blurred fast motions in action movies. 4K resolution paired with 60Hz refresh rate provides a crystal clear and crisp picture quality.

Long Distance
Go beyond the distance limitations of HDMI cables. Video can be transmitted over a Cat cable up to 229ft/70m.

HDCP 2.2
Be fully compliant with the latest copy protection algorithms to avoid black screens when connecting an HDMI source

Power over HDBaseT™
Get rid of extra power supplies for HDBaseT™ receivers. Remote devices can be powered over the HDBaseT cable.


Features

  • Advanced HDBaseT™ technology enables distribution of video and audio over a single CAT cable
  • Advanced color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • The eight (8) HDMI inputs can be independantly routed to eight (8) HDBaseT™ outputs with output 1 featuring simultaneous HDMI and HDBaseT™ output
  • Video down-conversion on HDBaseT™ outputs allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 131ft (40m) and 1080p video up to 131ft (70m)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K and all known HDMI audio formats including Dolby TrueHD®, Dolby Atmos®, Dolby Digital Plus® and DTS-HD Master Audio® transmission
  • Control via front panel , IR, RS-232 and TCP/IP
  • Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
  • Advanced EDID management and HDCP 2.2 compliant

Specifications

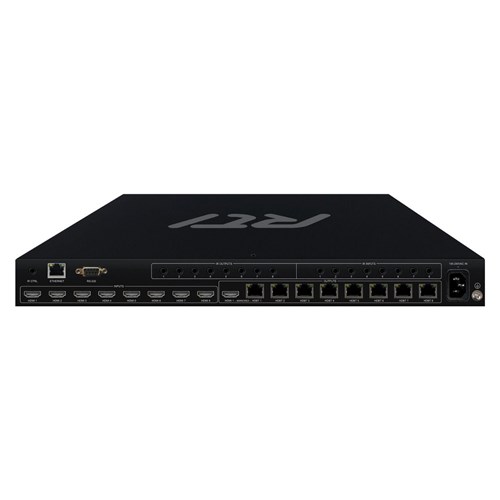

  • Video Inputs:    8 x HDMI Type A, 19-pin, female
  • Video Outputs:
    • 1 x HDMI Type A, 19-pin, female
    • 8 x HDBaseT™ RJ45 connector
  • HDBaseT™ Transmission Distance:
    • 1080p@50/60Hz ≤ 229ft (70m)
    • 3840 x 2160 @50/60Hz 4:4:4 ≤ 131ft (40m)
  • Max. Bandwidth:    18Gbps
  • TCP/IP Control:    1 x RJ45, female
  • RS-232 Serial Port:    1 x 3 Pin Phoenix Connector
  • IR Input:    9 x 3.5mm Stereo Jack
  • IR Output:    8 x 3.5mm Mono Jack
  • Mounting:    Rack-Mountable, 1 U rack height, Rack Ears included or free standing
  • Dimensions WxDxH:    17.2in(437mm) x 15.1in(384mm) x 2.1in(53mm)
  • Dimensions WxDxH (without feet):    17.2in(437mm) x 14.8in(377mm) x 1.7in(44mm)
  • Shipping Weight:    11lbs (5.0kg)
  • Operating Temperature:    +32 to +104°F / 0 to +40°C
  • Storage Temperature:    -4 to +140°F / -20 to +60°C
  • Warranty:    Three Years (Parts & Labor)
