RTI 5X1 SCALING SWITCHER W/- VSW51R RECEIVER

Product Code: RT-VSS-51

Brand
RTI
RRP: POA


Quantity In Cart:
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
No refurbished products
3 Year
Technical Specifications
Brands RTI
  • Details
  • Downloads
  • Where to Buy
  • Ordering

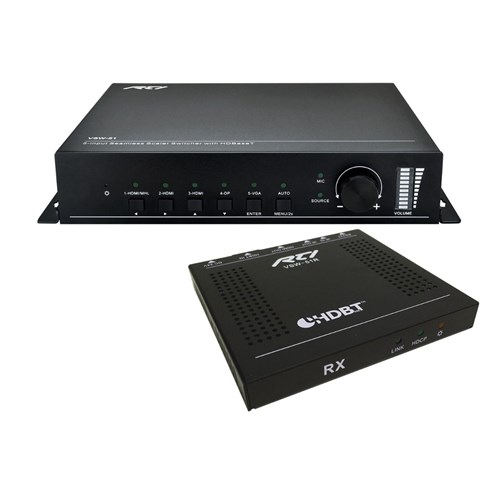

VSS-51 (VSW-51 & VSW-51R) 5x1 HDBaseT Presentation Scaler Switcher Kit

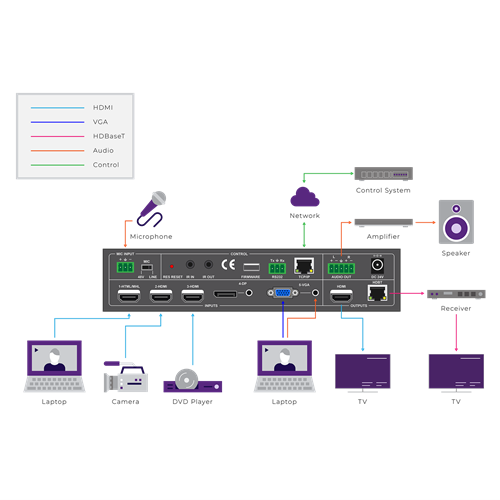

Made up of the VSW-51 5x1 presentation scaler switcher and the VSW-51R HDBaseT receiver, the VSS-51 Presentation Scaler Switcher Kit is the perfect AV solution in conference rooms, classrooms and lecture halls. The VSW-51 combines seamless switching with advanced scaling to provide excellent picture quality regardless of the source. The compact switcher comes with five video inputs, including three HDMI, one display port and one VGA port. Video is output through an HDMI port and a mirrored HDBaseT port for delivery of HD video to an additional display via the included VSW-51R HDBaseT receiver. A Mic input is also available with support for condensor and dynamic microphones, and line level audio.

Included in the box:
VSW-51 Video Switcher, mounting ears (2) with screws for switcher, plastic cushions (4) for switcher, VGA to YPbPr converting cable (1), 3-pole terminal blocks (2), 5-pole terminal block (1), power adaptor 24V DC 2.71A (1), power cord (1)

VSW-51R HDBaseT Receiver, mounting ears (2) with screws for receiver, plastic cushions (4) for receiver
RS-232 cable (1)

Features

  • Includes VWS-51 High-definition, multi-format 5x1 presentation scaler switcher.
  • Includes VWS-51R HDBaseT Receiver.
  • Built-in scaler upscales input resolution to up to 1920 x 1200 output resolution.
  • Auto-switching, Quick Switch technology.
  • HDMI output.
  • Mirrored HDBaseT output enables long-distance wiring over CAT cable
  • Supports HDBaseT 4-Play with transmission of video, audio, power (PoH), and control signals (IR / RS-232) over a single Cat-5/6 cable.
  • Provides signal switching of up to 5 video sources.
  • Mirrored HDMI and HDBaseT output 230ft (70m) for Full HD video.
  • Supports HDMI, Display Port and VGA sources.
  • Balanced/unbalanced adjustable microphone input with 48V phantom power for condenser, dynamic or wireless microphones.
  • Controllable via front control panel, RS-232 or web interface.

Specifications

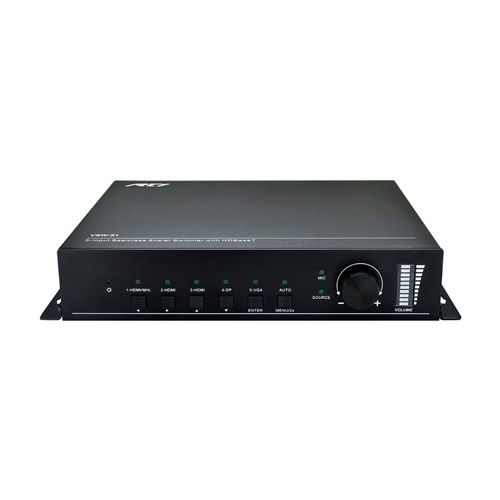

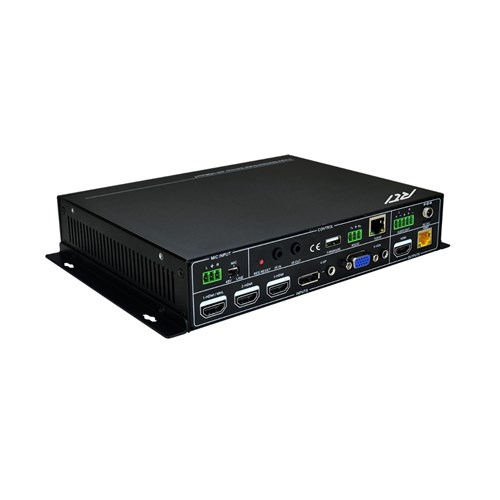

VSW-51 Presentation Scaler Switcher

  • Power Supply:    +24 VDC, 2.71A
  • Mounting:    Surface / wall mount or free standing
  • Digital Video Input:    One HDMI/MHL, Two HDMI, One Display Port
  • Analog Video Input:    One VGA, female 15-pin (Supports YPbPr and Composite Video using supplied adapter cable)
  • Video Output (mirrored):    One HDMI One HDBaseT with PoH (RJ45), 1920x1200≤229ft (70m)
  • Output resolution range:    1920x1200, 1920x1080, 1600x1200, 1600x900, 1360x768, 1280x800, 1280x720, 1024x768
  • Compliance:    HDMI 1.4, HDCP 2.2
  • Audio Line Input:    Two Analog Stereo for VGA and Display Port (3.5mm jack)
  • Microphone Input:    One balanced/unbalanced (3-pin Phoenix Connector), switchable Line / 48V Phantom Power
  • Audio Input Impedance:    10kOhms
  • Audio Output:    One Dual-Mono Analog Audio(5-pin Phoenix Connector)
  • Audio Output Impedance:    70 Ohms
  • Frequency Response:    20Hz to 20KHz
  • Stereo Channel Separation:    >80dB @ 1kHz
  • Front Panel Control:    6 Buttons, 1 Volume Knob, Bargraph and Status LED
  • RS232:    One, Bi-directional (3-pin Phoenix) for VSS-51 or remote device through HDBaseT
  • IR Control of local or remote device:    One, 3.5mm jack (IR IN) to IR OUT or HDBaseT to IR OUT on HDBaseT Receiver
  • USB:    Type-A for Firmware Update
  • Ethernet Port:    One, 10/100Base-T (RJ45)
  • Operating Temperature:    C -10 to +40 degrees F +14 to +104 degrees
  • Operating Humidity:    5% to 95% Non-condensing
  • Dimensions WxHxD:    8.66” (220mm) x 1.73” (44mm) x 2.85” (172.5mm)
  • Weight:    1.76lb (800g)
  • Warranty:    Three Years (Parts & Labor)

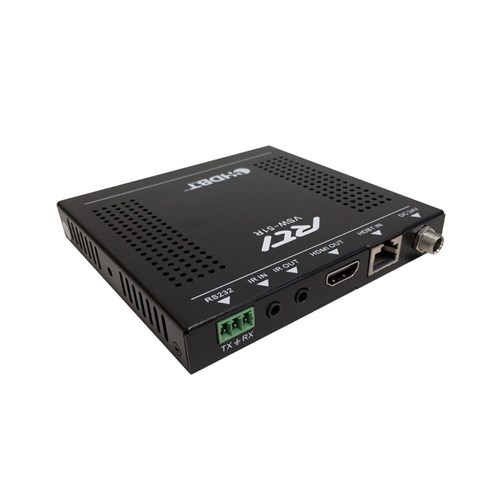

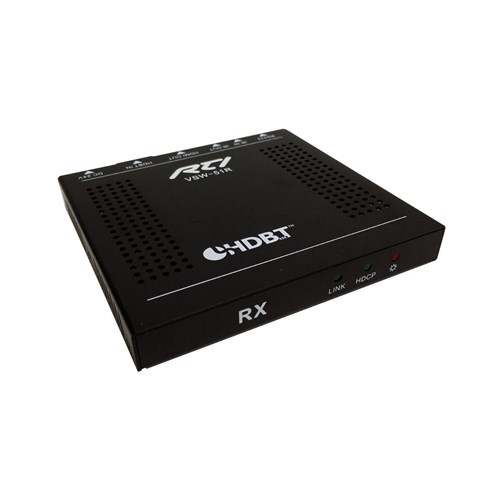

VSW-51R HDBaseT Receiver (included)

  • Power Supply:    via PoH (Power over HDBaseT)
  • Mounting:    Surface / wall mount or free standing
  • Input:    One HDBaseT with PoH (RJ45)
  • Output:    One HDMI
  • Compliance:    HDMI 1.4, HDCP 2.2
  • Control Ports:
    • One RS-232 Bi-driectional (3-pin Phoenix)
    • One IR in (3.5 mm jack), one IR out (3.5 mm jack)
