RockBoard Module 4 Wireless Guitar System with U2 Transmitter

Product Code: WR-MODULE4-W-U2

Brand
Rockboard
RRP $259.99


Quantity In Cart:
Unit of Measure
EACH



1 Year
Technical Specifications
Brands Rockboard
  • Details
  • Downloads
  • Where to Buy
  • Ordering

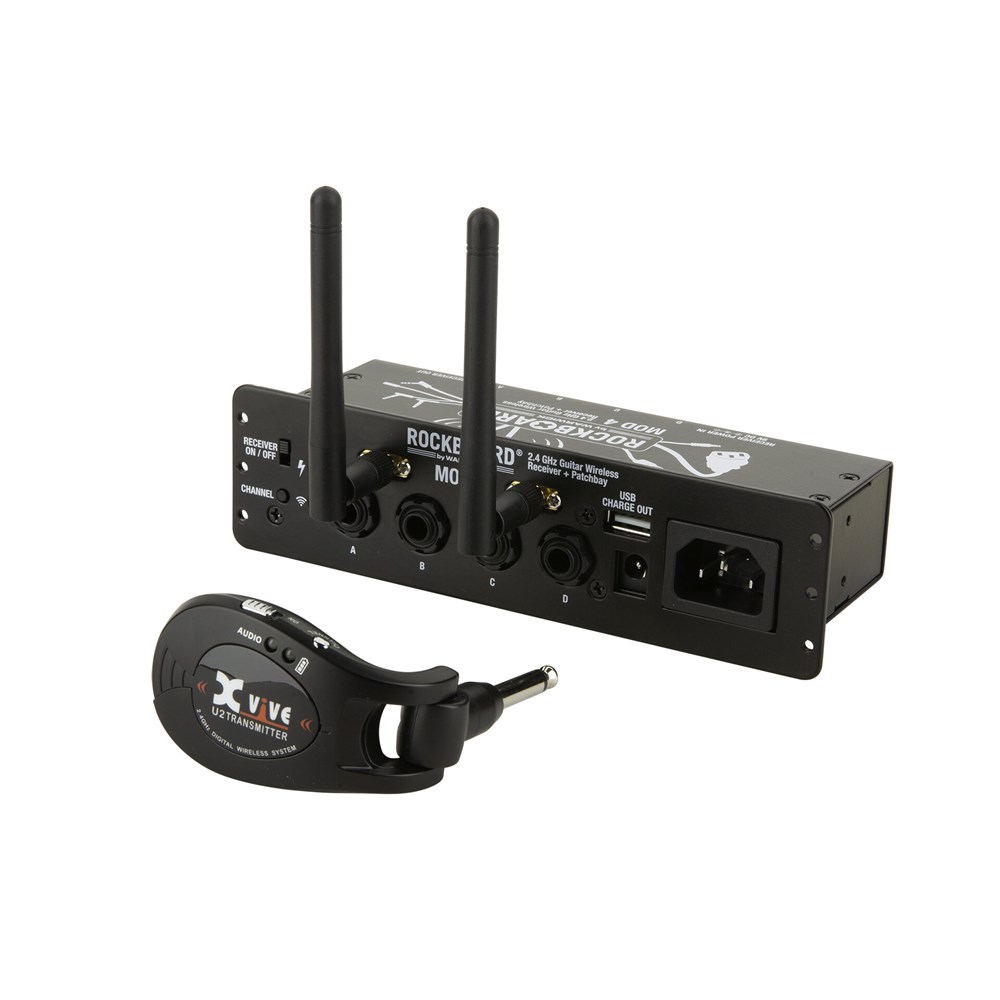

RockBoard Module 4 Wireless Guitar System with U2 Transmitter

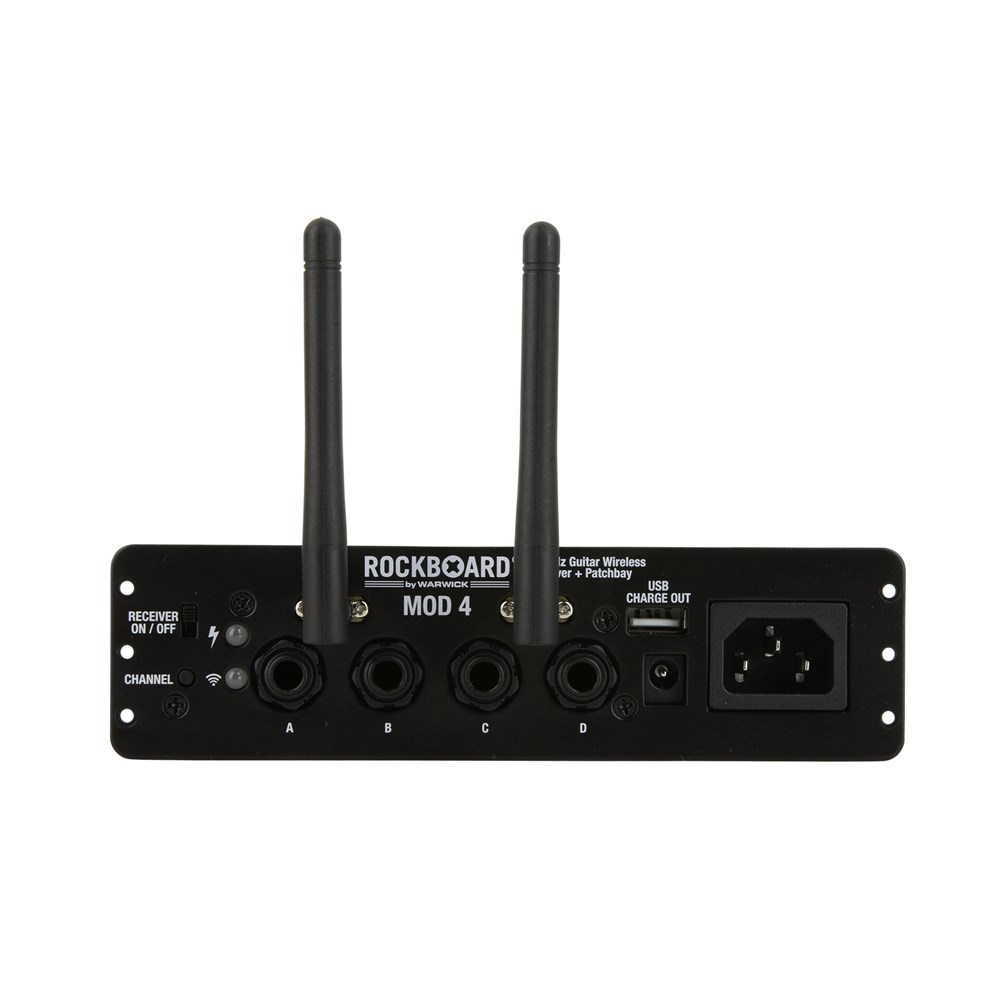

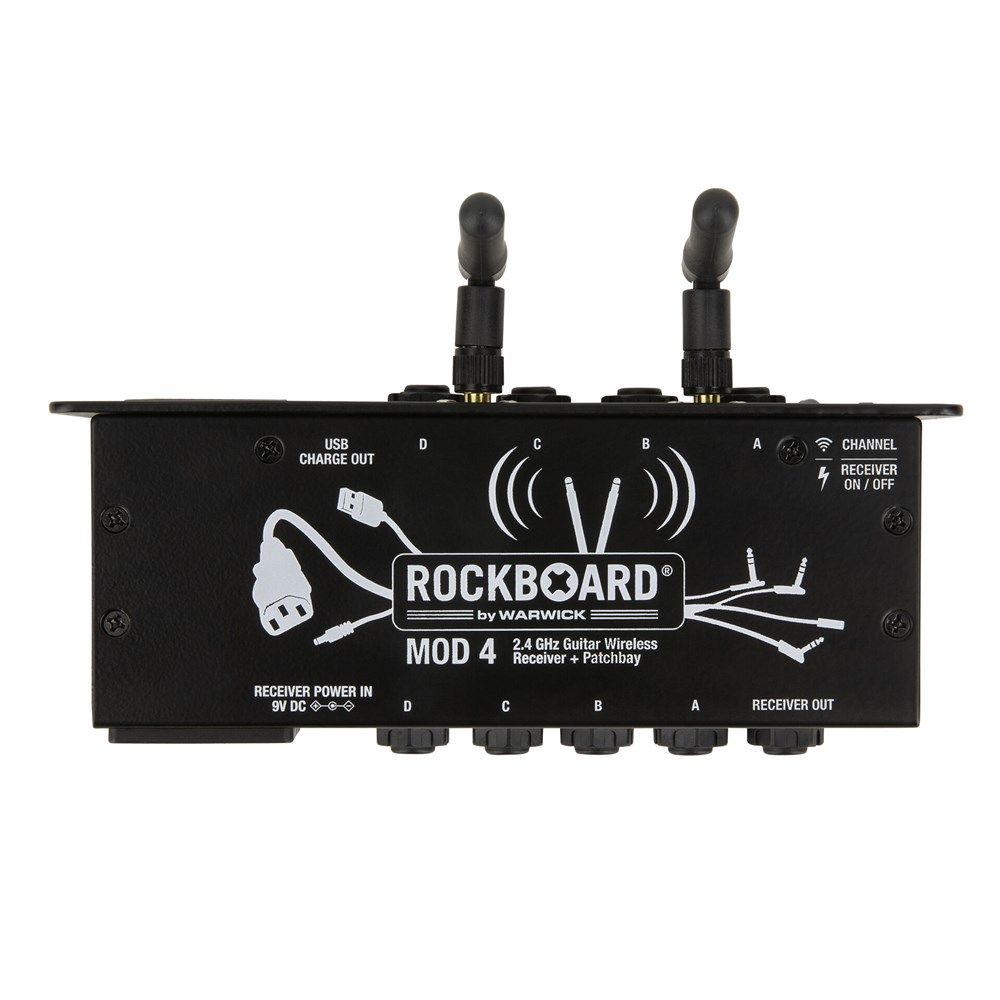

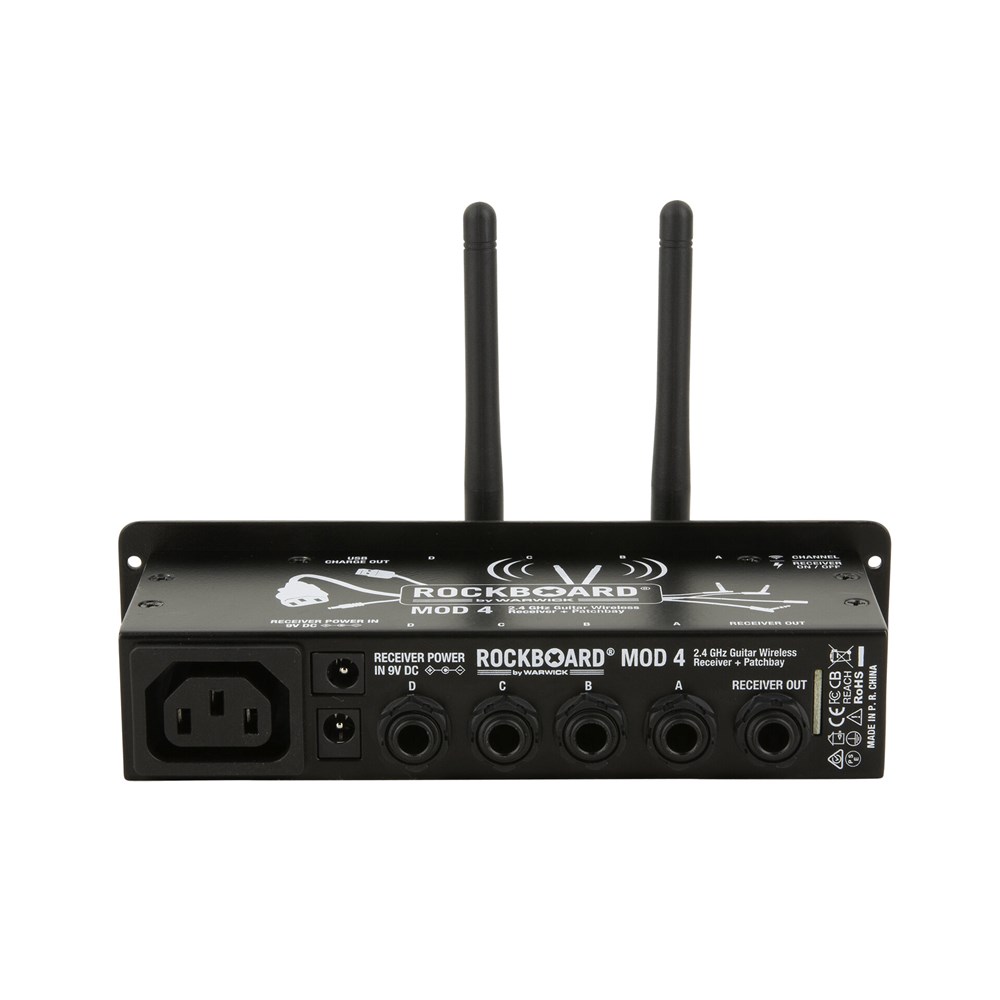

The RockBoard MOD 4 - All-in-One Wireless System Receiver + Patchbay for Pedalboards provides an easy-to-implement, wireless connection between your instrument and your pedalboard. It uses digital wireless technology that guarantees impressive sound quality, easy setup and reliable use for active musicians. The wireless system operates in the 2.4 GHz ISM band and can therefore be used worldwide without restrictions. With a usable frequency range of 20 Hz - 20 kHz and only 5 ms latency, nothing is left to be desired. The patchbay section is designed to guide connections and connections of the pedalboard from the bottom to the outside, to provide you with a central access point to your setup and to be able to tidy up and sort your cable runs. The A, B, C and D TRS sockets are wired as direct, continuous connections from the front of the MOD 4 to the corresponding sockets on the back. This allows you to set up your effects chain so that all you have to do when preparing for the gig is plug in cables on the front of the board instead of fiddling under the board.

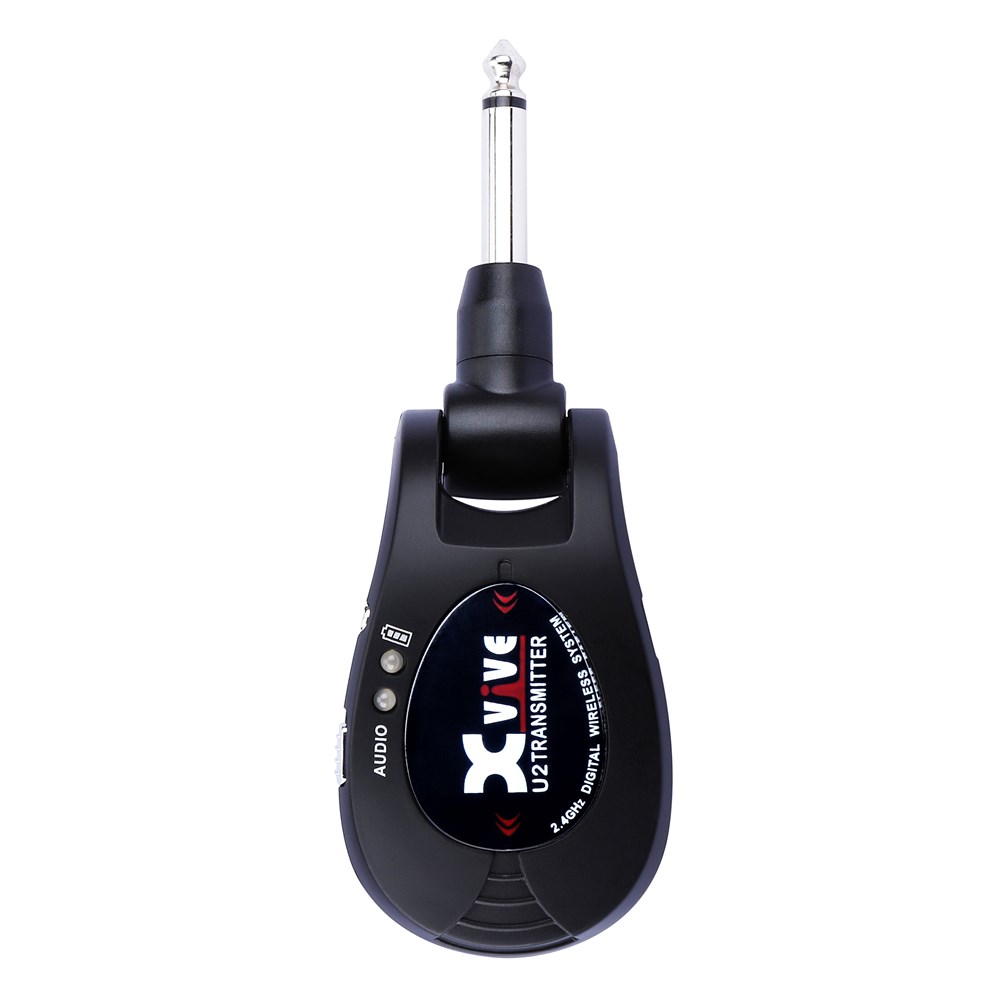

  • Wireless System Receiver + Patchbay for Pedalboards, incl. XVive U2 Wireless Transmitter
  • Compatible with the XVive U2 Guitar Wireless System
  • 2.4 GHz ISM band for worldwide use
  • 30 m average range (without obstacles)
  • 24 bit / 48 kHz uncompressed digital signal transmission
  • 20 Hz - 20 kHz frequency range
  • 5 ms latency
  • > 103 dB dynamic range
  • - 85 dBm RF sensitivity
  • 0.2% distortion (THD)
  • 4 selectable channels
  • suitable for MOD slots in RockBoard pedalboards
  • Compatible with a wide range of other pedalboards
  • Acts as a central access point to your effect setup
  • Removable front panel for mounting on or under pedalboards
  • 4x 6.3 mm stereo jack Thru (TRS)
  • 1x 6.3 mm mono jack receiver audio output (TS)
  • 1x DC 2.1 x 5.5 mm barrel plug Thru
  • 1x AC IEC Thru
  • 1x USB Type A Charge output
  • Power supply via optional 9V DC power supply, 2.1 x 5.5 mm barrel plug, polarity (-) inside
  • Battery operation not supported
  • Current consumption 500 mA
  • passive operation possible (patchbay only, without wireless system)
  • Dimensions with front panel (W x D x H): 175 x 85 x 47 mm
  • Dimensions without front panel (W x D x H): 160 x 85 x 33 mm
  • Weight 500 g
  • XVive U2 Wireless Transmitter, two antennas, one USB cable, mounting screws and nuts included
