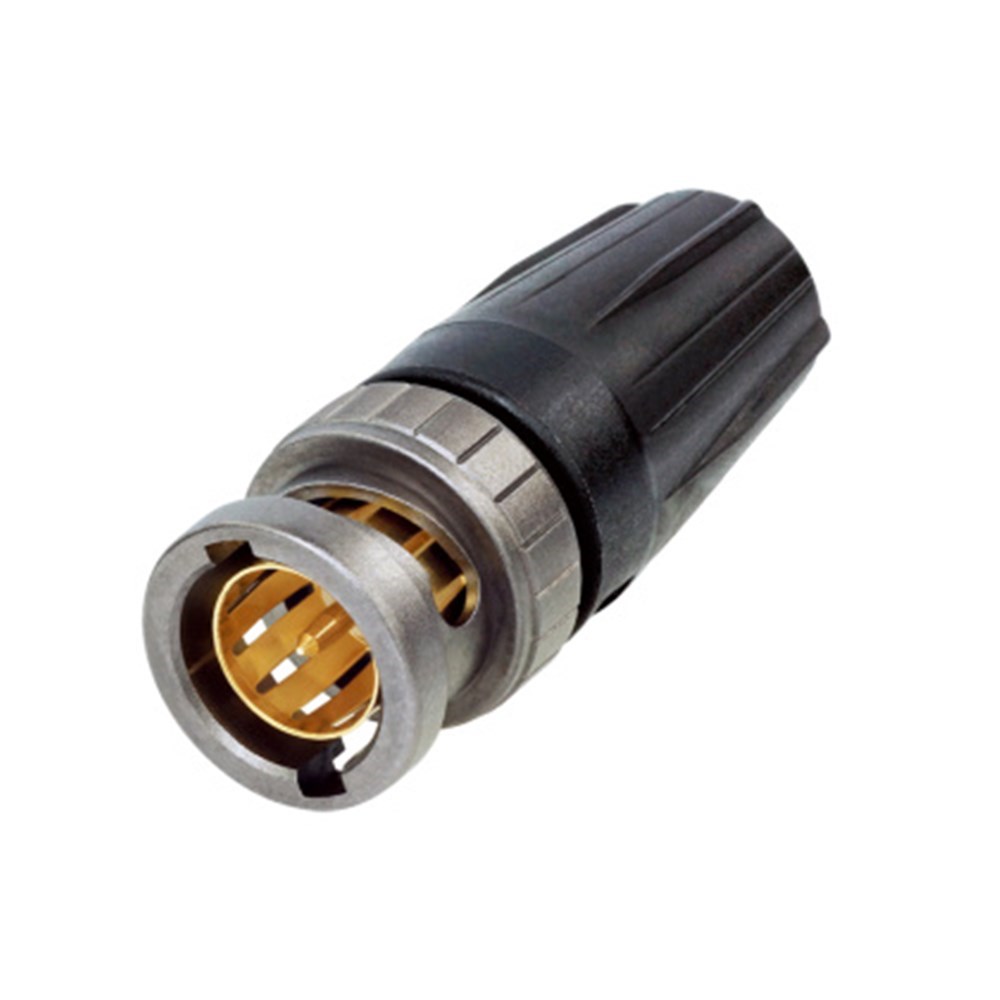

The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
Optimized Return Loss
Due to optimized insulator design and reduced crimp diameter from center pin the Neutrik rearTWIST UHD BNC connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.
For more details see Neutrik UHD BNC White Paper.
Crimp Dimensions
In order to achieve optimum return loss values at high frequencies the crimp dimension of the contact pin has been reduced.
Approved Cables
To guarantee high performance for each cable-connector combination at high frequencies Neutrik measured common COAX cables which are specifically designed for ultra high definition transmission (UHD). Find all approved cables listed below.
Suitable cables:CommScope 5765, Gepco VSD2001, Suhner S05163-02, Suhner S05133-07, Percon VK77
UHD optimized cables:Argosy Image 1000, Belden 1694A, Belden 1694ANH, Belden 1694DNH, Belden 70082, Belden 70082NH, Belden 70082CH, Bryant SD11, Bryant SD10F, Canare L-4.5CHWS, Canare L-4.5CHD, Clark Wire CD7506, Klotz V10/48, Klotz V10/48H
Product
Title
Connection Type
Gender
Electrical
Contact resistance
Dielectric strength
Impedance
Insulation resistance
Rated voltage
VSWR
Mechanical
Cable O.D.
Cable retention
Crimp size
Crimp size (pin)
Insertion force
Lifetime
Locking device
Cable anchoring
Material
Contacts
Shell
Shell plating
Insert
Environmental
Temperature range
Contact crimpability
No documents available
