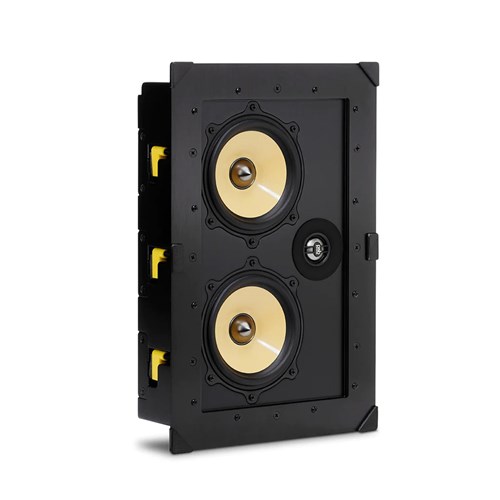

PSB W-SURR IN-CEILING SURROUND SPEAKER PSBWSURR

Product Code: PS-BWSURR

Brand
PSB Speakers
RRP $1,499.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands PSB Speakers
Series Custom Sound Series
Size 2 x 5.25"
Speaker Type In-wall
  • Details
  • Downloads
  • Where to Buy
  • Ordering

PSB SPEAKERS W-LCR

ENCLOSED TWO-WAY IN-WALL LCR SPEAKER

PSB combines the performance of a Premium two-way tower speaker with the invisibility of an in-wall to bring you a speaker with zero compromise: the W-LCR. With a perfect balance of sound quality and design, this easily concealable in-wall speaker can be used as part of a two-channel system, the three front channels, or as all the speakers in a surround system.


  • Two 5¼” (133mm) clay/ceramic reinforced polypropylene cone woofers
  • 1″ (25mm) titanium dome, ferrofluid-cooled tweeters
  • Frequency response: 70-23,000Hz (±3dB)
  • Includes magnetic frameless grille with fabric scrim
  • Heavy-duty steel and ABS doglegs for fast and easy installation


Reliable and accurate sound quality in your home
The CustomSound W-LCR in-wall speaker is a small two-way design using two 5¼” (133mm) woofers along with the same 1″ (25mm) titanium dome tweeter as found in the Imagine Series. This is a perfectly crafted speaker in which both sound quality and design are equally elevated. Experience the best of both worlds with the W-LCR.

Versatile and robust
The W-LCR is a versatile speaker that can be used in a variety of configurations. Position one horizontally under your wall-mounted TV for hearty centre-channel performance, and place one vertically on each side of your TV for the left and right channels. The result? A smooth, seamless, accurate soundstage that draws you into the action on the screen.

Dynamic performance, zero footprint
The W-LCR features a carefully engineered enclosure that ensures the acoustic integrity of the design in any installation. Heavy-duty steel and ABS doglegs make installation fast, easy, and secure, and the provided white magnetic grilles attach to the front frame of the speaker, seamlessly concealing the entire unit.


SPECIFICATIONS

Frequency Response
  • On Axis @ 0° ±3dB: 70-23,000Hz
  • On Axis @ 0° ±1 1/2dB: 75-20,000Hz
  • LF Cutoff -10dB: 62Hz
Sensitivity
  • Anechoic Chamber: 89dB
  • Listening Room: 91dB
Impedance
  • Nominal: 6 Ohms
  • Minimum: 4 Ohms
Input Power
  • Recommended: 20 – 150 Watts
  • Program: 150 Watts
Acoustic Design
  • Tweeter (Nominal): 1” (25mm) Titanium Dome with Ferrofluid
  • Woofer (Nominal): 2 x 5 1/4” (133mm) Clay/Ceramic reinforced Polypropylene / Cone / Rubber Surround
  • Crossover: 1700Hz, LR4
  • Internal Volume: 0.12 cu ft (3.48L)
  • Design Type: Sealed
Dimensions / Weights / Finish
  • Size (W x H x D) Cutout Dimensions – 9 3/16 x 14 3/8” * (233 x 365mm)
  • Mounting Depth – 3 3/4” * (95mm)
  • Grille Dimensions – 10 3/4 x 16 x 3/8” * (273 x 406 x 7mm)
Weight
  • Net – 11.7lb (5.3kg)/each
  • Shipping – 15lb (6.8kg)/pair
