Speakers

PSB CS610 - 6" IN-CEILING SPEAKER (EACH)

Product Code: PS-BCS610

Brand
PSB Speakers
RRP $549.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands PSB Speakers
Series Custom Sound Series
Size 6.5"
Speaker Type In-ceiling
  • Details
  • Downloads
  • Where to Buy
  • Ordering

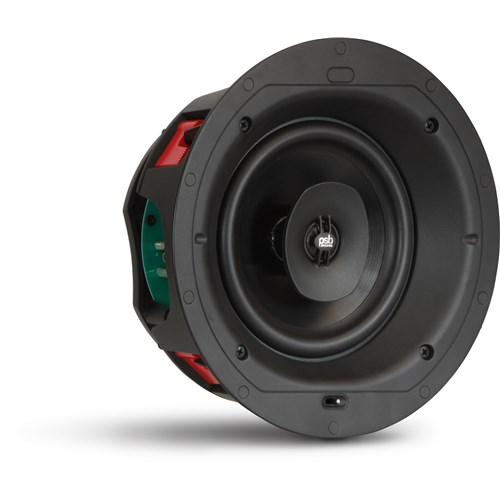

CS610 – 6″ In-Ceiling Speaker

Select Performance In-Ceiling Speaker
This premium architectural speaker embodies over 40 years of cutting-edge research in the field of acoustics and loudspeaker design. Musical, refined, and nearly invisible, these speakers can create a beautiful ambience, even in larger spaces. Because their sonic signature is identical to other PSB speakers, these CS610’s can integrate perfectly as part of home theatres or as the soundtrack of the connected home.

There are three models in this series, and all feature frameless magnetic grilles with invisible scrims. Both round and square grilles are provided, simplifying and reducing your inventory requirements. Each model features an improved simple, foolproof mounting system using heavy duty doglegs. Cutting templates are included. Pre-construction brackets and backcans are also available.

CS610 2-way In-Ceiling Speaker

Featuring PSB’s trademark carbon-filled polypropylene 6 1/2” woofer, this speaker has a warm and balanced sound with plenty of power handling thanks to the high temperature voice coil. The 3/4” aluminium dome tweeter, another proprietary PSB driver, is concentrically mounted and features a carefully engineered Wave Guide and ball-joint pivot mount assembly. This allows the tweeter to go lower in frequency, creating a perfect blend with the woofer in the crossover region, and allows the tweeter to be aimed toward the listening position for enhanced musical imaging. Adjustment for the level of the tweeter allows you to ‘dial in’ the upper frequency response of the speaker and its acoustic environment after installation to achieve the most musical balance for every room.

Specifications

Frequency Response
  • On Axis @ 0°±3dB    50-20,000Hz
  • On Axis @ 0°±1 1/2dB
  • Off Axis @ 30°±1 1/2dB
  • LF Cutoff -10dB
Sensitivity
  • Anechoic Chamber    85dB
  • Listening Room    87dB
Impedance
  • Nominal    6 Ohms
  • Minimum    4 Ohms
Input Power
  • Recommended    10 - 100 Watts
Acoustic Design
  • Tweeter (Nominal)
    • 3/4” (19mm)
    • Aluminum Dome
    • Black Anodized
  • Woofer (Nominal)
    • 6 1/2” (165mm)
    • Fiber filled Injection Molded
    • Polypropylene Cone / Rubber Surround
  • Crossover    2100Hz, LR4
  • Internal Volume    N/A
  • Design Type    Open Back
Dimensions / Weights / Finish
  • Size (W x H x D)    8 3/8” * Diameter (212mm) Diameter
  • Weight    4.4lb (2kg)/each
  • Finish    White
