PSB CSIR SUB IN-ROOM SUBWOOFER

Product Code: PS-BCSIRSUB

Brand
PSB Speakers
RRP $2,099.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands PSB Speakers
Series Custom Sound Series
Size 10"
Speaker Type Subwoofer
  • Details
  • Downloads
  • Where to Buy
  • Ordering

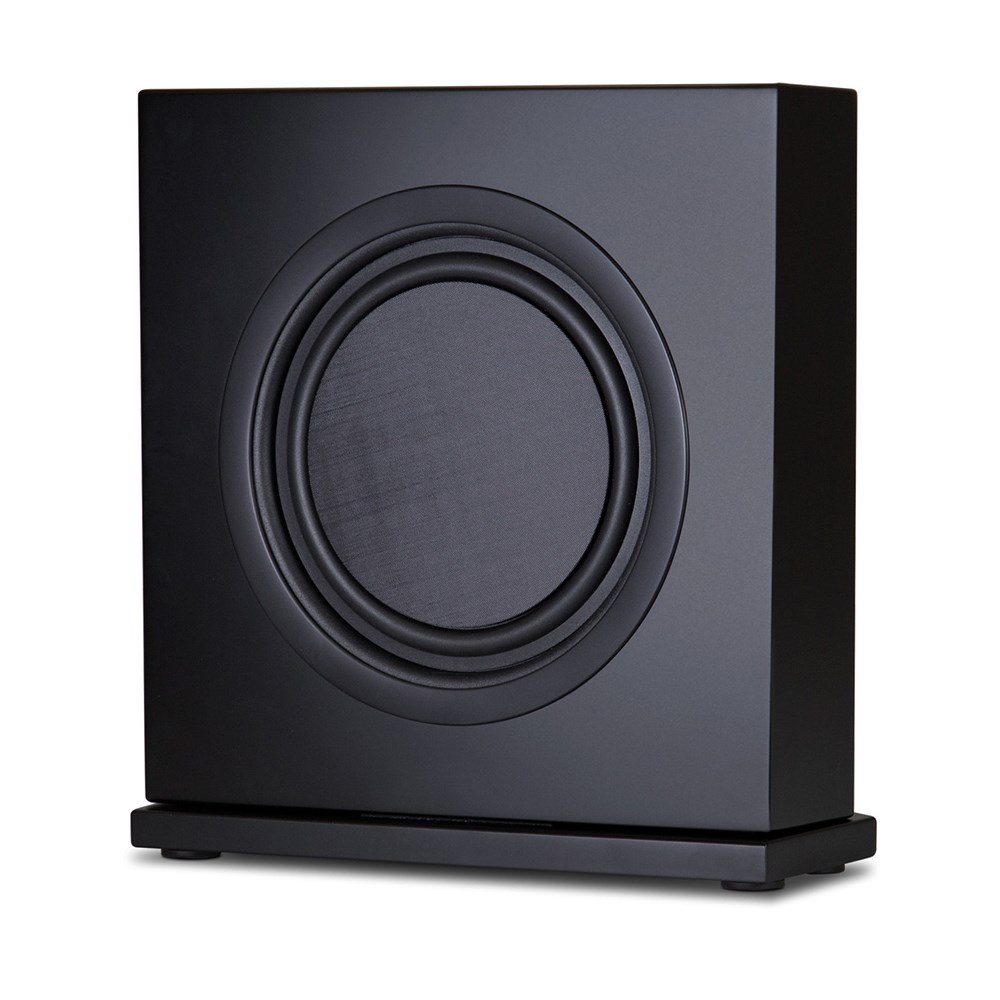

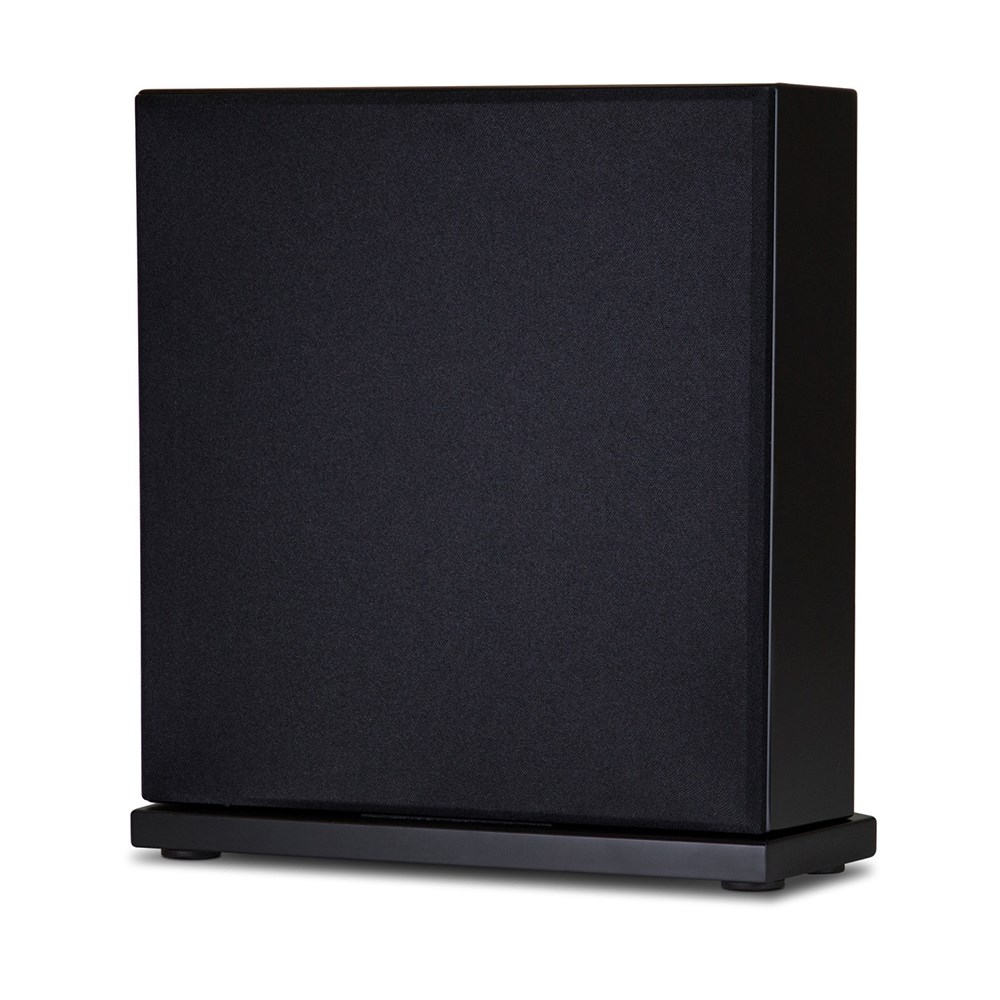

CSIR SUB In-Room Subwoofer

CustomSound™ CSIR SUB In-Room Subwoofer
This In-Room Subwoofer offers several elegant and highly versatile solutions. Measuring a mere 15 3⁄4” x 15 3⁄4” x 4 3⁄4”, the CSIR SUB can disappear into the décor of any room, but its stylish design is a feature in and of itself.

  • Ultra-Slim 10” Passive In-Room Subwoofer
  • Three Placement Options:

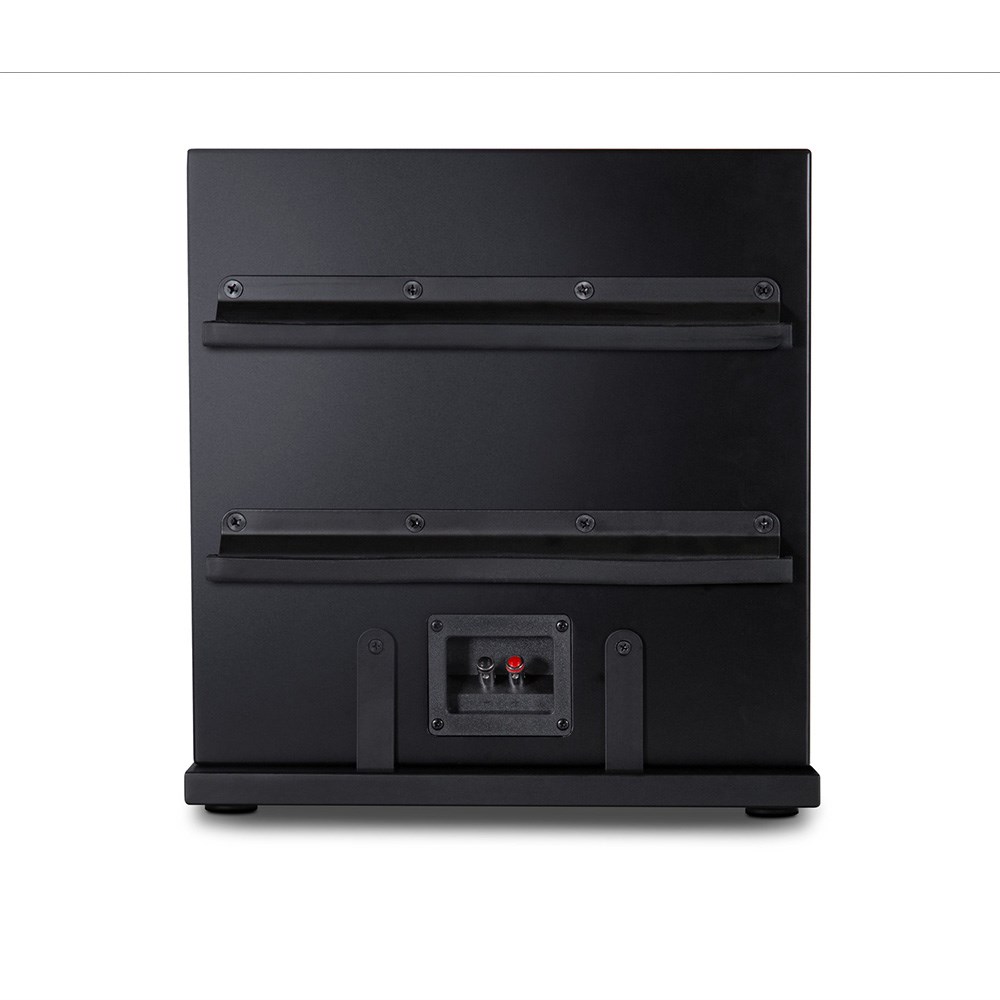

    • – On-Wall with supplied mounting bracket
    • – On-Floor with supplied base

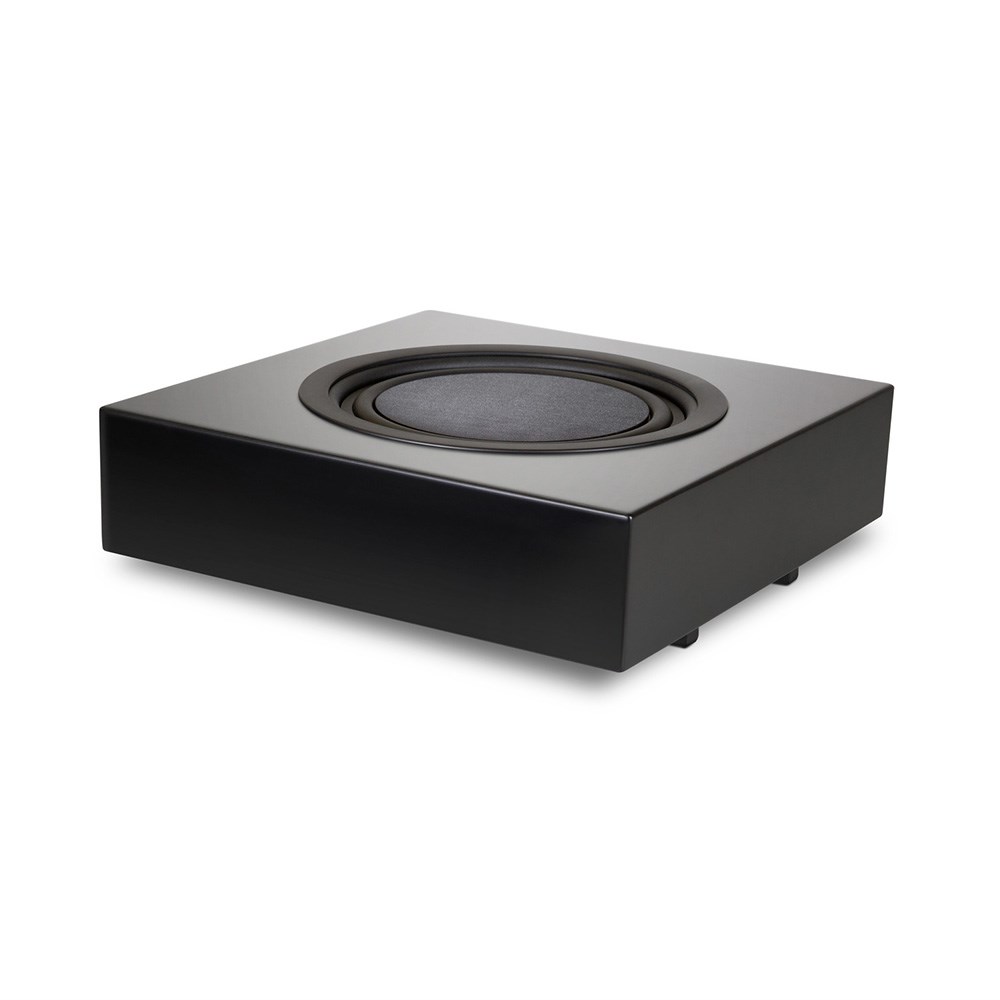

    • – Laid on its back for under or behind furniture
  • High excursion, shallow driver with Glass fiber / PMI
  • Foam sandwich cone, dual rubber surround
  • Renowned PSB sonic signature, well suited for either music or home theater
  • Design and final voicing engineered by Paul Barton
  • ISO Acoustic feet for improved isolation and sound clarity
  • Ideal match with CS500W subwoofer amplifier
  • Gross Dimensions (w/o base):15¾ x 15¾ x 4¾” (W x H x D)
  • Gross Dimensions (w/ base):15¾ x 17 x 5¼” (W x H x D)

CustomSound™ CSIR SUB can be placed in 3 distinct ways. It can be mounted on a narrow, low profile plinth and placed upright. It can also be set on its back allowing it to be tucked out of the way, behind or under furniture. It comes with a mounting bracket, enabling the subwoofer to be wall mounted to maximize floor space.

The 10“, high performance shallow driver offers deep and resonant bass well beyond its modest size.


Specifications

Frequency Response
  • Frequency Response    25-150Hz
Sensitivity
  • Anechoic Chamber    88dB
  • Listening Room    90dB
Impedence
  • Nominal    8 Ohms
Acoustic Design
  • Woofer (Nominal)
    • 10” (254mm)
    • Glass fiber / PMI foam sandwich cone
    • Die Cast Basket
    • Rubber Surround
    • Balanced Drive motor structure
Recommended Power
  • Recommended Power    40-200 Watts
Construction
  • Cabinet    MDF
  • Grille Face    Acoustic Transparent Cloth
  • Grille Frame    Wood
Size (W x H x D)
  • Net Width    15 3/4 "(400mm)
  • Net Hight    17" (432mm)
  • Net Depth    5 1⁄4” (133mm)
Shipping Information
  • Net Width    21 1/4” (540mm)
  • Net Hight    21 5/8” (550mm)
  • Net Depth    11” (280mm)
  • Net Weight    24 4/5 lbs
  • Shipping Weight    32 1/2 lbs
Finish
  • Available Finishes    Satin Black, Satin White
Brackets
  • Wall Bracket    Included
  • Floor Stand    Included
