WyreStorm

  • Brands
  • WyreStorm
  • Presentation Switcher 4in 4K60 USB-C 60W PD, casting ,2 HDMI outs. MST. Multiview .USB 3.0

Presentation Switcher 4in 4K60 USB-C 60W PD, casting ,2 HDMI outs. MST. Multiview .USB 3.0

Product Code: WY-SW640LTXW

Brand
Wyrestorm
$3,469.00 inc GST
RRP $3,469.00

Pre-Order Now
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Input/output type USB
Product type Switchers
  • Details
  • Downloads
  • Where to Buy
  • Ordering

4-Input 4K Presentation Switcher with Matrix Outputs, USB 3.0, Multiview & Wireless Casting

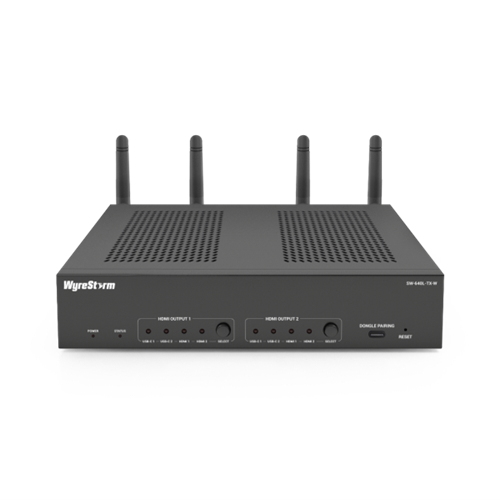

The SW-640L-TX-W is an advanced presentation switcher, tailored to meet the dynamic requirements of modern meeting spaces and conference rooms. This upgraded model boasts significant enhancements. Key improvements include two USB-C inputs with 60W PD and MST support for receiving dual video signals. The switcher now features an upgraded USB 3.0 switcher, further enriched by the support for a wireless host through the APO-DG2. This addition allows for more flexible and convenient connections.

  • WIRELESS CASTING
    Wirelessly screenshare from your laptop, phone, or tablet by using Apple Airplay or Miracast. Up to 4 wireless devices can be connected at the same time and shown on connected screens in a picture-in-picture layout.
  • MULTIVIEW
    Display up to 4 source devices at the same time, creating a supportive environment for collaboration between colleagues and teams.
  • DUAL OUTPUT
    Dual switching outputs promote connectivity of multi-screen conference rooms. The HDMI outputs can be matrixed independently or mirror content.
  • USB
    A built-in USB 3.0 hub on the switcher allows local connection of peripherals devices such as a conference speakerphone.

Additional Features

  • Automatic or manual switching of 4 connected sources (2 HDMI & 2 USB-C) with assignable USB host connection
  • 60W PD on the USB C Ports
  • Supports input resolutions up to 4K30 4:4:4 via USB-C or HDMI
  • Wireless screensharing via Apple Airplay or Miracast
  • Dual output via HDMI
  • Multiview processing up to 4 simultaneous sources
  • Analog audio output allows extraction of Audio.
  • Compatible with all major conference software including Zoom, Microsoft Teams, Cisco WebEx and more
  • Built-in USB 3.0 hub for connection of peripheral devices such as speakerphones or cameras
  • Seamless switching in both single view and Multiview modes
  • USB-C input supports alt-mode for both A/V (MST Supported), Ethernet, and Data communication over a single cable
  • API uses Telnet over TLS for secure and encrypted communication
  • Integrated webserver for control and configuration via HTTPS
  • Easily mountable under a table or desk with included mounting brackets
  • Built-in wireless access point for secure and isolated communication to screensharing devices
  • Wireless access point supports custom SSID, password and screensharing access PIN
  • Integrated ‘Guide Screen’ used to provide end-users with simple instructions to get connected
  • Custom ‘Guide Screen’ can be uploaded to include company information, logos, or specific connection information
  • Relay and PA Sensor

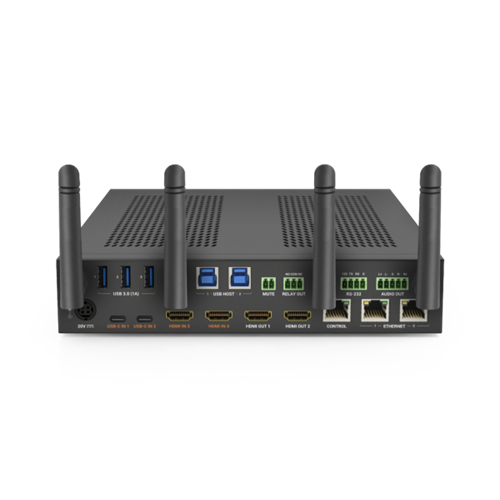

Specifications

AUDIO AND VIDEO

  • Inputs
    • 2x HDMI In: 19-pin Type A
    • 2x USB-C
    • Wireless Video from Airplay or Miracast Source
    • APO-DG2 casting dongle (sold seperatley)
  • Outputs

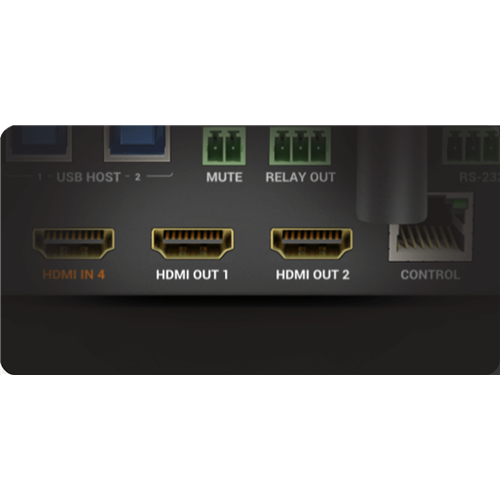

    • 2x HDMI Out: 19-pin Type A
    • 1x Analog Audio Out (5-pin Phoenix Male Connector)
  • Audio Formats: 2ch PCM
  • Output Video Encoding: HDMI
  • Video Resolutions (Max):
    • HDMI Out 1 – 3840x2160p @60Hz 4:4:4
    • HDMI Out 2 – 3840x2160p @30Hz 4:4:4
  • Supported Standards: DCI | RGB
  • Maximum Pixel Clock: 300MHz

COMMUNICATION AND CONTROL

  • HDMI
    • HDMI Out 1 – HDCP 2.2
    • HDMI In & HDMI Out 2 – HDCP 1.4
  • USB
    • 3x USB 2.0 Type A device ports | 5v 10000mA per port
    • 2x USB 2.0 Type B host ports (assignable)
  • RS-232: 1x 4-pin Phoenix (API control) | Provides 12V Power
  • LAN: 3x 8-pin RJ-45 Ethernet Ports
  • Wireless: 4x Wi-Fi Antennas | IEEE 802.11 a/b/g/n/ac | Dual-band 2.4 & 5GHz | WEP, TKIP, AES, WPA, WPA2

POWER

  • Power Supply: 20V 10A

In the Box

  • 1x SW-640L-TX-W
  • 1x 20V 10A Power Supply (US/UK/EU/AU)
  • 4x Plastic Mounting Brackets
  • 1x 2-pin Phoenix Connector (for PA Sensor)
  • 1x 3-pin Phoenix Connector (for Relay)
  • 1x 4-pin Phoenix Connector (for RS-232)
  • 1x 5-pin Phoenix Connector (for Audio Out)
  • 4x Wi-Fi Antennas
  • 1x Quickstart Guide
