Optical Hdmi Cbl 30M detach head 4K HDR 4:4:4 60Hz alternative :WY-CABHAOC30P

Product Code: WY-CABHAOC30C

Brand
Wyrestorm
RRP $689.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands WyreStorm
Terminated Cable Type HDMI
  • Details
  • Downloads
  • Where to Buy
  • Ordering

CAB-HAOC-30-C

24Gbps 4-core Active Optical HDMI Cable | 4K HDR 4:4:4/60 | Kevlar strengthened | Detachable Head | CPR Rated

The WyreStorm HAOC is a next generation HDMI cable designed for the next generation of 4K and 5K HDR content. It offers a unique feature set in both delivering uncompressed HDMI content at up to 24Gbps and compatibility with emerging HDMI technologies such as ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate) using the latest in optical transmission technology. Now established as the most powerful form of HDMI extension, WyreStorm active optical cables offer the best of both worlds: pixel-perfect long distance transmission of content and native HDMI communication. This model features a detachable RX head and is certified for fire safety.



Features

  • Uncompressed optical transmission of HDMI content up to 24Gbps:
    • 2K (2560 x 1440p) 4:4:4 8-bit at 144Hz
    • 4K (4096 x 2160p) 4:4:4 10-bit HDR at 60Hz
    • 5K (5120 x 2880p) 4:4:4 10-bit HDR at 30Hz
  • Compatible with all current and emerging HDR standards at up to 60Hz:
    • HLG (Hybrid Log Gamma)
    • HDR-10 and HDR-10+
    • Dolby Vision
    • PQ (Perceptual Quantizer)
    • SL-HDR-1
  • Ready for future HDCP 2.3 content encryption
  • True native HDMI communication ensures CEC and ARC communication between compatible devices
  • Supports emerging HDMI technologies such as ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate)
  • Perfect for use in environments with excessive EM or RF interference
  • Kevlar protected communication cores
  • High quality aluminum construction with low-profile 20mm/0.79” TX head

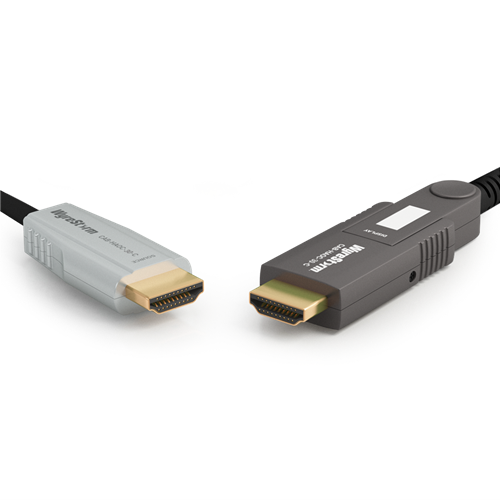

  • Fixed Type-D head with detachable Type-A head on RX side for ease of installation
  • Backup power injection via micro-USB cable (supplied) for source devices not capable of supplying adequate power

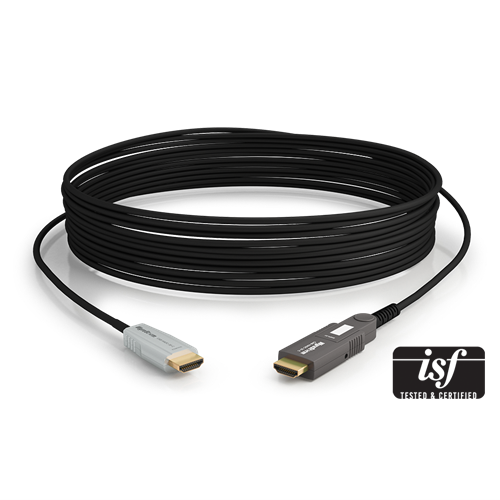

  • Supplied coiled on spool, with RX head out first
  • Can be installed in air plenums, ducts, walls, conduits, ceilings, or anywhere else a CPR fire rating is required.

SPECIFICATIONS

Transmission
  • Transmission Encoding Uncompressed: AOC
  • End to End Latency: 10µs
  • Maximum Transmission Bit Rate: 24 Gbps (4-core, 6Gbps per lane)
Video
  • HDMI:
    • (v2.0b) TMDS | 600MHz Maximum
    • (v2.1) FRL (Fixed Rate Link) | 16b/18b encoding
  • Input: 1x HDMI: 19-pin Type A Male
  • Output: 1x HDMI: 19-pin D Male | Type A Detachable Head
  • Maximum Data Rate: 22.8 Gbps
  • Video Resolutions (Max):
    • 1920x1080p @120Hz
    • 2560x1440p @144Hz
    • 3840x2160p @60Hz 10bit HDR 4:2:0
    • 3840x2160p @60Hz 12bit HDR 4:2:2
    • 3840x2160p @60Hz 10bit HDR 4:4:4
    • 3840x2160p @60Hz 10bit HDR RGB
    • 5120x2880p @30Hz 10bit HDR 4:4:4
  • Supported Standards: DCI | Static HDR | HDR10+ | Dolby Vision | HLG | SL-HDR1 | PQ | BT.2020 | BT.2100
Audio
  • Audio Formats:
    • 2ch PCM
    • Multichannel LPCM
    • DTS-X
    • Dolby Atmos
  • Maximum Sampling Rate: 192KHz
  • Maximum Audio Channels: 32
  • Audio Return Channel (ARC): Supported
Communication and Control
  • HDCP: Pass-Through, 2.3 Supported
  • EDID: Pass-Through, RX > TX
  • Ethernet: 100Mbps Supported
  • Consumer Electronics Control (CEC): Supported
  • Auto Low Latency Mode (ALLM): Supported
  • Variable Refresh Rate (VRR): Supported
Installation Restrictions
  • Max Bend Radius: 2cm
  • Max Pull Tension: 15kg/33lbs
  • Orientation: Uni-directional - Observe signal flow direction prior to installation
Power
  • Power Supply: Passive 4.5v~5.5v VCC (From Connected Source)
  • Max Power Consumption: 250mW
Environmental
  • Operating Temperature: 14°F ~ 122°F (-10°C ~ 50°C) | 10% ~ 90%, non-condensing
  • Storage Temperature: -4°F to ~ 140°F (-20°C ~ +60°C) | 10% ~ 90%, non-condensing
  • Maximum BTU: 0.85 BTU/hr
Regulatory
  • Safety and Emission:
    • CAB-HAOC-xx-C: CE | FCC | RoHS | CPR
    • CAB-HAOC-xx-P: CE | FCC | RoHS | Plenum UL (CL3) | FT6
