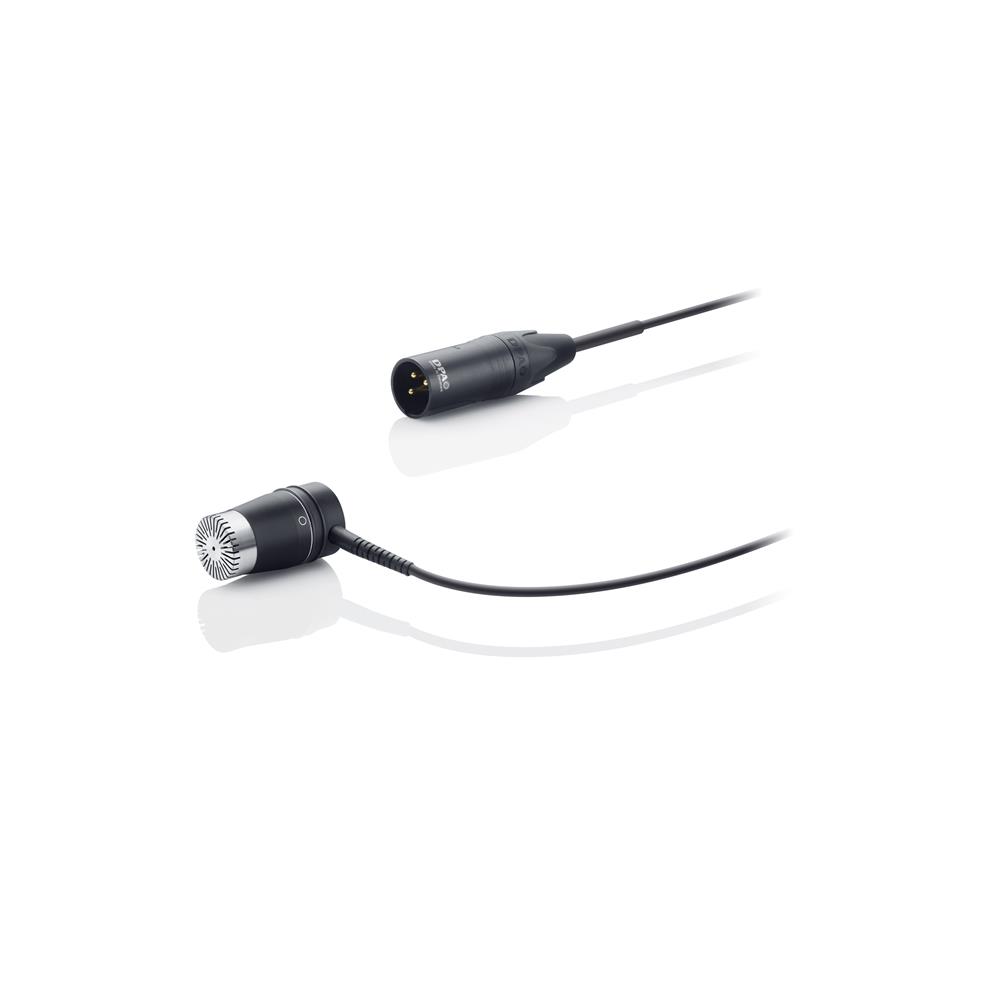

DPA d:dicate™ 4006ES Omni Mic, Side Cable, XLR

Product Code: DP-4006ES

Brand
DPA Microphones
RRP $4,049.00


Quantity In Cart:
Unit of Measure
EACH



Unspecified
Features

The d:dicate™ 4006 Omni Mic offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and linear frequency response from 10 to 20 kHz (±2 dB).

This mic is linear and true in character. It has earned its status as a worldwide recording standard and is the most popular mic in our d:dicate™Recording Microphone Series. This highly sought after mic has forged its enviable reputation over the past quarter of a century by repeatedly exhibiting its total transparency in any recording situation

Technical Specifications
Brands DPA Microphones
Microphone Type Pencil Microphones
Series d:dicate
  • Details
  • Downloads
  • Where to Buy
  • Ordering

Specifications

Directional characteristics: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency range: 10 Hz to 20 kHz
Frequency range, ± 2 dB: 20 Hz to 20 kHz
Sensitivity, nominal ±2 dB at 1 kHz: 40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 79 dB(A)
Total Harmonic Distortion (THD): < 1 % up to 134 dB SPL peak
Dynamic range: Typ. 119 dB
Max. SPL, peak before clipping: 140 dB
Minimum load impedance: 2 kohm
Output impedance: < 200 ohm
Cable drive capability: 100 m
Output balance principle: Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR): > 50 dB
Power supply (for full specifications): 48 V Phantom power (± 4 V)
Current consumption: 2.8 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color: Matte black
Weight: 63 g
Diameter: 16 to 19 mm
Capsule diameter: 16 mm
Length: 64 mm
Output voltage, RMS: > 4 V
Polarity: +V at Pin 2 for positive sound pressure
Temperature range: -40 °C to 45 °C
Relative Humidity (RH): Up to 90%
Matching tolerance: ± 0,5 dB
Phase deviation for kit: < 5°

Product Documents

No documents available
