Products

Sound level meters

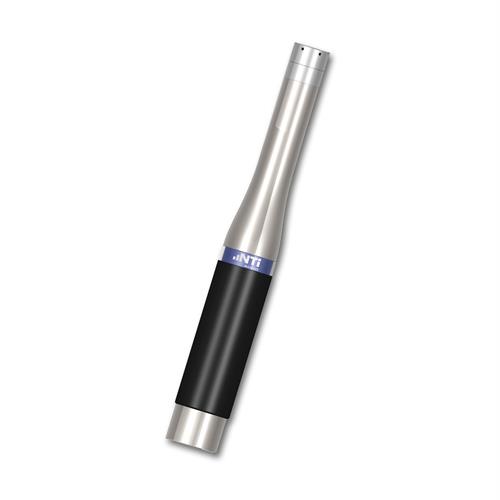

XL2 Measurement Microphone Certified Class 1

600 040 050 (NT-M2230)

Brand
NTI Audio
RRP: POA


Quantity In Cart:
Unit of Measure
EACH



1 Year
Features
Certified Class 1 measurement microphone in accordance with IEC 61672, metal diaphragm

• Measurement Microphone consisting of
- MA220 Microphone PreAmplifier
- Microphone Capsule MC230 or MC230A
• Dust Cap
• 50 mm Windscreen
• Microphone-holder MH01 with Adapter 5/8“ - 3/8“
• Operating Manual
• Individual Frequency Response Chart
Technical Specifications
Brands NTi Audio
Application Building acoustics
Application Environmental noise
Application Live sound FOH
Application Live sound level monitoring
Application Live sound PA rental
Application Occupational noise
Application Reverberation RT60 measurement
Application Room acoustics
Application STIPA
Device Type Measurement Microphones
Meter Class Class 1
Meter Class Class 1 Type Approved
  • Details
  • Downloads
  • Where to Buy
  • Ordering

Measurement microphones for the XL2 are 48V phantom powered and include an electronic data sheet. The Automated Sensor Detection (ASD) of the XL2 Analyzer automatically reads this data, i.e. the microphone model and calibration data. This promotes faster setup and ensures accurate measurements.

The microphone bodies contain the preamplifier. They combine high dynamic range and wide frequency range with low noise. These measurement microphones connect via the ASD Cable to the XL2 Audio and Acoustic Analyzer, e.g. for measurements at remote locations or to reduce acoustic reflections.

Features:

  • Omni-directional, free-field microphone
  • Phantom power 48 VDC
  • Electronic data sheet installed
  • Frequency range 5 Hz - 20 kHz
  • Individual frequency response available as Excel-data
  • Optional calibration certificate
