Products

AV switching and distribution

This is a Special Order Item

NetworkHD 400 series encoder 4K HDR JPEG 2000 AVoIP NHD-400-DNT-TX Dante & USB

Product Code: WY-NHD400DNTTX

Brand
Wyrestorm
RRP $1,839.00


Quantity In Cart:
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
No refurbished products
5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type Extenders
  • Details
  • Downloads
  • Where to Buy
  • Ordering

NetworkHD™ 400 Series 4K AV over IP JPEG 2000 Encoder with Dante


SKU: NHD-400-DNT-TX

The NHD-400-DNT-TX encoder offers stunning 4K HDR video, multichannel audio support and video resolution scaling to seamlessly handle mixed resolution HDMI sources for matrix and video wall functionality. Equipped with a Dante audio encoder the 400 Series embraces the flexibility of standardized audio distribution. Featuring incredible low latency the 400 Series is the ideal AV over IP solution for systems where high quality and low delay are key requirements, making it perfect for demanding commercial applications.

The NHD-400-DNT-TX JPEG 2000 encoder is intended for use with any 400 Series JPEG 2000 decoder (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with Dante compatible audio equipment the 400 Series can distribute source HDMI or analog audio throughout an installation.

4K UHD AND HDR SUPPORT
Delivering visually lossless 4K UHD content with HDR and HDCP 2.2 support the 400 Series ensures compatibility with the latest UHD video sources, while a built-in scaler at the decoder ensures hassle-free mixing of the latest 4K displays and 1080p screens within an installation.

DANTE AUDIO DISTRIBUTION
Empowered with a Dante audio encoder, Dante networks can benefit from the streaming of source audio from an encoder HDMI or analog port direct to Dante compatible audio amplifiers, DSPs or mixing consoles.

CUSTOM VIDEO WALL STYLES
Supporting traditional video walls, as well as customizable mosaic styles, perfect for building captivating & creative digital signage. JPEG2000 encoding ensuring distribution integrity and video latency of less than a single frame makes the 400 Series ideal for live environments.

POWERFUL VIDEO PROCESSING
Dynamic video processing seamlessly converts and matches source video content from each decoder to connected displays, removing video resolution and timing incompatibilities that might otherwise exist for reliable and easily manageable multi-display systems.


Additional Features

  • Uses security protocols such as SSH, HTTPS and AES to encrypt data and prevent unauthorized access
  • Stunning visually lossless 4K UHD HDMI video with HDR over 1GbE / IP networks
  • Ultra-low end-to-end latency – only a single video frame (16ms at 60fps)
  • Dante encoder for 2ch audio from HDMI or analog – compatible with all Audinate Dante software tools
  • Analog audio input for HDMI audio embedding
  • Multi-channel audio including DTS:X & Dolby ATMOS supported over HDMI to decoder
  • Image scaling with 400 Series decoders – use a mix of display resolutions throughout an installation
  • Easy network set-up using standard Layer 2 or Layer 3 managed switches
  • Hugely scalable I/O, utilizing multicast technology
  • Live video unicast preview streams for use with NetworkHD Touch or a custom control UI
  • Powerful audio matrix functionality – route audio separately from video to any decoder
  • CEC One-Touch Play & Standby, IR or RS-232 control of connected devices using 400 Series decoder
  • 400 Series supports up to 16×16 video walls with image scaling, bezel compensation and rotation
  • 400 Series supports custom “No Source” idle image upload for branded down time
  • Support all SD, HD and UHD video formats – including interlaced content
  • Infrared signal generation direct from encoder or decoder – supports HEX IR format
  • Analog audio de-embed output with volume control
  • Batch firmware update and batch settings functions offers a massive reduction on installation times
  • Custom EDID management with import/export
  • HDCP 2.2 Compliant
  • IEEE 802.3af PoE compliant PD
  • Compatible with NHD-000-RACK4 rack mounting kit (brackets included with encoder)

Specifications

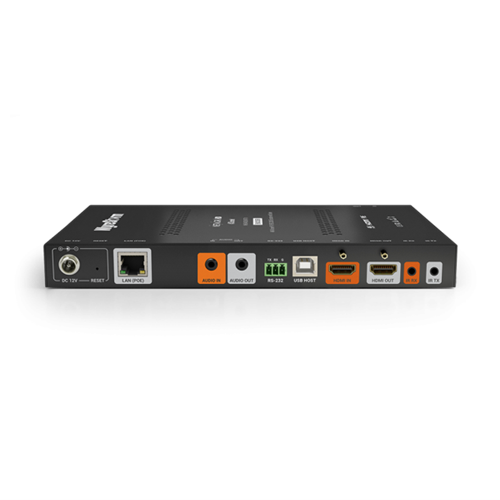

CONNECTIVITY

  • Inputs:
    1x HDMI In: 19-pin HDMI Type A Receptacle
    1x Audio In: 3.5mm TRS Stereo Jack Socket
    1x IR RX: 3.5mm TRS Jack Socket
  • Outputs:
    1x LAN (PoE): 8P8C “RJ45” Socket ANSI/TIA-568
    1x Audio Out: 3.5mm TRS Stereo Jack Socket
    1x USB Host: USB 2.0 Type B Receptacle
    1x RS-232: 3-pin Phoenix
    1x IR TX: 3.5mm TS Jack Socket

TRANSMISSION

  • Transmission Encoding: Proprietary stream encoding. Video compression based on JPEG 2000 Dante / AES67 compliant audio stream encoding
  • End to End Latency: With RX, 1 video frame (Passthrough mode) 2 video frames (scaling/video wall) e.g. 16ms @ 60Hz
  • Max Transmission Bit Rate: 850Mb/s

VIDEO

  • HDMI: 300MHz Max. TMDS Clock
  • Maximum Data Rate: 8.91Gb/s HDMI
  • Video Resolutions (Max):
    1280x720p @60Hz 12bit 4:4:4/RGB
    1920x1080p @60Hz 12bit 4:4:4/RGB
    3840x2160p @30Hz 12bit 4:2:2/4:2:0 HDR10 HLG
    3840x2160p @30Hz 8bit 4:4:4/RGB
    3840x2160p @60Hz 8bit 4:2:0
    Passthrough mode: Output at RX matches input at TX except for:1) YUV 4:2:0 converted to 8bit RGB2) For resolutions above 1920×1200 at 50/60Hz framerate is halved
    Scaler mode: User-selectable scaled output1) All formats converted to 8bit RGB2) Up to 3840x2160p @30Hz
  • Supported Standards: HDR10 | HLG | BT.2020 | BT.709 | 3D Video

AUDIO

  • Audio Formats: PCM up to 8ch | Bitstream audio formats including Dolby Atmos & DTS:X2ch Analog Dante: Up to 2ch PCM (HDMI) | 2ch Analog

CONNECTIVITY

  • Ethernet: IEEE 802.1ab 1000BASE-T
  • HDCP: HDCP 2.2 | 1.x
  • EDID: Programmable EDID | EDID Copy/Import | Custom EDID
  • RS-232: Programmable RS-232 Commands | Custom Command Generation (RX Only)
  • IR: Custom Command Generation
  • Dante: Full compatibility with Audinate control and management software tools for Dante

POWER

  • Power Over Ethernet: IEEE 802.3af (15.4W at PSE)
  • External Power Supply: Optional part: PSU-12V-1A
  • Nominal Power Consumption: 8W

In the Box

  • 1x NHD-400-DNT-TX Encoder
  • 1x 3-pin Terminal Block
  • 2x Mounting Brackets for NHD-000-RACK4
  • 2x Wall Mounting Brackets
  • 1x IR Emitter Cable
  • 1x IR Receiver Cable
  • 1x Quickstart Guide
