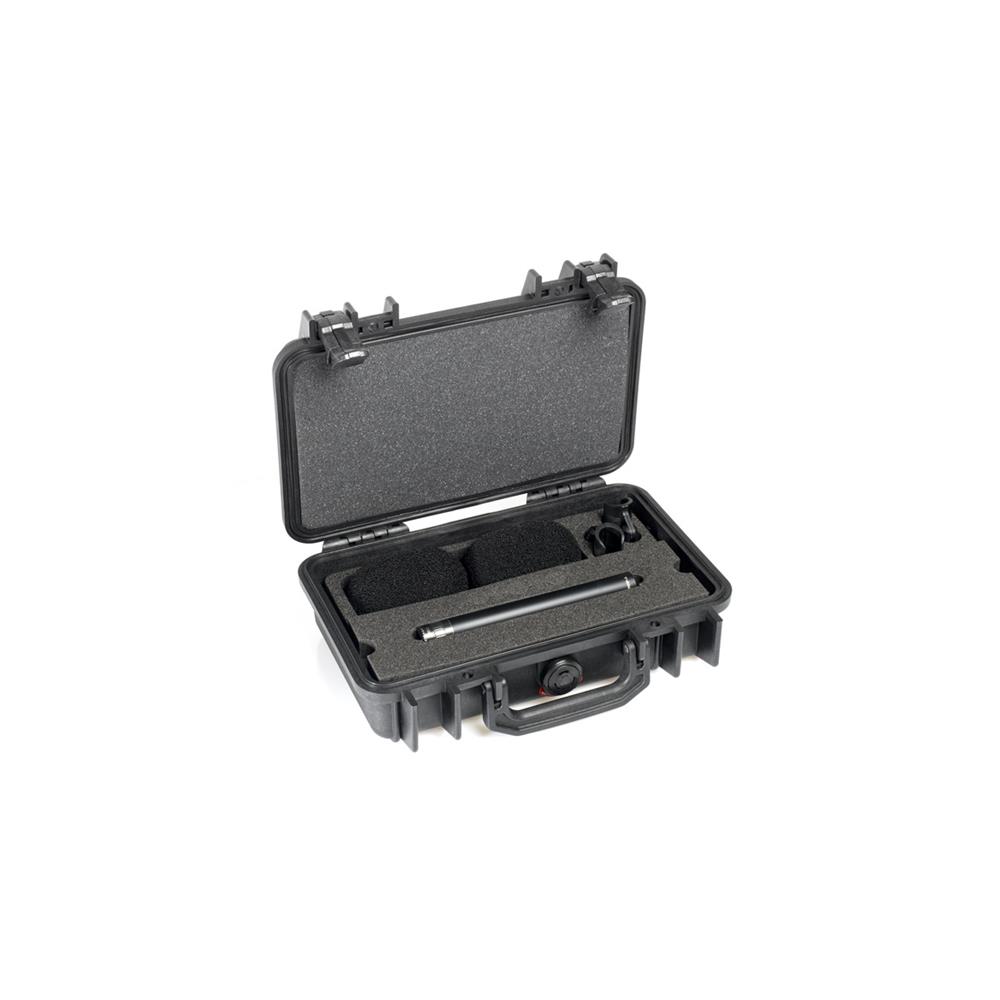

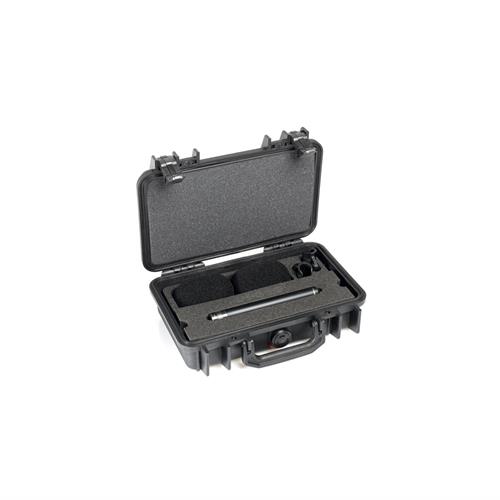

DPA d:dicate™ 4011A Stereo Pair with Clips and Windscreens in Peli Case

Product Code: DP-ST4011A

Brand
DPA Microphones
RRP $6,689.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Features

Matched stereo pairs

  • Modularity – interchangable capsules and preamplifiers
  • Up to 120 dB dynamic range
  • RF rejection between >60 and >40 dB
  • Linear frequency response
  • High SPL
  • Superior gain before feedback

The wide and versatile d:dicate™ Microphone series is legendary in the high-end recording and film production industry. Delivering clean, accurate sound, the mics in this series are used by professionals, who understand sound and insist on only using the best.
Technical Specifications
Brands DPA Microphones
Microphone Type Stereo Pairs
Series d:dicate
  • Details
  • Downloads
  • Where to Buy
  • Ordering

Specifications

Directional characteristics: Cardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz to 20 kHz
Frequency range, ±2 dB: 40 Hz to 20 kHz
Sensitivity, nominal ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted, re. 20 µPa: Typ. 18 dB(A) re. 20 µPa (max. 20 dB)
Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)
Total Harmonic Distortion (THD): < 1 % up to 139 dB SPL peak
Minimum load impedance: 2 kohm
Dynamic range: Typ. 121 dB
Max. SPL, peak before clipping: 159 dB
Switchable attenuator: 0 dB / -20 dB
Output impedance: < 200 ohm
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR): > 60 dB
Power supply (for full specifications): 48 V Phantom power (± 4 V)
Current consumption: 2.8 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color: Matte black
Weight: 158 g (5.6 oz)
Microphone diameter: 19 mm (0.75 in)
Capsule diameter: 19 mm (0.75 in)
Length: 170 mm (6.7 in)
Output voltage, RMS: > 5 V
Polarity: +V at Pin 2 for positive sound pressure
Temperature range: -40 °C to 45 °C (14 °F to 113 °F)
Relative Humidity (RH): Up to 90 %
Matching tolerance: ± 1 dB
Phase deviation for kit: < 10°
