JBL Synthesis - Dual 8" Sub Passive In-Wall Subwoofer SSW4

Product Code: JB-SYNSSW4

Brand
JBL
RRP $2,199.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands JBL
Series Synthesis
Size 2 x 8"
Speaker Type Subwoofer

SSW-4

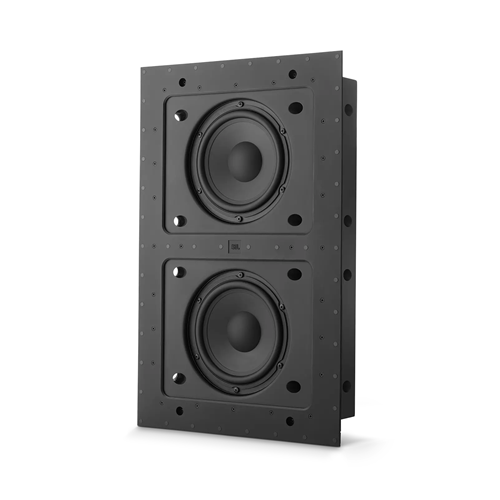

Dual 8” (200mm) In-wall Passive Subwoofer

The SSW-4 is an in-wall subwoofer system designed to deliver powerful and accurate low frequency response while remaining hidden from view. It features dual 8-inch (200mm) low-profile woofers mounted in a heavily-braced molded baffle and an MDF Enclosure that installs into standard 2x4 wood frame wall construction. The SSW-4 delivers solid performance in small to medium rooms.

Features

  • Dual 8" (200mm) low-profile, long-throw, Klippel-optimized, metal cone woofers
  • Front-firing drivers with sealed back box for superior acoustic tuning
  • Gold-plated speaker terminals
  • Zero-bezel, magnetically-attached grille
  • Connect up to eight SSW-4 Subwoofers with each JBL SDA-8300 Amplifier (300 Watts per subwoofer module)

Specifications

  • Driver Complement: Dual 8" Polymer-coated Aluminum Cone Rubber-Surround woofers
  • Frequency Response: (-6dB) 36Hz – 150Hz, using the SDA 8300 SPL (CEA2010B) 107dB
  • Nominal Impedance: 8 Ohm
  • Recommended Amplifier: JBL Synthesis SDA 8300
  • Mounting Cutout Size (H x W): 23-1/2" x 14-1/2" (596.9mm x 368mm)
  • Height: 25-3/8" (645mm)
  • Width: 16-1/2" (419mm)
  • Depth: 4" (102mm)
  • Weight per speaker: 28.4 lb (12.9kg)
