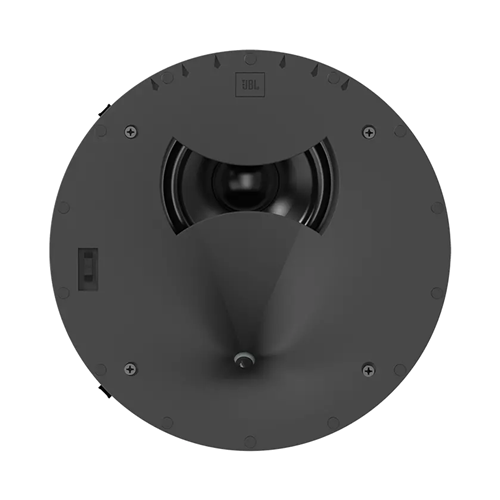

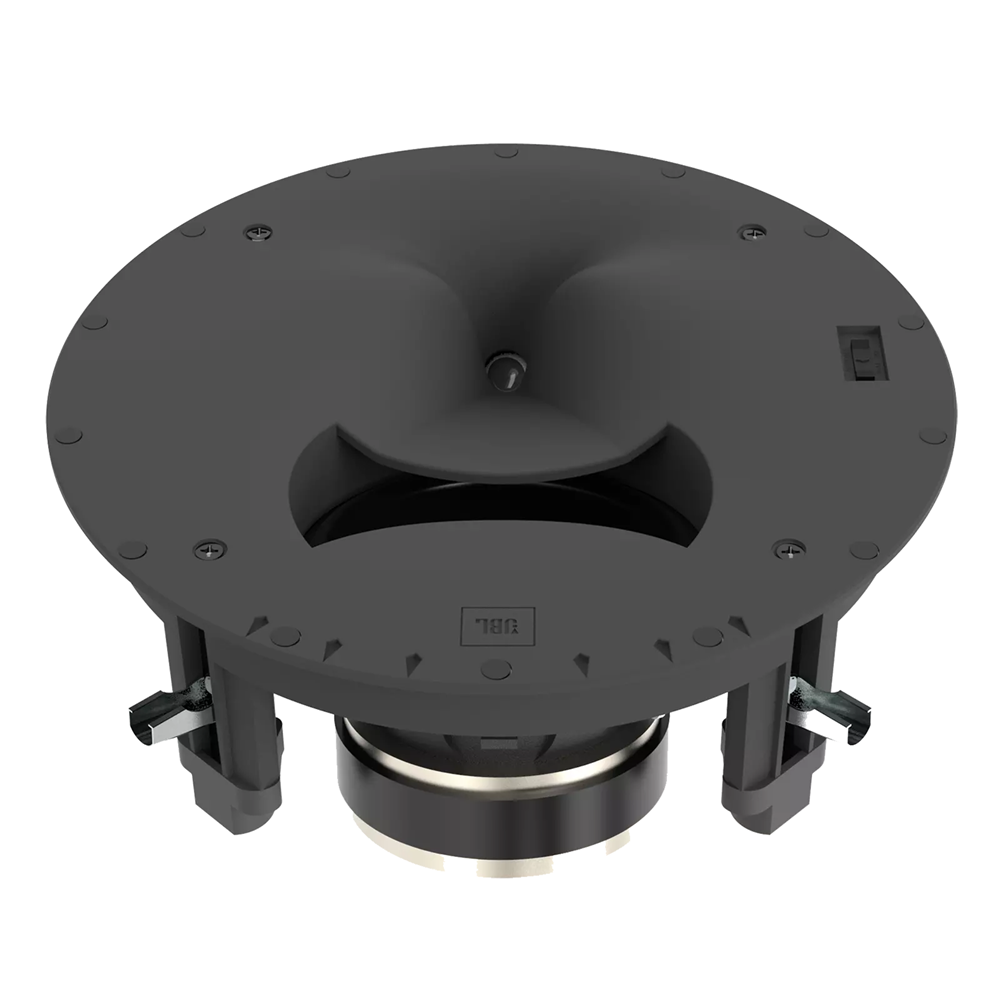

JBL Synthesis - 5.25" In-Ceil Passive In-Ceiling speaker Ea 1" 2410H-2 Teonex Tweeter SCL8

Product Code: JB-SYNSCL8

Brand
JBL
RRP $2,199.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands JBL
Series Synthesis
Size 5.25"
Speaker Type In-ceiling

SCL-8
2-Way 5.25-inch (130mm) In-Ceiling Loudspeaker

The SCL-8 is the most compact round in-ceiling model in the JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for use as a height channel or in-ceiling LCR or surround channel loudspeaker. The SCL-8 features JBL’s patented 2410H-2 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI™) horn. This patented horn design is integrated with an angled 5.25-inch (130mm) Advanced Aluminum Matrix cone cast-frame woofer operating behind an acoustic aperture waveguide. The innovative configuration yields incredibly smooth and consistent performance for off-axis placement up to 60 degrees from the listening position. The SCL-8 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution. It is ideal for use in small to medium rooms.


  • PATENTED 2410H-2 1-INCH (25MM) COMPRESSION DRIVER
  • PATENTED HIGH-DEFINITION IMAGING HORN GEOMETRY
  • 5.25-INCH (130MM) CAST-FRAME, ADVANCED ALUMINUM MATRIX CONE WOOFER
  • ADVANCED CROSSOVER NETWORK
  • ZERO-BEZEL MAGNETICALLY- ATTACHED PAINTABLE GRILLE
  • GOLD-PLATED SPRING-LOADED BINDING POST INPUT TERMINALS
  • MOLDED BAFFLE WITH PATENTED CAT CLAW INSTALLATION MECHANISM

General Specifications

  • Type
    2-Way In-ceiling loudspeaker
  • Low Frequency Driver
    5.25” (130 mm) advanced Aluminum Matrix cone cast-frame woofer (JW130Al-4)
  • High Frequency Driver
    1" (25 mm) 2410H-2 Teonex annular ring-diaphragm compression driver
  • Recommended Amplifier Power
    25 - 100 W RMS
  • Impedance
    4 Ohm
  • Loudspeaker Sensitivity
    85 dB/2.83V/1m (2pi anechoic)
  • Frequency Response
    55 Hz - 30 kHz (-6 dB on-axis), 2pi anechoic
  • Crossover Frequency
    1.8 kHz
  • High Frequency Coverage Angle (-6dB)
    60° Vertical (Up
  • Enclosure Type
    Open back
  • Controls
    Boundary Proximity Control
  • Shipping Units of Measure
    Each
  • Grill Dimensions (Square)
    10.77” (273 mm) x 10.77” (273 mm)
  • Grille Dimensions (Round)
    10.77” (273 mm) Diameter
  • Product Dimensions (with grille)
    10.77” H x 10.77” W x 4.73” D (273 mm x 273 mm x 120 mm)
  • Cut-out Diameter
    9.72” (247 mm)
  • Accessory Rough-in Bracket
    CB8
  • Mounting Depth
    4.54” (115 mm)
  • Input Type
    Gold-plated spring-loaded binding posts
  • Product Weight
    7.8 lb. (3.5 kg)
  • Shipping Weight
    10.6 lb. (4.8 kg)
