  • JBL Synthesis - 7" Speaker Passive in-wall Speaker (Ea) D2-derived 1" Mid/Twt SCL-4

JBL Synthesis - 7" Speaker Passive in-wall Speaker (Ea) D2-derived 1" Mid/Twt SCL-4

Product Code: JB-SYNSCL4

Brand
JBL
RRP $7,599.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands JBL
Series Synthesis
Size 7"
Speaker Type In-wall

SCL-4

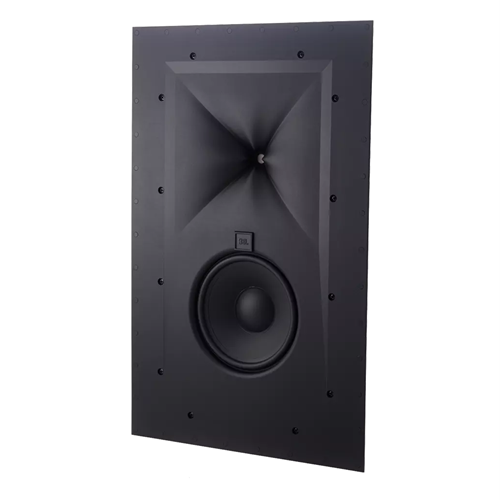

Two-way 7-inch (180mm) In-Wall Loudspeaker

The SCL-4 is a custom in-wall loudspeaker designed for use as an LCR or surround channel in a variety of applications. It features JBL's patented 2409H 1-inch (25mm) compression driver mated to a High-Definition Imaging (HDI™) horn. A 7-inch (180mm) Advanced Aluminum Matrix cone cast-frame woofer provides detailed and dynamic response with low distortion. The integrated MDF enclosure is designed for installation in standard 2x4 wood frame construction, and Internal connections allow for bi-wiring or bi-amplification in advanced installations. The SCL-4 is ideal for use in medium to large rooms.


  • PATENTED 2409H 1-INCH (25MM) COMPRESSION DRIVER
  • PATENTED HIGH-DEFINITION IMAGING HORN GEOMETRY
  • 7-INCH (180MM) CAST-FRAME, ADVANCED ALUMINUM MATRIX CONE WOOFER
  • DUAL GOLD-PLATED SPRING-LOADED BINDING POST INPUT TERMINALS

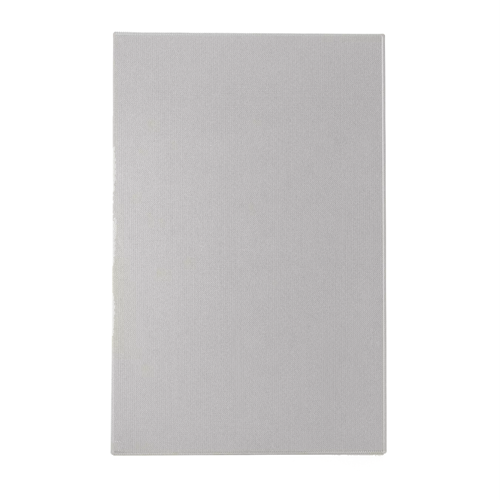

  • ZERO BEZEL MAGNETICALLY ATTACHED PAINTABLE GRILLE
  • MOLDED BAFFLE WITH INTEGRATED MDF ENCOLSURE AND ISOLATION MOUNTING SYSTEM
  • ADVANCED CROSSSOVER NETWORK WITH BI-WIRE/BI-AMP CAPABILITY


SPECIFICATIONS

General Specifications

  • Speaker Type
    Two-way In-Wall Loudspeaker
  • Low Frequency Transducer
    7” (180mm) cast-frame, advanced aluminum matrix cone woofer
  • Mid/High Frequency Transducer
    D2-derived 1" (25mm) 2409H annular ring, Teonex® diaphragm compression driver
  • Maximum Recommended Amplifier Power
    200 watts RMS
  • Frequency Response (-6dB on-axis)
    45 Hz – 33KHz
  • Coverage area (-6dB @ 20 KHz)
    100 x 100 deg, (-6dB @ 10 KHz)
  • Sensitivity (2.83V@1m)
    91dB
  • Nominal Impedance
  • 6 Ohm
  • Crossover Frequencies
    1.3 KHz
  • Enclosure type

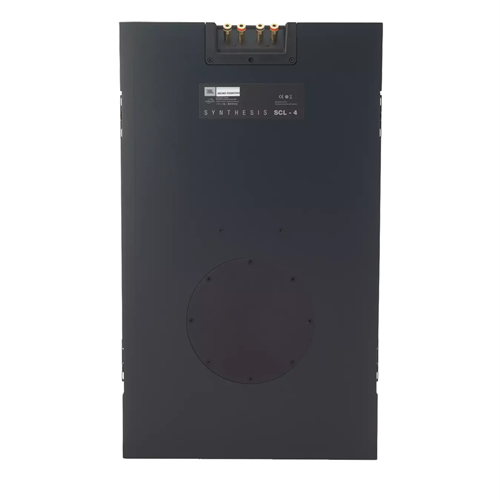

    Sealed In-Wall Mount with included back box
  • Inputs
    Dual Gold-plated Five-way Binding Posts
  • Dimensions (H x W x D)
    25" x 16.1" x 3.7" (636mm x 409mm x 93mm)
  • Weight
    27.6 lb (12.51 kg)
  • Finishes
    Matte Black
