James Loudspeaker

This is a Special Order Item

James SO-101SA-6 10" SMALL APERTURE INWALL OR CEILING Sub James

Product Code: SO-101SA-6

Brand
James
RRP $6,519.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands James Loudspeaker
Size 10"
Speaker Type Subwoofer
  • Details
  • Downloads
  • Where to Buy
  • Ordering

SA101-SUB 3" Grille Small Aperture® Subwoofer

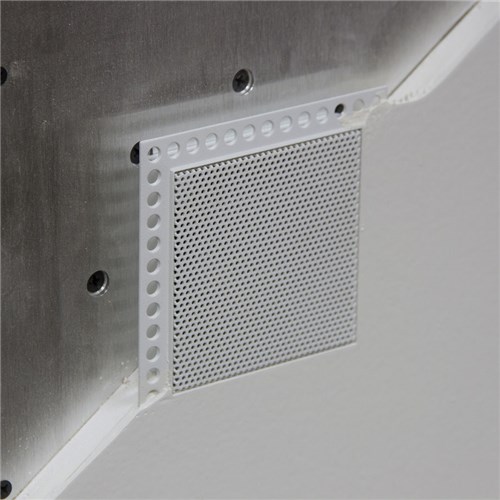

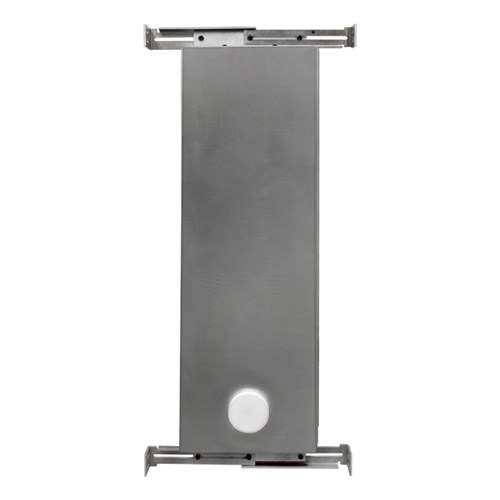

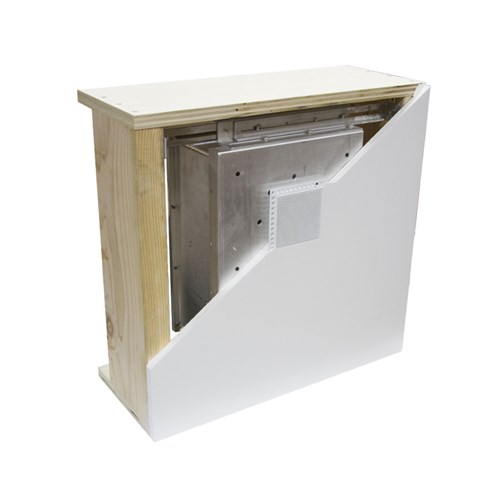

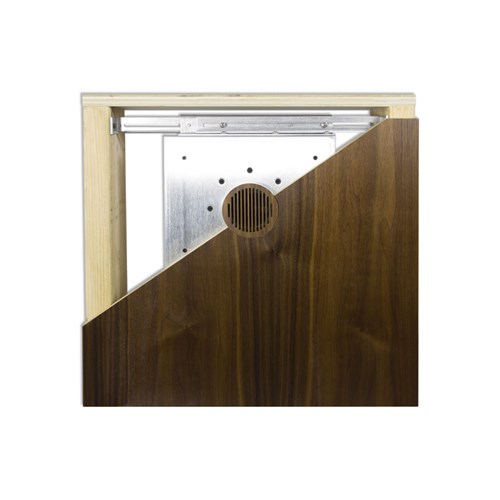

The SA101-SUB is a shallow depth, in-wall, subwoofer featuring a 5.4” deep sealed aluminum enclosure with a double-gang opening bass port. James all proprietary woofer design promises high power handling and low distortion to deliver audiophile-quality where it counts. Combined with a high output 10" (254mm) honeycomb aluminum woofer and an all new band pass cabinet design, the SA101-SUB has an impressive 87dB sensitivity with bass down to below 33Hz. When combined with our M1000 DSP amplifier, this unit delivers over 350W of pure audio performance. The sealed cabinet design features all aircraft aluminum construction for strength and sonic performance. An aluminum grille provides a subdued visual effect, designed to be as unobtrusive as possible.

The SA101-SUB conforms to UL2043 and UL1480 standards for fire safety and plenum use.

Router Template for 3" trim available, order sku: 60370  - SA3 RND & SQU ROUTER TEMPLATE



Specifications

  • Frequency Response: 33-150Hz +/-3dB
  • Nominal Impedance: 8 ohms
  • Sensitivity: 87dB 2.83V/1m
  • Recommended Power Range: 100W - 350W
  • Recommended Amplifier: M1000
  • Woofer: (1) 10" (254mm) Aluminum
  • Enclosure: Aircraft Grade Aluminum
  • Required Mounting Depth: 6 in (152.40 mm)
  • Width: 12 in (304.80 mm)
  • Depth: 5.375 in (136.53 mm)
  • Height: 34 in (863.60 mm)
  • Grille Height: 3 in (76.20 mm)
  • Grille Width: 3 in (76.20 mm)
