IS4C CommerciaI Invisible Series Speaker Sonance

Product Code: SO-40127

Brand
Sonance
RRP $1,799.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Sonance
Series Invisible Series
Speaker Type In-wall

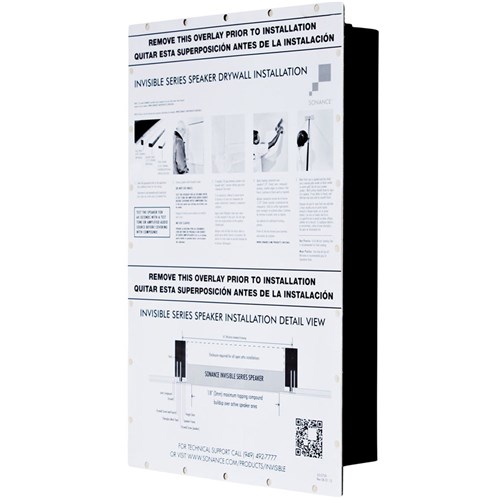

Sonance IS4 C Invisible Speaker

IS4 C

  • The benchmark for performance and installation flexibility for invisible speakers.
  • Fully concealed within walls or ceilings for a totally invisible result.
  • 70 / 100 Volt with 8 Ohm bypass
  • 6 different voltage tap settings.
  • E.A.S.E. data available.
  • 170 deg hemispherical dispersion to achieve wider coverage with fewer speakers.
  • Can be finished with up to 1/8" (3mm) of flexible material including finishing compound and paint, venetian plaster, wallpaper or wood veneer.
  • Built in enclosure to reduce sound transfer to adjacent spaces.
  • Used in luxury retail boutiques including Louis Vuitton, Gucci, Prada, Miu Miu, Fendi, Barney's of New York and Tom Ford.

The IS4 C is for any commercial or residential settings where a 70 or 100 volt system is being used. The IS4 C features all the industry standard tap settings as well as an 8-ohm bypass.

Includes integrated backcan enclosure



Tweeter 4 sq. in (27 sq. cm) planar diaphragm, driven by a 1" (25mm) voice coil
Midrange 17 sq. in (110 sq. cm) planar diaphragm, driven by a 1" (25mm) voice coil
Woofer 113 sq. in (732 sq. cm) planar diaphragm, driven by a 2" (50mm) voice coil
Frequency Response 40Hz - 20kHz ±3dB
Impedance 8 ohms nominal; 6 ohms minimum
Dispersion 170º hemispherical up to 10 kHz
Power Handling 100 watts RMS
Transformer Taps Primary voltage: 70V / 100V Primary taps (70V): 0.5W, 1W, 2W, 4W, 8W, 32W Primary taps (100V): 1W, 2W, 4W, 8W, 16W, 32W 8-ohm bypass
Sensitivity 90dB SPL (1 watt/1 meter)
Finish Paper surface ready for up to 1/8" (3mm) flexible material such as joint compound, plaster, wallpaper and paint.
Overload Protection Three independent self-resetting gel switches (low, mid and high)
Environment Temperature 0º - 125ºF (-17.7º - 51.7ºC)
Speaker Depth 3 11/16" (94mm) with enclosure
Shipping Weight 28 lbs (12.7 kg) each
Cut-Out Dimensions (W x H ) 16 1/8" x 24 1/8" (409mm x 613mm)
