Products

Hearing Loop and Induction Loop

Irt2 System Kit IRSY6 Williams AV

Product Code: WI-IRSY6

Brand
Williams AV
RRP $4,649.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands Williams AV
Product type IR Systems
  • Details
  • Downloads
  • Where to Buy
  • Ordering

SOUNDPLUS® MEDIUM-AREA INFRARED (IR T2) SYSTEM

Portable Infrared ADA Compliance Kit for Courts

Building on years of infrared audio delivery expertise, Williams Sound is pleased to introduce the new SoundPlus® IR T2 commercial-grade, medium-area infrared transmitter. Its sleek, compact footprint is ideal for assistive listening and language interpretation in commercial spaces such as conference rooms, assisted living facilities, small cinema/theaters, classrooms and courtrooms. The new IR T2 infrared transmitter offers 50 percent greater coverage than the previous IR device (WIR TX75) and new control system readiness -- all at a more affordable price. With a significantly wider coverage pattern and more power, there is no need for the additional expense of secondary units.

Induction loop system.

This system has replaced the now discontinued WIR SYS 75P PRO.

Please call for the availability of this system.

System includes
  • (1) IR T2 Medium-area Infrared Transmitter
  • (2) WIR RX22-4 Four-channel Infrared Receivers
  • (1) MIC 049 Omnidirectional Conference Microphone
  • (2) EAR 022 Surround Earphones

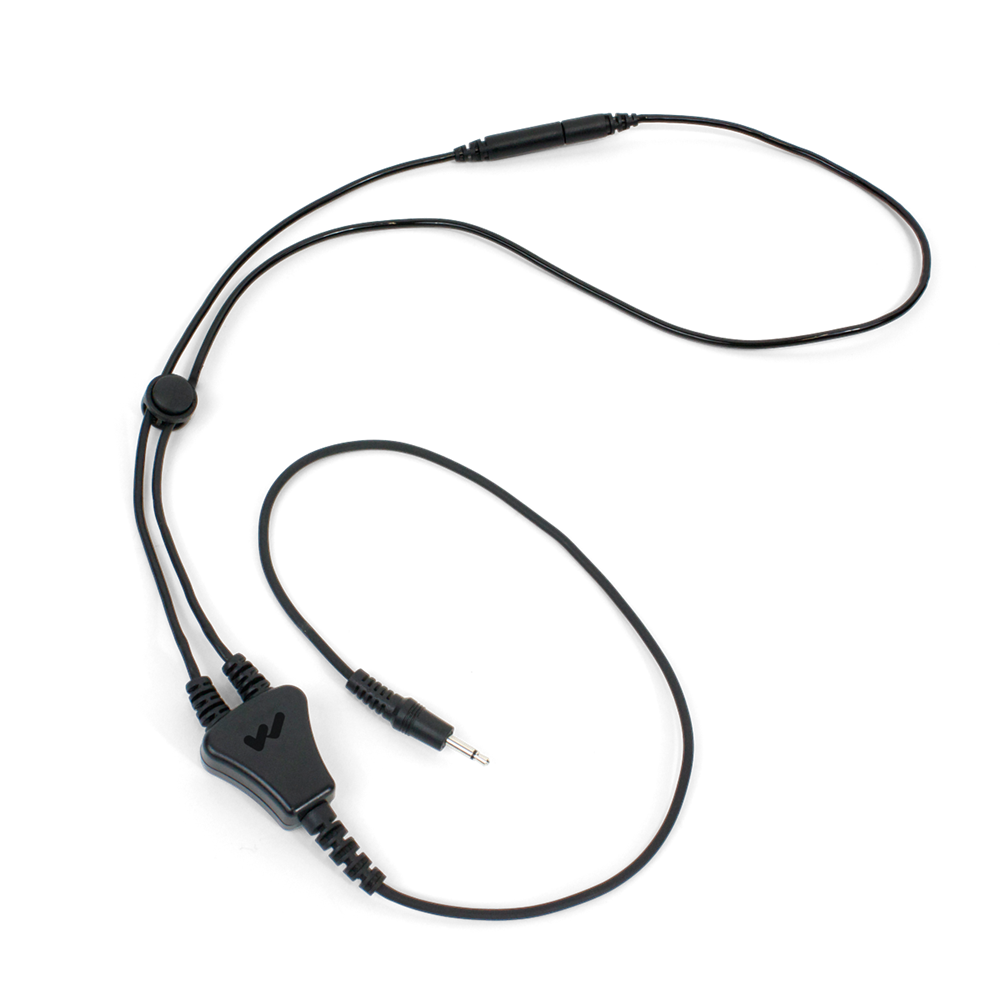

  • (2) NKL 001 Neckloops
  • (2) BAT 001-2 AA Alkaline Batteries
  • (1) IDP 008 ADA Wall Plaque
  • (1) CCS 056 Carry Case
  • (1) STD 007 Table-top Tripod
  • (1) TFP 061 Power Supply
  • (1) WCA 135 WC 12-foot Mono Cable

Specifications

ir sy6

  • Dimensions: 9.0" W (229 mm) x 3.8" D (97 mm) x 1.4" H (36 mm)
  • Weight: 0.84 lb. (0.38 kg)
  • Color: Black
  • Power Supply: TFP 061 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output
  • DC Power Input: 2.1 mm ID barrel connector, 48 VDC, 0.2A, center positive
  • Power Indicator: Green LED
  • Sleep/Power Save Mode: Shuts off carrier when no audio present for 12 minutes
  • Modulation: FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis
  • Transmit Frequencies: 2.3, 2.8, 3.3, 3.8 MHz
  • Coverage Area: Up to 18,000 sq. ft (1,673 sq. m) in single-channel mode with the RX22-4 receiver
  • Audio Inputs: Line inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio
  • Audio Indicators: One yellow LED per channel. Lights up and stay on steady with minimum audio level.
  • Signal-to-Noise Ratio: 70 dB (line input)
  • Frequency Response:
    • 95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs)
    • 125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)
  • Operating Requirements: 32°-122°F (0-50°C)
  • Mounting Kit: Wall or Ceiling mount: BKT 024 Omnidirectional mount
  • Compatible Receivers: WIR RX22-4, WIR RX18, IR R1
  • Warranty: 5 years
  • Approvals/Regulatory Compliance: CE, FCC, Industry Canada, WEEE, RoHS, CB Scheme, RCM, PSE
