IP FORMER TPA400 INFORMACAST & SYNAPPS BAR20209031

Product Code: BX-BAR20209301

Brand
Barix
RRP $665.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Barix

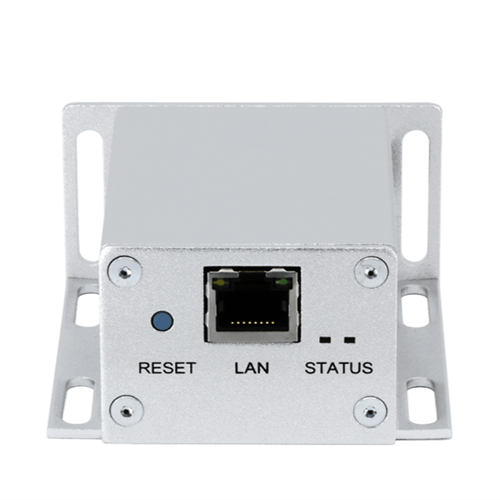

IP Former TPA400
IP Speaker Amplifier

The IP Former now supports AES67 which allows the IP Former to be used as a Dante™ end-point, turning almost any speaker into a Dante enabled speaker. Playout synchronisation allows multiple speakers to be used in the same room when RTP (Real-time Transport Protocol) sources are used.

The IP Former converts existing passive loudspeakers to network loudspeakers in various applications. It is a solid metal device that is mounting compatible to 70/100V Speaker Transformers and can therefore be mounted to any existing Speaker. A wide variety of Audio Systems, such as SIP, InformaCast and Syn-Apps are supported. Note that the InformaCast version includes a one off licence fee.

Codecs include PCM, AACplus, MP3, OPUS, G.711, G.722 that can be streamed using HTTP, RTP or UDP. Audio files can be stored on the internal memory and played via simple UDP command. The built in 8W full digital class-D audio amplifier provides high quality audio signals to a 4 or 8 Ohm in-wall, in-ceiling or tabletop speaker. The device is powered without any other cabling using Power over Ethernet (PoE). Configuration of the device is done via the internal web interface.

Applications

  • SIP and IP Paging / Notification
  • Background music
  • Emergency evacuation
  • Singlewire InformaCast integration
  • Syn-Apps Revolution integration

Features

  • 6.5W RMS @ 4 Ohm Speaker Output
  • IEEE 802.3af PoE
  • Syn-App certified
  • Singlewire certified
  • Multi-level message priority
  • AACplus, MP3, G.711, G.722 over RTP
  • SIP VoIP endpoint support

Technical Specifications

Operation System

  • Embedded Linux based on Yocto

Network Interfaces

  • 1 x Ethernet (RJ45) Interface
  • IPv4, IPv6 capable
  • 10/100 fdx/hdx, auto negotiation
  • Protocols supported: TCP/IP, UDP, RTP, SRTP SIP, SIPS,
  • HTTP, HTTPS, DHCP, mDNS/DNS-SD (Avahi), NTP
  • InformaCast and SynApps Revolution compatibility

    CPU / Memory

    • Barix IPAM400 Processor Module
    • Quad-Core ARM Cortex™ -A7
    • 256MB DDR3 L3
    • 16MB SPI Flash
    • 8GB SD-Card Flash

    Audio Formats

    • MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
    • AAC-HE (AAC, AAC plus, AAC plus V2)
    • PCM linear 16bit @ 44.1 kHz
    • G.711
    • G.722
    • GSM
    • Opus, WAV, OGG Vorbis

    Audio Interface

    • 6.5W RMS @ 4 Ohm on Screw Connector
    • 4 – 8 Ohm Speaker Impedance
    • Microphone Input 3.3VDC Bias on Screw Conn

    User Interface

    • Web interface for configuration
    • 2 x Multicolor LED Status indicators
    • Reset & Factory Defaults Button

    Power Requirements

    • IEEE 802.3af PoE

    MTBF

    • > 200’000h

    Measurement / Mechanics

    • 2.4” x 2.4” x 1.25” / 72mm x 72mm x 38mm
    • Various Mounting ears for 70/100V Transformer compatibility
    • Weight - 110g

      Warranty

      • Two year
