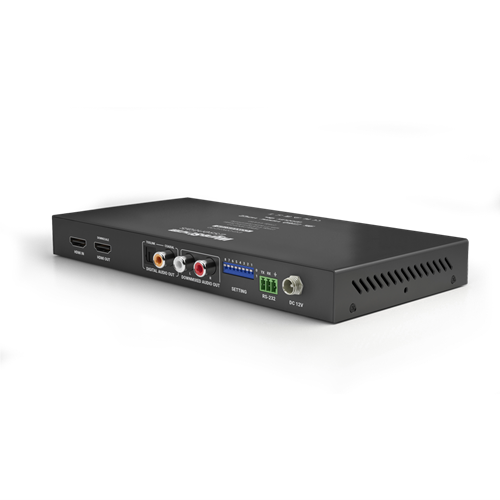

In-line HDMI scaler with Audio Breakout and Dolby & DTS Downmix , EXP-CON-H2-DD

Product Code: WY-EXPCONH2DD

Brand
Wyrestorm
RRP $539.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type Scalers and Converters
  • Details
  • Downloads
  • Where to Buy
  • Ordering

 4K/UHD in-line HDMI scaler with Dolby TrueHD™ & DTS-HD™ audio downmixing

EXP-CON-H2-DD

The EXP-CON-H2-DD is the audio tool that everyone should have. A verstile offering loaded with powerful features. Take up to Dolby True HD or DTS-HD 7.1 audio signals from an HDMI source and downmix to RCA stereo analog. Featuring 18Gbps HDMI passthrough, easily transmit 4K HDR or Dolby Vision content to a connected display or AVR. If you have an older 1080p, don't worry, as the HDMI output of the converter can scale 4K content to 1080p. If you need multi-zone audio downmixing simply rack mount up to 12 converters by using the NHD-000-RACK4.

4K HDR & DOLBY VISION
With an 18Gbps HDMI input, the EXP-CON-H2-DD supports video content up to 4K/60 4:4:4. Compatibility with the latest 4K specifications such as HDR10 and Dolby Vision ensures maximum video fidelity no matter the source you connect.

AUDIO DOWNMIXING
Powerful audio capabilities allow up to 7.1 Dolby True HD and DTS-HD signals to be downmixed to stereo RCA for multi-zone amplifiers. Audio can even be downmixed and de-embed simultaneously through the stereo and digital outputs.

RACK MOUNTABLE
The EXP-CON-H2-DD is compatible with the NetworkHD series of rack mounts. Easily mount up to 12 converters in the NHD-000-RACK4 or use the NHD-140-RACK-1U and place two converters side-by-side.

VIDEO SCALING
With maximizing compatibility in mind, the EXP-CON-H2-DD's HDMI output features a powerful scaler. Seamlessly connect a 4K HDR source and scale to 1080p if connecting to an older display.


FEATURES

  • Downmixes up to Dolby True HD and DTS-HD 7.1 signals to 2 channel analog Supports audio sampling rates up to 192 KHz
  • Simultaneous downmixing and audio de-embedding via digital audio outs and stereo RCA
  • 18Gbps HDMI passthrough for maximum video compatibility with latest 4K HDR and Dolby Vision sources
  • HDMI Output supports 4K to 2K video scaling with HDR conversion
  • Manual EDID dipswitches for easy manipulation of audio and video settings
  • RS-232 control port for integration with 3rd-party control systems
  • Supports rack mounting with the NHD-000-RACK4 or NHD-140-RACK-1U.

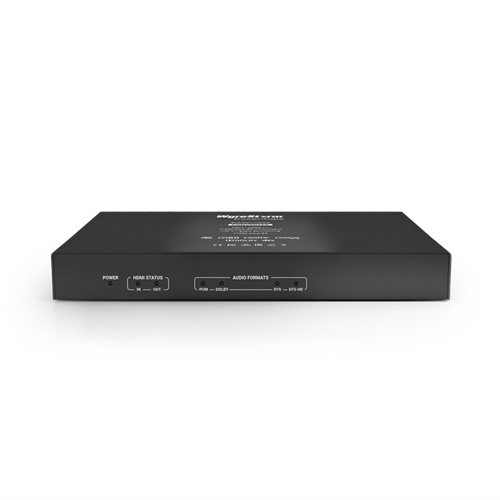

  • Front panel audio decoding LEDs for easy signal identification
  • Manufactured under license from Dolby Laboratories

SPECIFICATIONS

Video
  • HDMI: v2.0b TMDS

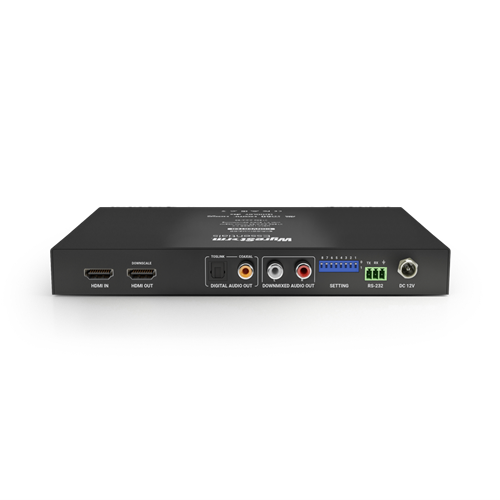

  • Inputs: 1x HDMI in: 19-pin type A
  • Outputs:
    • 1x HDMI Out: 19-pin type A
    • Scaling Output | 3840x2160p > 1920x1080p only
  • Maximum Transmission Bit Rate: 17.8Gbps
  • Video Resolutions (Max):
    • Video Resolutions                                        HDMI
    • 1920x1080p @60Hz                                    15m/49ft
    • 4096x2160p @60Hz 8bit 4:4:4                   3m/10ft
    • 3840x2160p @60Hz 10bit 4:2:0 HDR        3m/10ft
    • 3840x2160p @60Hz 12bit 4:2:2 HDR        3m/10ft
  • Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 60Hz | HLG | BT.2020 | BT.2100
  • Maximum Pixel Clock: 600MHz
Audio
  • Outputs:
    • 1 x HDMI Out: Pass-though
    • 1 x Audio Out: RCA Stereo
    • 2 x Audio Out: Mirrored S/PDIF (Coaxial & Toslink) | 5.1 bitstream or 2ch downmix
  • Audio Formats (Pass-through): HDMI: 8ch LPCM | Multichannel bitstream up to Dolby Atmos and DTS-X
  • Audio Formats (Down-mix): 8ch LPCM | Dolby TrueHD™ | DTS Master HD
  • Maximum Sampling Rate: 192KHz
  • Maximum Audio Channels
    • Inputs:
      • HDMI: 7.1Ch PCM | Dolby True HD | DTS-HD
    • Outputs:
      • HDMI: 7.1Ch PCM | Dolby True HD | DTS-HD
      • Stereo RCA: 2ch analog
      • Digital S/PDIF: 5.1ch PCM | Dolby Digital | DTS
Communication and Control
  • HDCP: Pass-through, 2.2 supported
  • EDID: Managed
  • RS-232: 1x RS-232: 3-pin Pheonix | API control
  • Consumer Electronics Control (CEC): Not Supported
  • Auto Low Latency Mode (ALLM): Not Supported
  • Variable Refresh Rate (VRR): Not Supported
Power
  • Power Supply: 12V DC 1A supplied
  • Max Power Consumption: 8W
Environmental
  • Operating Temperature: 32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing
  • StorageTemperature: -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing
  • Maximum BTU: 27.2 BTU/hr
Dimensions & Weight
  • Installation: Wall Mounted | Free Standing
  • Height: 25mm/0.98in
  • Width: 215mm/8.46in
  • Depth: 118mm/4.64in
  • Weight: 0.42kg/0.92lbs
Regulatory
  • Safety and Emission: CE | FCC | RoHS | RCM | EAC
