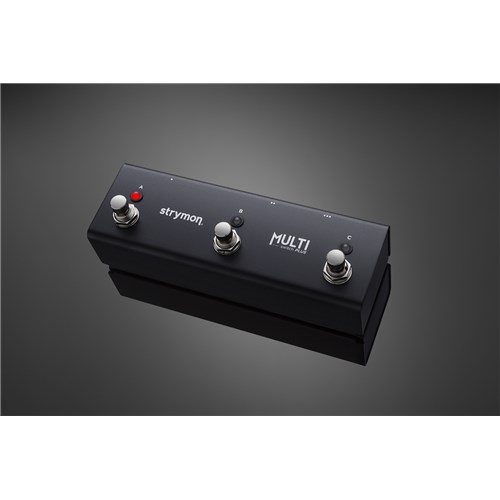

Strymon MultiSwitch Plus - Extended Control Switch

Product Code: SN-MULTI-SWITCH+

Brand
Strymon
RRP $249.00


Quantity In Cart:
Unit of Measure
EACH



1 Year
Technical Specifications
Brands Strymon
Product type Pedal
  • Details
  • Downloads
  • Where to Buy
  • Ordering

Extended Control for Compadre, Iridium, NightSky, Riverside, Sunset, Volante, and More.

Want instant access to three presets for Compadre, Iridium, Riverside, or Sunset? Or to unlock the full potential of NightSky or Volante? Connect MultiSwitch Plus with the included 1/4″ TRS cable and add a new dimension to your rig.

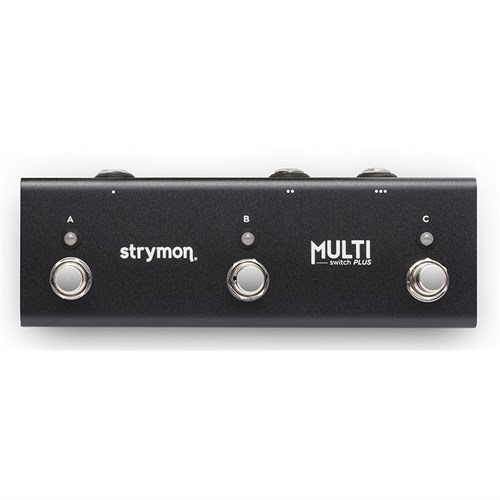

MultiSwitch Plus switches and jacks

Multiple Control Modes.

MultiSwitch Plus can be configured in several different ways to extend floor control of compatible Strymon pedals. Depending on the selected mode and the pedals connected, you can recall presets, change banks, operate TimeLine’s looper, remotely tap tempos, and more. See compatibility chart below.

Control up to Three Pedals.

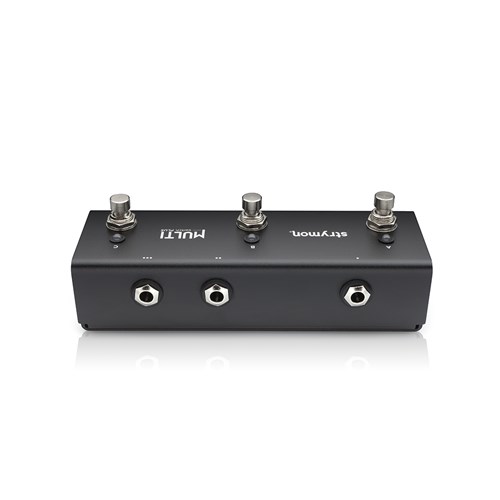

Featuring three outputs, MultiSwitch Plus allows you to connect up to three compatible Strymon pedals using additional TRS cables (sold separately). Now you can engage presets on three compatible pedals simultaneously (Compadre, Iridium, Riverside, Sunset, and Volante). Or mix and match the footswitches to set up your own custom operation—such as controlling tap tempo on your Flint, Favorite on your El Capistan, and Boost on your Riverside.

Instant Preset Access

Add a MultiSwitch Plus to your Compadre, Iridium, Riverside, Sunset, or Volante and gain instant access to presets 1, 2, and 3. Or connect three pedals to MultiSwitch Plus using additional TRS cables (sold separately) to access three synchronized presets on three pedals simultaneously.

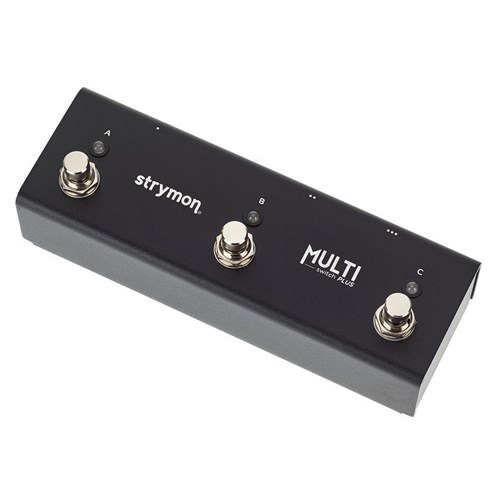

Strymon MultiSwitch Plus

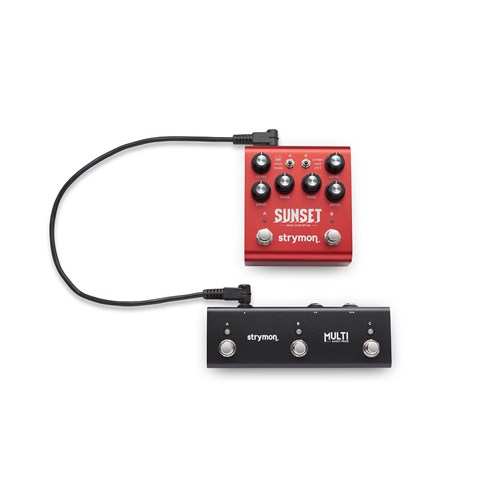

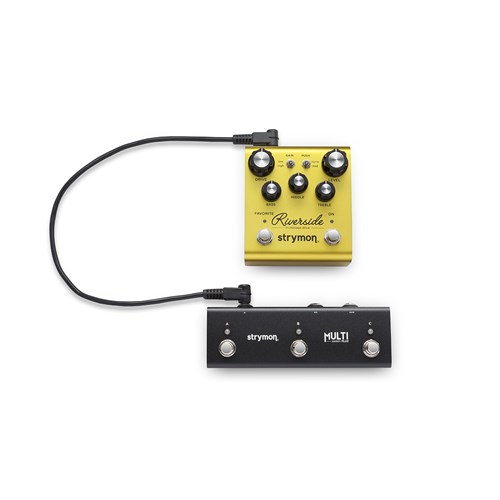

MultiSwitch Plus - Extended Control for Sunset, Riverside, and Volante

Extend Volante Functionality

Connect MultiSwitch Plus to Volante for additional footswitchable control. Use MultiSwitch Plus for remote operation of the SPEED switch, remote transport control, or for additional foot control while in Sound on Sound mode.

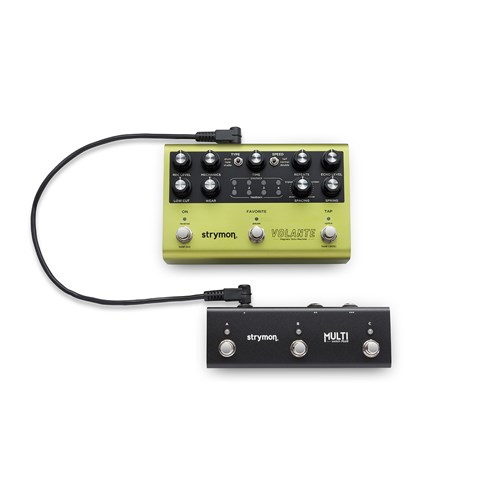

MultiSwitch Plus With Volante

Speed Control

Use MultiSwitch Plus to remotely toggle Volante’s Speed switch. Instantly alter the speed of the media, changing the fidelity and creating layered multi-octave textures.

Transport Control

Volante provides the unique ability to reverse, pause, and infinitely repeat the delayed sounds. MultiSwitch Plus opens the door to even more immediate and expressive control of these functions.

Sound On Sound Functions

MultiSwitch Plus provides remote access to three of Volante’s Sound on Sound functions. When in Sound On Sound mode, MultiSwitch Plus allows control over infinite repeats, pause, and reverse functions.

TimeLine Looper Control

Not only does MultiSwitch Plus give you full control over TimeLine’s Looper in a simple, compact format, it also unlocks three additional looping features: Reverse, Half Speed, and Undo/Redo. Use MultiSwitch Plus to control your TimeLine Looper in two different ways.
MultiSwitch Plus With TimeLine

3-Button Looper

MultiSwitch Plus allows instant access to TimeLine’s Record/Overdub, Play, and Stop functions without holding the TAP switch to enter Looper Mode. Easily access looping features while retaining footswitch control over your delay sounds.

6-Button Looper

Hold TimeLine’s TAP switch to enter looper mode, and MultiSwitch Plus now gives you instant access to Reverse, Half Speed, and Undo/Redo. Gain access to a versatile, 6-button looper that is excellent for live looping and experimentation.

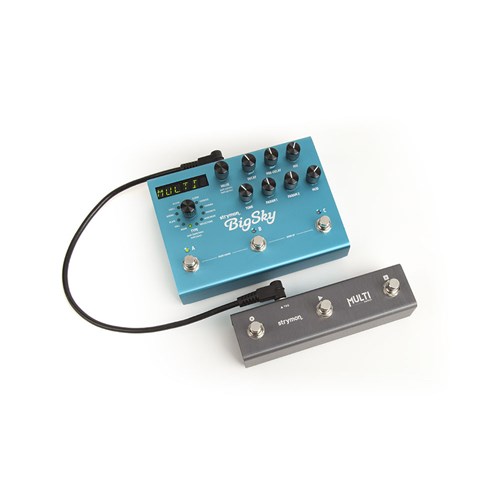

Remote Control for TimeLine, BigSky, and Mobius

MultiSwitch Plus provides an alternate way to explore presets and set tempos on your TimeLine, BigSky, and Mobius.
Strymon MultiSwitch Plus

Explore Banks

MultiSwitch Plus gives you a new means of exploring preset banks. Use the left switch to move down a bank, right switch to move up a bank, and middle switch to cycle through your presets within the current bank. A great way to explore all of your presets.

Recall Presets

Use MultiSwitch Plus to recall the perfect preset on your TimeLine, BigSky, or Mobius. Easily scroll through saved presets using the left and right switches, and engage/bypass the preset you have selected with the middle switch.

Remote Tap

Use MultiSwitch Plus to scroll through your saved presets and control your tap tempo all at once. Perfect for TimeLine and Mobius–use the left switch to scroll down through your saved presets, the right switch to scroll up, and the middle switch to tap in the perfect delay tempo or modulation speed.

External Tap, Favorite, Boost, and More

Have multiple Strymon pedals with specific remote control needs? MultiSwitch Plus allows you to independently assign footswitch functions.
MultiSwitch Plus Tav Favorite Boost Speed Modes

Remote Tap

Tap in tempos remotely on your BigSky, Deco, DIG, Flint, Mobius, Timeline or Volante.

Favorite Switch

Select the favorite preset on your Brigadier, Compadre, Deco, DIG, El Capistan, Iridium, Flint, Lex, Riverside or Sunset.

Engage Boost

Remotely engage the Boost function on your Riverside.

Speed Control

Remotely toggle the Fast Rotor Speed on your Lex.

Compatibility

Mode Description Compatibility
Preset Mode Adds the ability to select and bypass onboard presets 1, 2, and 3. blueSky V2, Cloudburst, Compadre, Deco V2, DIG V2, El Capistan V2, Flint V2, Iridium, Lex V2, NightSky, Riverside, Sunset, Volante, Zelzah
Custom Mode Provides remote access to Volante’s Speed switch, and enhances transport controls. NightSky, Volante
TimeLine, BigSky, and Mobius Mode Expanded preset selection control. Dedicated looper controls (TimeLine). BigSky v1.49, Mobius v1.39, TimeLine v1.87
Tap/ Fav/ Boost/ Speed/ Freeze/ Infinite Mode Each footswitch is paired with the closest output and its function can be independently assigned. Tap: BigSky, Deco V2, DIG, DIG V2, El Capistan V2, Flint, Flint V2, Lex V2, Mobius, TimeLine, Volante, Zelzah
Fav: blueSky V2, Brigadier, Cloudburst, Compadre, Deco, Deco V2, DIG, DIG V2, El Capistan, El Capistan V2, Flint, Flint V2, Iridium, Lex, Lex V2, Riverside, Sunset, Zelzah
Boost: Riverside
Speed: Lex
Freeze/Infinite: Cloudburst
Combo Mode Footswitches A and B will select between presets 1 and 2 for pedals connected to outputs 1 and 2. Footswitch C can be used for remote tap tempo, favorite, boost, freeze, infinite or speed for the pedal connected to output 3. Presets: blueSky V2, Cloudburst, Compadre, Deco V2, DIG V2, El Capistan V2, Flint V2, Iridium, Lex V2, NightSky, Riverside, Sunset, Volante, Zelzah
Tap: BigSky, Deco V2, DIG, DIG V2, El Capistan V2, Flint, Flint V2, Lex V2, Mobius, TimeLine, Volante, Zelzah
Fav: blueSky V2, Brigadier, Cloudburst, Compadre, Deco, Deco V2, DIG, DIG V2, El Capistan, El Capistan V2, Flint, Flint V2, Iridium, Lex, Lex V2, Riverside, Sunset, Zelzah
Boost: Riverside
Speed: Lex
Freeze/Infinite: Cloudburst

Specs & FAQ

  • What is the difference between MultiSwitch Plus and MultiSwitch? MultiSwitch Plus offers all of the functionality of MultiSwitch, but provides additional compatibility options, three outputs for connecting multiple Strymon pedals, and LEDs.

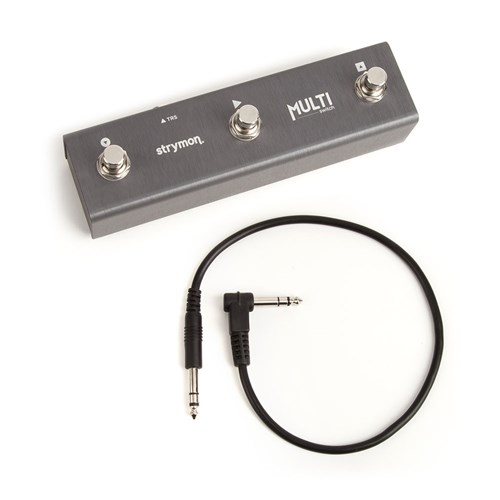

  • Is a cable included? Yes, MultiSwitch Plus comes with one 1/4″ right angle TRS cable.
  • Can’t I use a MIDI controller to access some of these functions? Certainly—if you’d like, you can access these features using MIDI. MultiSwitch Plus is geared towards those that don’t want or don’t need to use MIDI in their rigs. MultiSwitch Plus is connected via a standard TRS cable and does not require a separate power supply.
  • Do I need to update the firmware on my TimeLine, BigSky, Mobius, Sunset, Riverside, or Volante to use MultiSwitch Plus? In some cases yes. Please visit strymon.net/update for information on how to check your firmware version, and how to update your firmware. All TimeLine, Mobius, and BigSky pedals built as of February 1, 2019 will ship with firmware that is compatible with MultiSwitch Plus. If your TimeLine, Mobius, or BigSky was built before this date then it will require a firmware update.
  • How do the LEDs function in the different modes? Depending on how MultiSwitch is configured, the LEDs indicate the currently loaded preset or the status of the Boost or Speed setting for connected pedals. The LEDs do not function in Timeline, BigSky & Mobius mode because communication with TimeLine, BigSky and Mobius via the EXP jack is not bi-directional. Custom mode LED functionality varies depending on the connected pedal and how it is configured.
  • What pedals are compatible with MultiSwitch? Please see Compatibility Chart above.

All Strymon products are Designed and Built in the USA.
