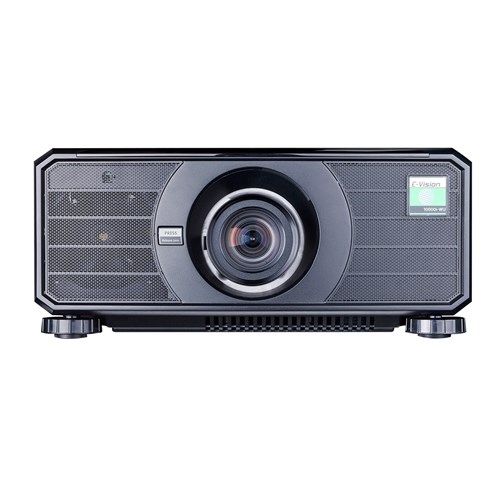

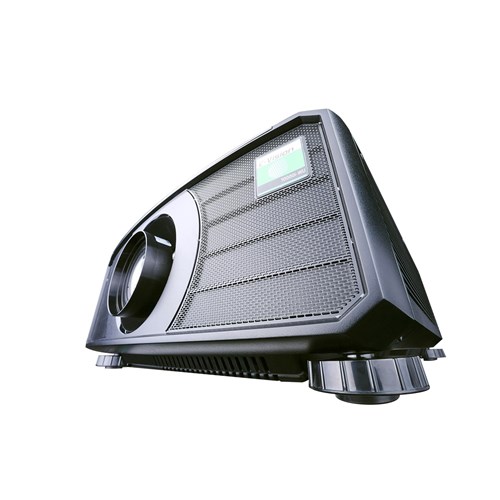

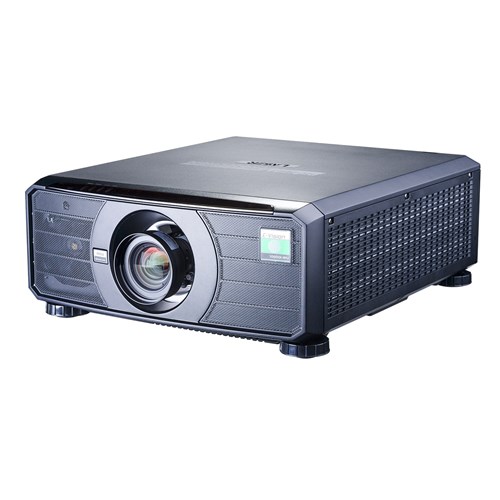

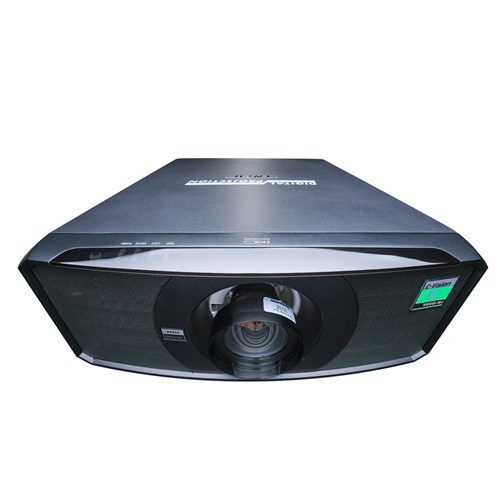

E vision 8000i WUXGA 7600lm laser DLP exchangeable lens Digital Projection

Product Code: DA-123-532

Brand
Digital Projection
$15,699.00 inc GST
RRP $15,699.00

Special Order Item
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands Digital Projection
Aspect Ratio 16:10
Native Resolution WUXGA
Projector Category Large Venue
Series E-Vision
  • Details
  • Downloads
  • Where to Buy
  • Ordering

E-Vision 8000i WU


The new E-Vision 8000i shares the same advanced capabilities usually reserved for high-end 3-Chip products

The E-Vision 8000i laser projector delivers a stunning 8,000 lumens from a stable solid-state light source, capable of producing over 20,000 hours of illumination. This single chip projector was developed with Fit and Forget’ directive, ensuring it needs only minimal maintenance throughout the lifetime of the display.

Like it’s big-brother, the E-Vision 8000i, it features a wide range of impressive upgrades to its electronics platform, providing you with a consistent experience across all the range. With advanced features such as Brightness Sync, Source Redundancy and a 4 Segment RGBY 2 x 7200rpm (120Hz) colour wheel, it produces images that were previously unachievable in this single chip range.

Key Features

  • 8,000 ISO / 7,200 ANSI Lumens
  • WUXGA Resolution
  • 20,000:1 Dynamic Contrast
  • Sealed Optics
  • Part Number: 123-532


Core Technologies

Nexus
Our Next Generation Electronics Platform
Our Next-generation electronics platform has been designed to deliver the most advanced image processing to all projectors. Whichever of our projectors you use, you will be totally familiar with its operation, OSD menu structure and functionality, all of which is seamlessly integrated into our free, Projector Control II software.

IP6x Sealed Optics
The optical system, from the laser light source up to the lens is completely sealed is IP6x rated. This ensures that light output and colour performance will not be degraded due to the ingress of dust. Additionally, this projector is completely filterless as the system is liquid cooled and uses a radiator heat exchanger, minimising maintenance as no replacement or cleaning of filters is necessary and allows unrestricted airflow.

Source Redundancy
Source redundancy offers peace of mind for those critical live events. When the main signal is lost, the projector will switch to the backup source to automatically

Flexible Geometry Adjustment
Intuitive adjustment which can be adjusted via PC tool or Remote Controller with a grid on-screen which is synchronized with PC tool

Art-Net Support
Stage controller with Art-Net can directly control the projector (power on/off/brightness adjustment) by network without the need for any DMX to-Net Converter

Intelligent Lens Memory
Intelligent Lens Position Memory which can quickly reset the lens position defined by the user including focus, zoom and lens shift

24/7 operation
The E-vision 8000i boasts stable 24/7 operation via efficient heat dissipation and excellent thermal conductivity ensures peak-performance and reliability

Key Specifications:

  • Colour System:    Laser Phosphor
  • Display Type:    1 x 0.67" DarkChip™ DMD™
  • DMD Specification:    1920 x 1200 pixels native display.
  • Fast transit pixels for smooth greyscale and improved contrast.
  • Aspect Ratio:    16x10
  • Fill Factor    87%

Key Features:

Video & Graphics Processing

  • HDMI 2.0
  • DisplayPort 1.2
  • Side by Side, Frame Packing, Frame Sequential, TopBottom and Dual Pipe 3D Formats.
  • Syncronisation of active glasses or polarising switcher.
  • DICOM simulation mode (For non-diagnostic or training)
  • HDR support
  • 2D Smear reduction

Geometry Correction

  • Vertical & Horizontal Keystone correction
  • Four Corner adjustment
  • Selectable aspect ratios: 5:4 / 4:3 / 16:10 /16:9 / 1.88 / 2.35 / TheaterScope / Source / Unscaled
  • Digital Zoom

HDBaseT Interface

  • Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
  • Allows the projector to be placed up to 100m from the source with low cost cabling.
  • HDBaseT® Includes Ethernet 100BaseT and RS232/IR control.

Colour Processing

  • Phosphor wheel: 2 x 7200rpm (120Hz)
  • Colour wheel: 4 Segment RGBY 2 x 7200rpm (120Hz)
  • 10-bit colour processing (30-bits per pixel) 1,073,741,824 colours
  • Powerful seven point colour correction for accurate colour matching.

Source Compatibility:

  • Graphics standards: Up to WUXGA 1920 x 1200 - 120Hz RB

Inputs/Outputs

  • Video & Computer
    • HDMI 2.0 x 2
    • DisplayPort 1.2 x 2
    • HDBaseT x 1
    • 3G-SDI in x 1
    • 3G-SDI out x 1
  • Communication & Control
    • 3D Sync In x 1
    • 3D Sync Out x 1
    • 3D Sync IR x 1
    • LAN / Art-Net x 1
    • HDBaseT/Ethernet/RS232/IR x 1
    • Serial In RS-232C x 1
    • Serial Out RS-232C x 1
    • Wired Remote In x 1
    • Wired Remote Out x 1
    • 12V Trigger x 1
    • USB Power out 5V/2A  x 1

3D Formats Supported

  • Frame Packing
  • Dual Pipe
  • Frame Sequential
  • Side By Side (half)
  • Top and Bottom

HDTV Formats Supported

  • SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N), SECAM (B,D,G,K,K1,L) Display Support for 2K 2048 x 1080 up to 60Hz and 4K-UHD 3840 x 2160 up to 60Hz

Computer Compatibility

  • VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac

Remote Control

  •  Infrared Remote Control Unit

Automation Control

  • LAN - Webpage control
  • TCP/UDP control
  • RS-232
  • Alert Mail for Projector
  • LAN Control-Crestron® Connected
  • LAN Control-PJ Link Class 1 compatible
  • LAN Control-AMX® Device Discovery
  • Art-Net (DMX) control

Colour Temperature

  • User selectable (3200K/ 5400K / 6500K / 7500K / 9300K / Native )
Operation
  • 24/7

illumination Type

  •  Laser Phosphor

Typical illumination Life

  • 20,000 hours
Lens Part No. Optimised Focus Range* Lens Shift (Frame)
0.38 :1 fixed 117-341 0.68m - 2.44m Depends on image size, see Installation Guide.
0.75 - 0.93 :1 zoom 115-339 1.02m - 12.7m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
0.76 :1 fixed 112-499 0.81m - 5.08m none
1.25 - 1.79 :1 zoom 112-500 1.33m - 11.73m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
1.73 - 2.27 :1 zoom 112-501 1.83m - 14.9m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
2.22 - 3.67 :1 zoom 112-502 2.36m - 24.2m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
3.58 - 5.38 :1 zoom 112-503 3.8m - 35.35m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
5.31 - 8.26 :1 zoom 112-504 5.59m - 54.8m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame


* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%

Lens Mount

  • Motorised and programmable shift, zoom and focus.
  • Intelligent Lens Memory with 10 user-definable preset positions (except UST lens).

Mechanical Mounting

  • Front/Rear Table
  • Front/Rear Ceiling
  • Adjustable Front/Rear Feet
  • Ceiling Mount compatible chassis with 6 off M4*0.7 mounting holes available, Maximum screw length 16mm

Orientation

  • Table Top or Inverted: Yes
  • Pointing Up:        Yes
  • Pointing Down:   Yes
  • Roll (Portrait):      Yes

Power Requirements

  • 100-240VAC 50/60Hz single phase 6.8A

Power Consumption

  • 442W @ 240VAC (100% Normal mode) 473W @ 100VAC (100% Normal mode) Standby: <0.5W (Network Off), <2W (Network On)

Thermal Dissipation

  • 1507 BTU/Hour @ 240VAC (100% Normal mode) 1613 BTU/Hour @ 100VAC (100% Normal mode)

Fan Noise

  • 34 dBA typical

Operating/Storage Temperature:

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Force ECO over 35°C (95°°F)

Operating Humidity

  • 20%-90% non-condensing

Weight

  • 27.5 kg / 60.6 lbs

Dimensions

  • L: 598mm x W: 500mm x H:218mm
  • L: 23.54 inch x W: 19.68 inch x H: 8.58 inch

Safety & EMC Regulations

  • CB report, cTUVus, CE (European Economic Area), UKCA (United Kingdom), CCC (China), CECP (China Energy Conservation Program), CELP (China Environmental Labeling Program), China RoHS, FCC Class A (USA), FDA, KC (Korea), BSMI (Taiwan), RCM (Australia), IEC 60825-1 Ed3 :2014 - Class 1 Laser Product, IEC EN 62471-5:2015 - Risk Group 2 & 3 (Lens dependent)
