Products

Digital Projection

This is a Special Order Item

E vision 6100 Lm WUXGA with fitted 0.5:1 lens digital projection

Product Code: DA-123-844

Brand
Digital Projection
$7,499.00 inc GST
RRP $7,499.00

Special Order Item
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



3 Year
Technical Specifications
Brands Digital Projection
Aspect Ratio 16:10
Native Resolution WUXGA
Projector Category Multimedia
  • Details
  • Downloads
  • Where to Buy
  • Ordering

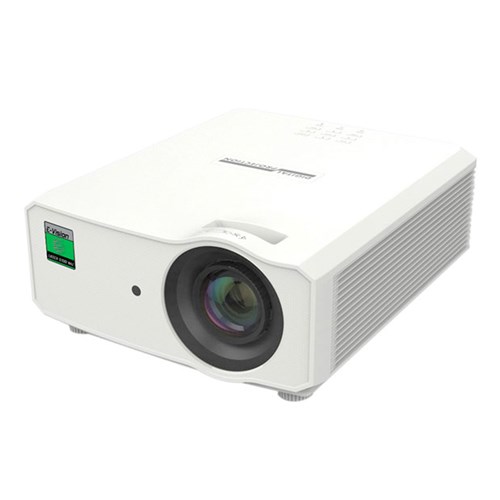

E-Vision 6110-WU


Exceptional Value & Class Leading Performance 1-DLP Laser Projectors

Incredibly budget-friendly laser projector
Compact and powerful, the E-Vision 6110-WU delivers an impressive 6,100 lumens and weighs in at only 12Kg, and offers a very quiet operation noise of only 39 dBA. This single chip DLP Laser projector offers 20,000 hours of stable and near-maintenance free illumination.

The E-Vision 6110WU projector includes an ultra short-throw 0.5:1 fixed lens with a 0.6 offset, allowing it to be mounted well above the screen and out of the line of sight of viewers. This lens option makes it an impressively compact, entry-level imaging solution ideal for museums, lecture theatres, corporate boardrooms, digital signage and similar applications needing bright imagery at remarkably accessible price points.

With a multitude of connectivity options and a packed feature list of video and graphics processing, this projector also offers 10-bit colour display and a 4 Segment (RGBY) Colour wheel, ensuring excellent colour reproduction.

Key Features

  • 6,100 ISO / 5,500 ANSI Lumens
  • Contrast Ratio: 2,200:1 Native, 20,000:1 Dynamic, 500,000:1 (Advanced Black)
  • Part Number: 123-844

Key Specifications

  • Colour System:    Laser Phosphor
  • Display Type:    1 x 0.67" DarkChip™ DMD™
  • DMD Specification:
    • 1920 x 1200 pixels native resolution.
    • Fast transit pixels for smooth greyscale and improved contrast.
  • Aspect Ratio:    16x10
  • Key Features:
    • Video & Graphics Processing
      • HDMI 1.4a mandatory compliance for Side by Side, Frame Packing, Frame Sequential and TopBottom 3D Formats.
      • Synchronisation of active glasses or polarising switcher.
      • DICOM simulation mode
    • Geometry Correction
      • Vertical & Horizontal Keystone correction
      • Four Corner adjustment
      • Selectable aspect ratios: Fill, 4:3, 16:9, Letter Box, Native, 2.35:1
      • Digital Zoom +10 / -10
    • HDBaseT Interface
      • Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
      • Allows the projector to be placed up to 100m from the source with low cost cabling.
      • HDBaseT® Includes Audio, Ethernet 100BaseT and RS232/IR control.
    • Colour Processing
      • Phosphor wheel: 3 Segment GBY 2 x 7200rpm
      • Colour wheel: 4 Segment RGBW 2 x 7200rpm
      • 10-bit colour processing (30-bits per pixel)
      • Powerful seven point colour correction for accurate colour matching.
    • Source Compatibility
      • Graphics standards up to 1920 x 1200 resolution at 60Hz
  • Inputs/Outputs
    • HDMI 1.4a X 3
    • HDBaseT-(LAN/HDBaseT) x 1
    • VGA / Analog RGB x 1
    • VGA Monitor out x 1
    • Composite Video x 1
    • Microphone In x 1
    • Audio L/R In x 1
    • Audio L/R In x 1
    • Audio L/R Out x 1
  • Communication & Control
    • 3D Sync Out x 1
    • LAN x 1
    • HDBaseT with Ethernet \ RS232 x 1
    • \IR control x 1
    • Serial RS-232C (In/Out) x 1
    • Service USB x 1
    • USB Power out 5V/1.5A x 1
    • 3D Formats Supported
      • Frame Packing
      • Frame Sequential
      • Side By Side (half)
      • Top and Bottom
    • HDTV Formats Supported    SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N), SECAM (B,D,G,K,K1,L)
    • Computer Compatibility    VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac
    • Remote Control    IR remote control
    • Automation Control
      • LAN
      • RS-232
      • Alert Mail for Projector
      • LAN Control-Crestron® Roomview™-Connected
      • LAN Control-Crestron® eControl
      • LAN control - Extron®
      • LAN Control-PJ Link compatible
      • LAN Control-AMX® SSDP
      • LAN to RS232 (RS232 by Telnet)
      • Concurrence Control for RS232/LAN
      • PJ Link (Class 1)
    • Colour Temperature:    Warm / Normal / Cold
    • illumination Type:    Laser Light Source
    • Typical illumination Life:    20,000 hours
    • Lens Mount:    Manual focus
    • Mechanical Mounting:
      • Front/Rear
      • Front/Rear Ceiling
      • Two adjustable front feet, 10° (43mm)
      • Ceiling Mount compatible chassis with 7 off M4 mounting holes
      • Kensington® Security Slot
    • Orientation
      • Table Top or Inverted: Yes
      • Pointing Up:        Yes
      • Pointing Down:   Yes
      • Roll (Portrait):      Yes
    • Power Requirements:    100-240VAC 50/60Hz single phase
    • Power Consumption:    515W @ 230VAC (100% Normal mode) Maximum 530W @ 100VAC (100% Normal mode) Maximum
    • Thermal Dissipatio:n    1757 BTU/Hour @ 230VAC (100% Normal mode) 1808 BTU/Hour @ 100VAC (100% Normal mode)
    • Fan Noise:    Normal Mode Typ: 39 dBA
    • Operating/Storage Temperature:
      • Operating: 0° to 40°C (32F to 104F)
      • Storage: -20° to 60°C (-4F to 140F)
    • Operating Humidity:    10 to 85% non-condensing
    • Weight:    12 kg / 26.45 lbs
    • Dimensions:
      • L: 43.71 cm W: 36.0 cm H: 17.83 cm
      • L: 17.2 in W: 14.17 in H: 7.02 in
