Dual Lens Auto Tracking Cam TR535 AVER

Product Code: AF-TR535

Brand
Aver
RRP $7,949.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands AVer
Native Resolution 4K
  • Details
  • Downloads
  • Where to Buy
  • Ordering

TR535

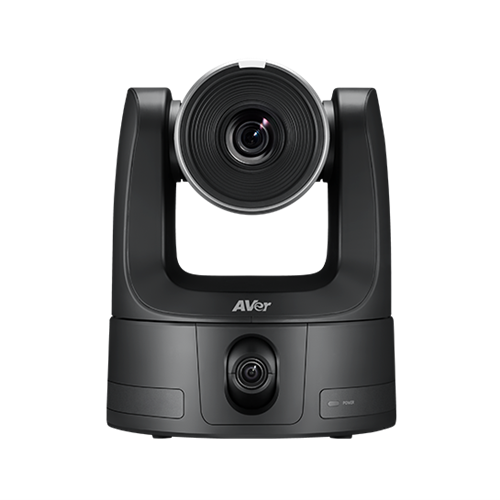

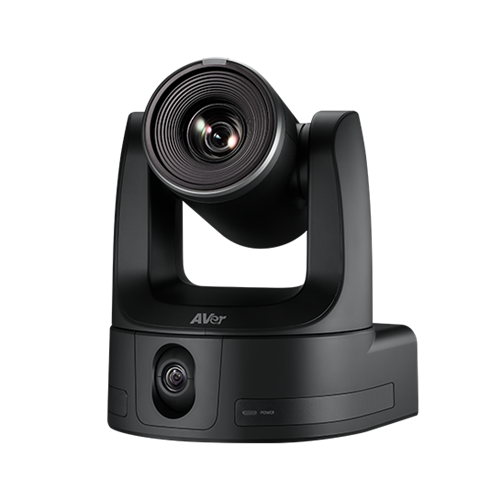

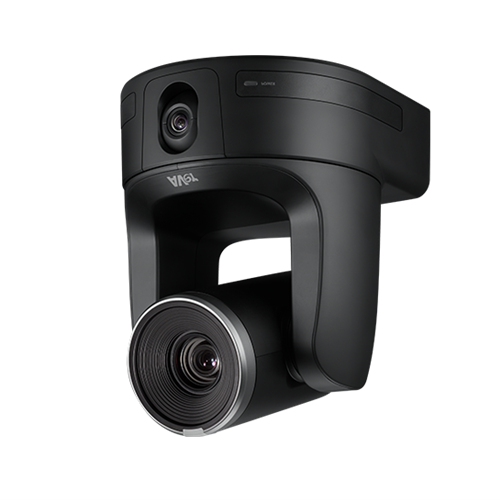

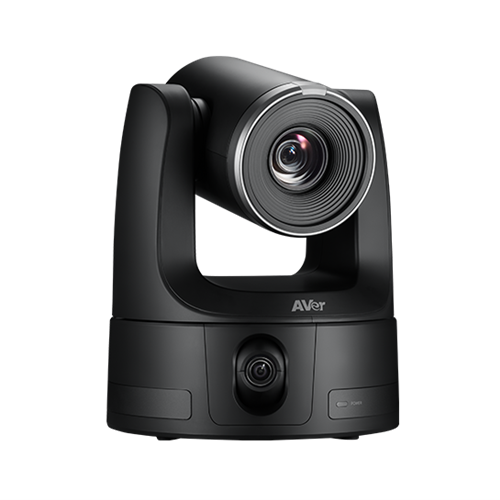

Dual Lens Auto Tracking Camera
Enter the future of streaming excellence with AVer’s TR535, featuring AI auto tracking capabilities for diverse applications. The TR535 offers a stellar 30X zoom and a sweeping wide-angle view. The wide-angle lens captures the whole scene while the 4K PTZ camera zooms in for close-ups, ensuring complete coverage. Fueled by four advanced AI-driven tracking modes, the TR535 delivers unparalleled precision for broadcasting, streaming, and recording environments.

  • Dual Lens Design
  • 4K Ultra HD Resolution
  • 30X Optical Zoom
  • IP/HDMI/USB/3G-SDI
  • PiP Mode
  • 4 Auto Tracking Modes
  • Multi-Presenter Detection
  • Human Detection AI
  • Voice Tracking*

Specifications

PTZ Camera

  • Image Sensor: 1/2.8” 4K Sony Exmor CMOS
  • Effective Picture Elements: 8 Megapixels
  • Output Resolutions: 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
  • Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps)
  • S/N Ratio: ≥ 50 dB
  • Gain: Auto, Manual
  • TV Lines: 1600 (Center)
  • Shutter Speed: 1/1 to 1/10,000 sec
  • Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance: Auto, Manual, ATW, One Push, Indoor, Outdoor
  • Optical Zoom: 30X
  • Digital Zoom: 1X
  • Total Zoom: 30X
  • Viewing Angles:
    • DFOV: 69.2° (Wide) to 2.8° (Tele)
    • HFOV: 62.3° (Wide) to 2.5° (Tele)
    • VFOV: 37.3° (Wide) to 1.4° (Tele)
  • Focal Length: f = 4.5 mm (Wide) to 135 mm (Tele)
  • Aperture (Iris): F = 1.8 (Wide) to 4.7 (Tele)
  • Minimum Working Distance:
    • 0.1 m (Wide)
    • 1.2 m (Tele)
  • Pan / Tilt Angles:
    • Pan : ±170°
    • Tilt : +90° / -30°
  • Pan / Tilt Speed (Manual):
    • Pan : 0.1° to 100° / sec
    • Tilt : 0.1° to 100° / sec
  • Preset Speed:
    • Pan : 200° / sec
    • Tilt : 200° / sec
  • Preset Positions:
    • 10 (IR)
    • 256 (RS-232, RS-422, IP)
  • Camera Control - Interfaces:
    • RS-232 (DIN8)
    • RS-422 (RJ45)
    • IP
    • USB
  • Camera Control - Protocols:
    • VISCA (RS-232 / RS-422 / IP)
    • PELCO-D & PELCO-P (RS-232 / RS-422)
    • CGI (IP)
    • USB
    • ONVIF
  • Image Processing:
    • Noise Reduction (2D / 3D)
    • Flip
    • Mirror
    • WDR
    • BLC
  • Power Frequencies: 50 Hz, 60 Hz

Wide Angle Camera

  • Image Sensor: 1/2.8” 4K Sony Low Lux CMOS
  • Effective Picture Elements: 8 Megapixels
  • Output Resolutions: 4K/30
  • Focal Length: 2.22 mm
  • White Balance: Auto
  • Exposure: Auto
  • Viewing Angles:
    • DFOV: 113°
    • HFOV: 105°
    • VFOV: 71°
  • Pan / Tilt Angles: Tilt: +18° / -90°

AI Auto Tracking Functions

  • Tracking Modes:
    • Presenter Mode
    • Zone Mode
    • Hybrid Mode
    • Segment Mode

Privacy Protection Mechanisms

  • Protection Mode: Sleep Mode

Audio

  • Channels: 2ch Stereo
  • Codecs: AAC-LC (48 K)
  • Sample Rates: 48 KHz

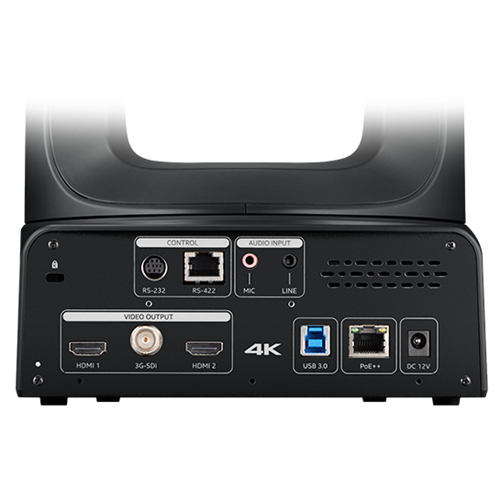

Interface

  • Video Outputs: 3G-SDI, HDMI x 2, IP, USB
  • Audio Outputs: 3G-SDI, HDMI x 2, IP, USB
  • Audio Inputs: MIC in, Line in

General

  • Power Requirement: AC 100 - 240V to DC 12V/5A
  • Power Consumption: 29W
  • PoE: PoE++
  • Dimensions (W x H x D): 202.5 x 250.7 x 218.5 mm
  • Net Weight: 3.6 (±0.1) kg
  • Application: Indoor
  • Tally Lamp: Yes
  • Security: Kensington Slot
  • Remote Control: Infrared
  • Operating Conditions:
    • Temperature: 0 °C to +40 °C
    • Humidity: 20% to 80%
  • Storage Conditions:
    • Temperature : -20 °C to +60 °C
    • Humidity: 20% to 95%
  • Sustainability:
    • Plastic Material: ABS
    • Sustainability Method: PCR-PC
    • Recycled Content %: 30%

IP Streaming

  • Resolution: 4K 60fps
  • Network Video Compress Formats: H.264, H.265, MJPEG
  • Network Audio Compress Formats: AAC-LC (48 K)
  • Maximum Frame Rate: 2160p 60fps
  • Bit-Rate Control Modes: VBR, CBR (selectable)
  • Range of Bit-Rate Setting: 512 Kbps to 64 Mbps
  • Network Interface: 10 / 100 / 1000 / 2500 Base-T
  • Multi-Stream Capability:
    • 7
    • 4K 60fps: RTSP (x2), HDMI (x2) & USB (x2)
    • 1080p 60fps: 3G-SDI
  • Network Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
  • NDI ® High Bandwidth: N/A
  • NDI ® HX2: N/A
  • NDI ® Genlock: N/A
  • NDI ® Embedded Bridge: N/A

USB

  • Connector: USB 3.2 Gen 1
  • Video Formats: MJPEG, YUY2
  • Audio Format: PCM
  • Maximum Video Resolution: 2160p
  • USB Video Class (UVC): UVC 1.1
  • USB Audio Class (UAC): UAC 1.0

Web UI

  • Live Video Preview: Yes
  • Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
  • Camera / Image Adjustment: Exposure, White Balance, Picture
  • Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

  • IP Search and Configuration Tool: Support Windows® 7 or later
  • PTZ Management: Support Windows® 7 or later
  • PTZ Control Panel: Supports iOS & iPadOS® 9 or later
  • PTZ Link: Supports Windows® 7 or later, macOS® 10.14 or later
  • OBS Plugin for PTZ Cameras: Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
  • CaptureShare: Supports Windows® 7 or later, macOS® 10.14 or later

  • Package Contents: Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x 7), M2 x 4 mm Screw (x 5), M3 x 6 mm Screw (x3), 1/4'-20L 6.5mm Screw (x2), Cable Fixing Plate (x 2), Ceiling Mount Bracket (x 2), Drilling Paper, Quick Start Guide
  • Optional Accessories: AVer CL01 PTZ Camera Controller, L-Type Wall Mount
