Digiwave System Pack V4.0 DWSCOM8-400 Williams AV

Product Code: WI-DWSCOM8-400

Brand
Williams AV
RRP $12,349.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Williams AV

Digi-Wave 400 Wireless Intercom System

INTERCOM & TOUR SYSTEMS

DWS COM 8 400

Digi-Wave 400 Series Wireless Intercom System for up to eight participants.

System Includes

  • (8) DLT 400 transceivers
  • (8) MIC 144 headset microphones
  • (8) DW ACC PAC4
  • (1) CCS 056 DW 11 system carry case
  • (1) CCS 061 GR grey silicone skin
  • (7) CCS 061 BK black silicone skins.

Specifications

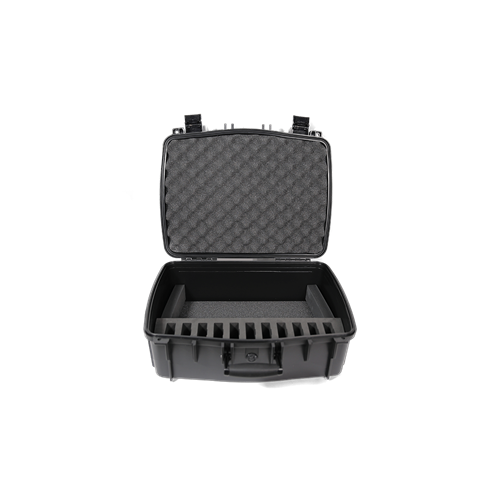

CCS 056 DW 11
  • Interior Dimensions:    13.0” W x 18.0” L x 6.7”H (33 cm W x 46 cm L x 17 cm H)
  • Exterior Dimensions:    15.7” W x 19.7” L x 7.2” H (40 cm W x 50 cm L x 18 cm H)
  • Lid Inner Depth:    1.5” (4 cm)
  • Bottom Inner Depth:    5.2” (13 cm)
  • Approx. weight (empty):    6.6 lbs (3 kg)
  • Material:    Copolymer
  • Minimum Temperature:    -40ºF (-40ºC)
  • Maximum Temperature:    160ºF (71.1ºC)

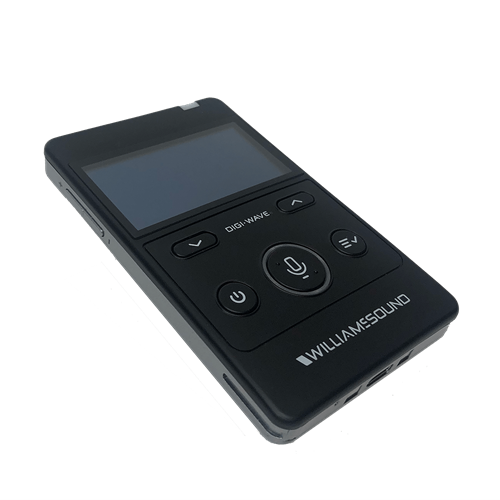

DLT 400
  • Dimensions:    4.22"W x 2.60"H x 0.50"D (107.3 mm x 66 mm x 12.6 mm)
  • Weight:    3.3 oz (94 g) including battery
  • Color:    Black/Silver (Front/Back)
  • Case Material:    Black ABS plastic
  • Battery type:    Lithium Polymer with smart charge built into transceiver; 1800 mAH
  • Battery life:    Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx
  • Power Save:    Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
  • Charge time:    5 hrs. approx.
  • System Voltages:    OLED 14VDC; RF 5VDC; Logic 3.3 VDC
  • Operating frequencies:    2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
  • Audio Frequency response (-3dB Level):    Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz
  • SNR:    73 dB (A-weighted, default Rx volume with mic input )
  • THD:    0.1 % (Default Volume, 1kHz)
  • Microphone input:    Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.
  • Line Input:    USB-C, Adjustable level
  • Headphone Output:    3.5 mm TRRS headphone jack; 25 mW, R 32 ohms
  • Audio Output:    Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Line: USB-C, Adjustable level
  • Range:    Up to 900 ft (274 m) (depending upon environmental conditions)
  • Modulation:    FSK
  • RF Output:    19 dBm Typical
  • Security:    87 bit encryption (300 Series Compatiable), 87+128 bit Encryption, Encrpytion PIN, Lock for settings
  • Side tone:    -6 dB below volume, tone variation (Off, Low and High settings available)
  • Indicators:    OLED
  • LEDs:    Red LED around Talk button when enabled; Bi-color, changing green and red LED at top
  • Charging Connectors:    USB-C; Two contacts for use with CHG 412
  • Compatible Receiver:    DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations
  • Operating Tempurature Range:    14º to 113ºF (-10º to 45ºC)
  • Approvals:    FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki

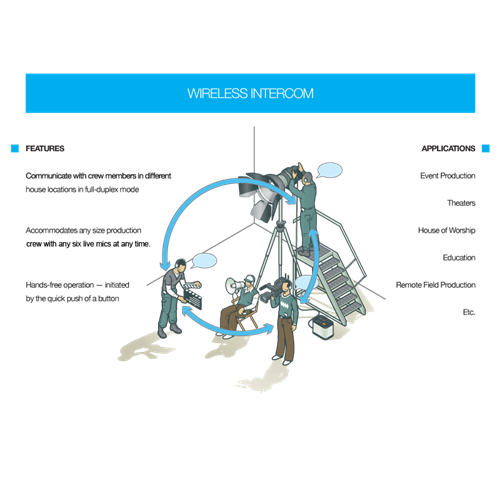

The Digi-Wave 400 system pack benefits guided tours by:

  • Allowing communication with crew members in different locations when in full-duplex mode
  • Hands-free operation which is initiated with the touch of a button
  • Two-way communication means the tour guide can speak one-ay, or allow interaction from participants as well
  • Offers language interpretation to be transmitted (1 way) for multi-lingual tours

Wireless intercom systems are necessary during guided tours when there is a safety component involved (for example a Bridge Climb or tour that involves heights), however they are becoming increasingly popular way of leading a tour group and can even be used to facilitate a self-guided tour in s museum or art gallery using a broadcast system.

When choosing a wireless intercom system you should look for all the things that Digi-Wave 400 has to offer: lightweight, portable, two-way communication system that connects tour guide system users with customers efficiently.
