Digiwave Personal Comms Kit DWS PCS 3 400 RCH Williams AV

Product Code: WI-DWSPCS3-400

Brand
Williams AV
RRP $2,149.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Williams AV

Digi-Wave Personal Communication System


INTERCOM & TOUR SYSTEMS
DWS PCS 3 400 RCH

Digi-Wave Series 400 Personal Communication System

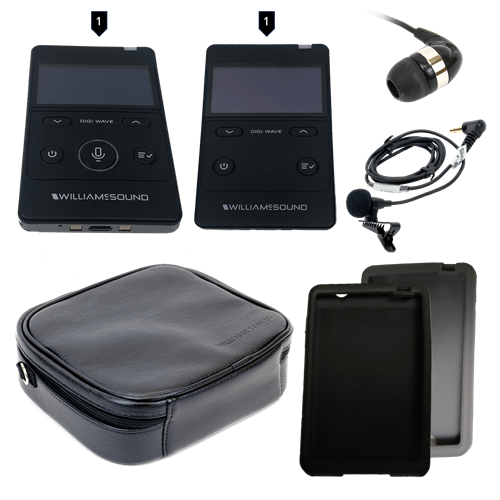

System Includes

  • (1) DLT 400 transceiver
  • (1) DLR 400 RCH receiver
  • (2) DWS ACC PAC4
  • (1) MIC 454 lapel microphone
  • (1) EAR 041 earphone
  • (1) CCS 043 system carry case
  • (1) CCS 061 GR grey silicone skin
  • (1) CCS 061 BK black silicone skin



DLR 400 RCH

  • Dimensions:    4.22"W x 2.60"H x 0.50"D (107.3 mm x 66 mm x 12.6 mm)
  • Weight:    3.3 oz (94 g) including battery
  • Colour:    Black
  • Battery type:    Lithium Polymer with smart charge built into transceiver; 1800 mAH
  • Battery life:    Up to 32 hrs per charge @ 1ch Rx
  • Power Save:    Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
  • Charge time:    5 hrs. approx.
  • System Voltage:    OLED 14VDC; RF 5VDC; Logic 3.3 VDC
  • Operating frequencies:    2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
  • Audio Frequency response (-3dB Level):    Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz
  • SNR:    73 dB (A-weighted)
  • THD:    0.1 % (Default Volume, 1kHz)
  • Headphone Output:    3.5 mm TRRS headphone jack; 25 mW, R32 Ω
  • Line Audio Output:    USB-C, Adjustable Level
  • Range:    Up to 900 ft (274 m) (depending upon environmental conditions)
  • Modulation:    FSK
  • RF Sensitivity:    -92 dBm
  • Security:    87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
  • Indicators:    OLED
  • LEDs:    Bi-color, changing green and red LED at top
  • Charging Connectors:    USB-C; Two contacts for use with CHG 412
  • Compatible Units:    DLT 400, DLT 300 with some limitations
  • Operating Tempurature Range:    14º to 113ºF (-10º to 45ºC)
  • Approvals:    FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
  • Warranty:    2-year warranty against component failure and manufacturing defects; 6 months on internal battery

DLT 400

  • Dimensions:    4.22"W x 2.60"H x 0.50"D (107.3 mm x 66 mm x 12.6 mm)
  • Weight:    3.3 oz (94 g) including battery
  • Colour:    Black/Silver (Front/Back)
  • Case Material:    Black ABS plastic
  • Battery type:    Lithium Polymer with smart charge built into transceiver; 1800 mAH
  • Battery life:    Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx
  • Power Save:    Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
  • Charge time:    5 hrs. approx.
  • System Voltages:    OLED 14VDC; RF 5VDC; Logic 3.3 VDC
  • Operating frequencies:    2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
  • Audio Frequency response (-3dB Level):    Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz
  • SNR:    73 dB (A-weighted, default Rx volume with mic input )
  • THD:    0.1 % (Default Volume, 1kHz)
  • Microphone input:    Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.
  • Line Input:    USB-C, Adjustable level
  • Headphone Output:    3.5 mm TRRS headphone jack; 25 mW, R 32 ohms
  • Audio Output:    Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Line: USB-C, Adjustable level
  • Range:    Up to 900 ft (274 m) (depending upon environmental conditions)
  • Modulation:    FSK
  • RF Output:    19 dBm Typical
  • Security:    87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
  • Side tone:    -6 dB below volume, tone variation (Off, Low and High settings available)
  • Indicators:    OLED
  • LEDs:    Red LED around Talk button when enabled; Bi-color, changing green and red LED at top
  • Charging Connectors:    USB-C; Two contacts for use with CHG 412
  • Compatible Receiver:    DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations
  • Operating Temperature Range:    14º to 113ºF (-10º to 45ºC)
  • Approvals:    FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
  • Warranty:    2-years warranty against component failure and manufacturing defects. 6 months on the internal battery. See Full Warranty on the website for details.

EAR 041

  • Style:    Single, in-ear, isolation earphone
  • Plug:    3.5mm mono
  • Cord:    39"
  • Driver Size:    10 mm
  • Nominal Impedance:    16Ω
  • Freq. Response:    20 - 20kHz
  • Weight:    6g
  • Max Power Input:    5 mW
  • Sensitivity:    104 dB @ 1kHz
  • Replacement Silicone Tip:    EAR 043 (0ne pair)

DW ACC PAC

  • Weight: 0.25 lbs
  • Input Power: 100-240 VAC, 50/60 Hz, 0.2 A
  • Output Power: +5 VDC, 1.0 A
  • Included Adapters: US, UK, Euro, Australia
  • Approvals: UL, CE, IC
  • Warranty: 90 days
