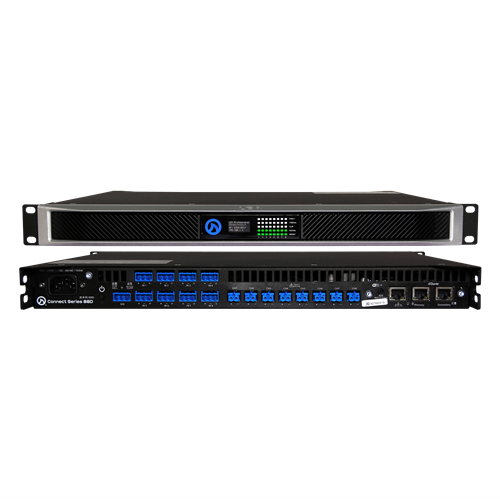

SMART AMP | 8 CHANNELS | 80 WATTS PER CHANNELThe CONNECTSERIES 88D is an 8-channel amplifier with 80 watts per channel. As part of the Dante CONNECTSERIES, the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers, it is perfectly suited for small to medium-scale installations. The 88D features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.
Then there’s the Cloud…Dante CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.
The Dante CONNECTSERIES also features analog inputs and Dante inputs and external I/O control for remote on/off and fault monitoring.
OUTPUT POWER
CONNECT88D 8 x 80 WRMS @ 4Ω, 8Ω, 70V, 100V (40W at 2Ω, 80W at 25V)
AUDIO SPEC
Inputs:4 Analog: Balanced Inputs with user selectable 26 dB and 34 dB input sensitivityDante: 8 x 8 Dante at 96kHz or 48kHz, Multicast or UnicastAES 67: Configurable via the Dante Controller SoftwareTHD+N: 0.1% (20Hz to 20kHz)Frequency Response: +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2ΩSignal to Noise: Level 105dB (20Hz to 20kHz referenced to 8Ω)Crosstalk: 70dB (20Hz to 20kHz)I/O Latency: 1 ms DSP latency under any conditionLoad Impedance: LowZ down to 2 ohms, 70V direct, and 100V Direct per channelOutput Classification: Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionalitywithout sacrificing an amplifier channelDC Offset: +/- 3mV
DSP
DSP Architecture: Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate ConvertersInput Matrix: Routable matrix; any input to any output with primary and secondary input priorityCrossovers: Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) and BesselParametric EQ: 8 Band Parametric EQ per channelOutput Delay: 100ms per channelOutput Protection: DC, VHF, and AC Mains Protection, Over-temp and Current Limiter, fan fault detectionLimiting: Peak Voltage and RMS VoltageLoad Monitoring: Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
CONTROL, MONITORING, NETWORK
Network Connectivity: Wi-Fi or 100MB Ethernet with PoE or Built in Wi-Fi Access Point (IEEE 802.11 b/g/n WPA, WPA2,WEP)User Interface: Web Browser User Interface or 3rd Party API control Q-SysOperating Systems: MAC, iOS, PC, AndroidEvent Reporting: User Downloadable and Viewable Event and Fault log - POE allows for enhanced error monitoringExternal I/O: External I/O In: Toggles Remote On/Off | External I/O Out: Indicates Amplifier HealthCloud IoT: Cloud based IoT functionality
OPS DATA
AC Mains: 100VAC - 240VAC +/- 15% 50Hz or 60HzTemperature: Storage: -20°C to 90° C - Operating: 0°C to 60° CPower Supply: Universal Switch Mode Power SupplySafety Approvals: UL, CSA,CE, ETL, FCC, CCC, KETI, NOM , ROHS, PSE
PHYSICAL SPEC
Dimensions (L x W x H):Product: 14.25” x 19” x 1U (362mm x 482mm x 1U) x 1U (362mm x 482mm x 1U)Shipping: 20” x 22.75” x 3.75” (508mm x 578mm x 95.25mm)Weight: Connect Series 88D & Connect Series 168D: 13.35lbs / 6.05kg | Shipping: 17.75lbs / 8.05kgCooling: Front to Rear Variable Fan Speed Cooling | Fan Noise at idle is 50dB @ 1m | Fan Noise at 50% is 57dB @1mFan Noise at full speed is 63dB @1mConnectors:Analog Input: 3 pin Amphenol Anytek, Output: 2 pin Amphenol Anytek, External IO: 3 pin Amphenol Anytek, Power in: IEC, Ethernet RJ45 In for Control, Primary and Secondary RJ45 in for Dante ***Note: 84D, 164D, 88D,168D do not have potentiometers on the rear panel
