NAD CI 8-150 DSP MULTI-CHANNEL AMPLIFIER

Product Code: NA-DCI8-150DSP

Brand
NAD
RRP $5,799.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands NAD
Amplifier Type Power Amp
Channel count 8
  • Details
  • Downloads
  • Where to Buy
  • Ordering

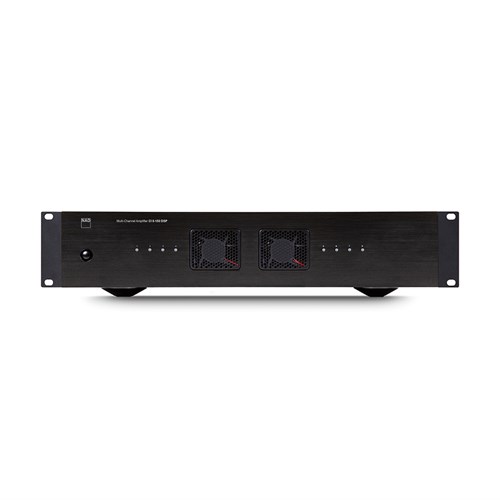

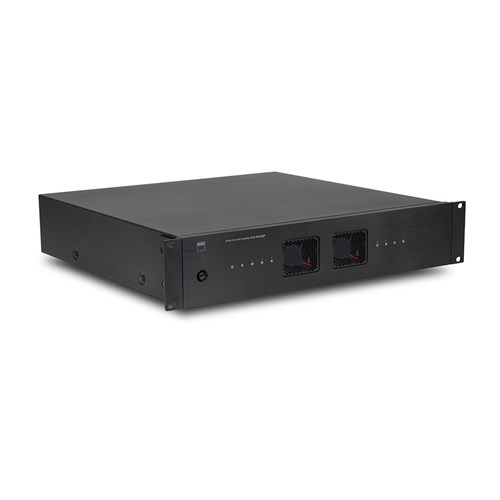

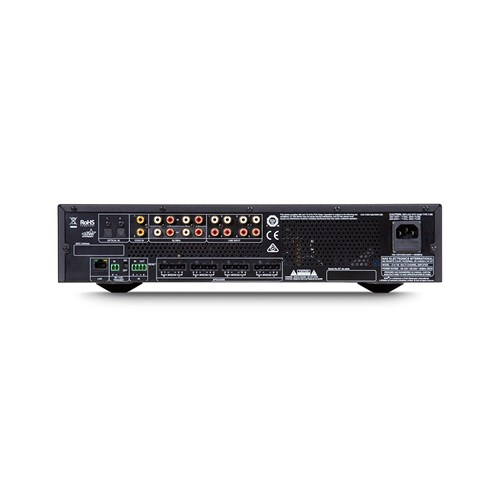

CI 8-150 DSP Multi-Channel Amplifier

Our eight-channel powerhouse promises NAD’s legendary performance with reliability and stability with lots of installer-friendly Features. The all-new CI 8-150 DSP is an advanced amplifier targeted squarely at audiophile-grade distributed audio systems. Delivering a conservative 8 x 150 Watts per channel @ 8 Ohms, it is also bridgeable to 4 x 280 Watts per channel @ 8 Ohms with all channels driven. To put it simply, the CI 8-150 will drive most anything you need in your multi-room audio system, and will do so with remarkable sound quality.


Key Features

  • 8 Channels x 150 Watts @ 8 Ohms
  • Bridgeable to 4 Channels X 280 Watts @ 8 Ohms, all channels driven
  • Ncore amplifier technology for audiophile sound quality
  • 2U Rack Height- saves valuable rack space
  • Platform accessed through IP control
  • Custom web app manages DSP calibration, IP control and more
  • Effectively handles long cable runs and difficult speaker loads
  • Dual global Inputs/Outputs
  • 0.5W Standby Mode, 3W Network Standby
  • 12V Trigger In; IR In/Out
  • Auto Sense Turn-on
  • Universal AC Power Supply

Smart CI Solution with Audiophile Performance for Distributed Audio

The Ncore amplifier platform delivers stable and efficient power with high current capability, all in a compact 2U rack space. To make this level of performance possible, the CI 8-150 DSP uses a customized version of the proven Ncore output stage. This allows for massive power with extremely low distortion and noise in the audible range. Every detail of this design has been carefully executed to wring out every last drop of performance. Designed to deal with the demands of the CI world, it was made to handle long cable runs and difficult speaker loads.

For additional flexibility for the system designer, the CI 8-150 offers multiple inputs including an additional two coax inputs and two optical inputs.

NAD is keenly aware that reliability is paramount for a professional installer so all models will be based on tried and true amplification platforms delivering stable and reliable performance. The CI 8-150 amplifier is robust and stable at 4 Ohm impedance. A variety of power methods are available as well as an Eco mode setting for minimal power consumption.


Specifications


GENERAL

  • Continuous output power into 8 ohms
    150 W (ref. 20 Hz-20 kHz at rated THD – all channels driven)
    180 W (ref. 20 Hz-20 kHz at rated THD – two channels driven)
  • Continuous output power into 4 ohms
    180 W (ref. 20 Hz-20 kHz at rated THD – all channels driven)
    300W (ref. 20 Hz-20 kHz at rated THD – two channels driven)
  • Continuous output power into 8 ohms at Bridged mode
    280 W (ref. 20 Hz-20 kHz 0.02% THD – all channels driven)
    500 W (ref. 20 Hz-20 kHz 0.02% THD – two channels driven)
  • THD (20 Hz – 20 kHz)
    0.02% (1 W to 120 W, 8 ohms and 4 ohms)
  • Signal-to-Noise Ratio
    90 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
  • Clipping power (All channels driven)
    160W(1kHz8ohms 0.1%THD)
    200W(1kHz4ohms 0.1%THD)
  • Clipping power into 8 ohms at Bridged mode
    300 W (1 kHz 0.1 % THD – all channels driven)
    550 W (1 kHz 0.1 % THD – two channels driven)
  • IHF Dynamic Power (all channels driven) – 8 Ohms
    180W
  • IHF Dynamic Power (all channels driven) – 4 Ohms
    280W
  • IHF Dynamic Power (two channels driven) – 8 Ohms
    200W
  • IHF Dynamic Power (two channels driven) – 4 Ohms
    360W
  • IHF Dynamic Power (Bridged mode, All channels driven) – 8 Ohms
    520W
  • IHF Dynamic Power (Bridged mode, All channels driven) – 4 Ohms
    670W
  • IHF Dynamic Power (Bridged mode, Two channels driven) – 8 Ohms
    600W
  • IHF Dynamic Power (Bridged mode, Two channels driven) – 4 Ohms
    800W
  • Peak output current
    26A(1ohm,1ms)
  • Damping Factor
    150 (ref. 8 ohms, 20 Hz to 6.5 kHz)
  • Frequency Response
    ±0.5dB(20Hz-20kHz)
  • Channel Seperation
    75 dB (1 kHz)
    65 dB (10 kHz)
  • Maximum undistorted input level
    3300 mV
  • Input sensitivity (for 150 W in 8 ohms, maximum volume)
    1450 mV
  • Analog Input audio sense threshold (one channel with signal)
    3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz)
  • Trigger IN level
    3-30Vdc
  • Standby power
    0.5 W

DIMENSION AND WEIGHT

  • Gross dimensions (W x H x D)*
    483x90x435mm
    19 1/16 x 3 9/16 x 17 3/16 inches
  • Shipping Weight
    17.6 kg
    (38.8 lbs)
