  • JBL Synthesis - 7" In-Ceiling Passive In-Ceiling speaker Ea 1" 2410H-2 Teonex Tweeter SCL5

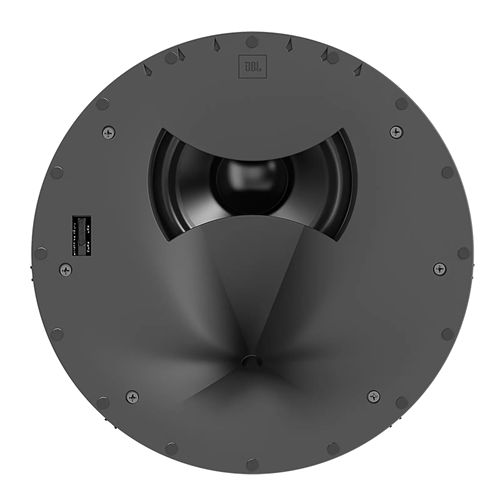

JBL Synthesis - 7" In-Ceiling Passive In-Ceiling speaker Ea 1" 2410H-2 Teonex Tweeter SCL5

Product Code: JB-SYNSCL5

Brand
JBL
RRP $4,299.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands JBL
Series Synthesis
Size 7"
Speaker Type In-ceiling

SCL-5
Two-way 7-inch (180mm) In-Ceiling Loudspeaker

The SCL-5 is the highest performance traditional round in-ceiling model in the JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for use as a height channel or in-ceiling LCR or surround channel loudspeaker. The SCL-5 features JBL’s patented 2409H 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI™) horn. This patented horn design is integrated with an angled 7-inch (180mm) Advanced Aluminum Matrix cone cast-frame woofer operating behind an acoustic aperture waveguide. The innovative configuration yields incredibly smooth and consistent performance for off-axis placement up to 60 degrees from the listening position. The SCL-5 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution. It is ideal for use in medium to large rooms.


  • PATENTED 2409H 1-INCH (25MM) COMPRESSION DRIVER
  • PATENTED HIGH-DEFINITION IMAGING HORN GEOMETRY
  • 7-INCH (180MM) CAST-FRAME, ADVANCED ALUMINUM MATRIX CONE WOOFER
  • ADVANCED CROSSOVER NETWORK
  • GOLD-PLATTED SPRING-LOADED BINDING POST INPUT TERMINALS
  • MOLDED BAFFLE WITH PATENTED CAT CLAW INSTALLATION MECHANISM

General Specifications

  • Type
    2-Way In-ceiling loudspeaker
  • Low Frequency Driver
    7” (180 mm) advanced Aluminum Matrix cone cast-frame woofer (JW180PB-6)
  • High Frequency Driver
    1" (25 mm) 2409H Teonex annular ring-diaphragm compression driver
  • Recommended Amplifier Power
    25 – 125W RMS
  • Impedance
    6 Ohm
  • Loudspeaker Sensitivity
    86 dB/2.83V/1m (2pi anechoic)
  • Frequency Response
    48Hz - 32kHz (-6 dB on-axis), 2pi anechoic
  • Crossover Frequency
    1575 Hz
  • High Frequency Coverage Angle (-6 dB)
    60-degree Vertical (Up
  • Enclosure Type
    Open back
  • Controls
    Boundary Proximity Control
  • Grille Dimensions
    Round - 12.5" (318 mm) diam.
  • Grille Dimensions
    Square - 12.5" (318 mm) x 12.5" (318 mm)
  • Product Dimensions (with grille)
    12.5" H x 12.5" W x 5.98" D (318 mm x 318 mm x 151.9 mm)
  • Cut-out Diameter
    11.2" (285 mm)
  • Accessory Rough-in Bracket
    CB10
  • Mounting Depth
    5.58" (141.8 mm)
  • Input Type
    Gold-plated spring-loaded binding posts
  • Product Weight
    8.6 lb. (3.9 kg), 9.2 lb. (4.2 kg) with one grille
  • Shipping Weight
    12.5 lb. (5.7 kg)
  • Shipping Units of Measure
    Each
