ABB UPS 12VDC 2A 8MRDC NTU/S12.2000 - Amber Tech
Products

ABB

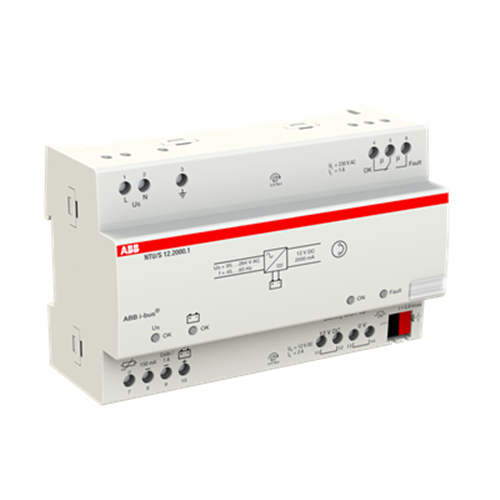

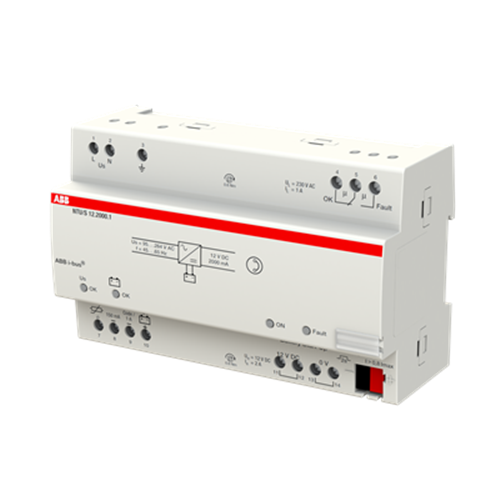

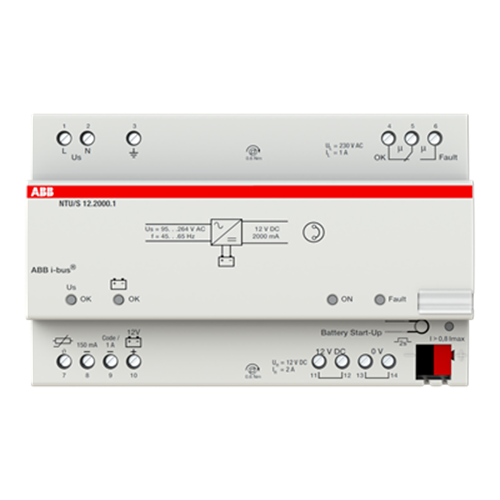

ABB UPS 12VDC 2A 8MRDC NTU/S12.2000.1

Product Code: AB-NTUS12.2000.1

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Power and Batteries

NTU/S12.2000.1

General Information

  • Extended Product Type: NTU/S12.2000.1
  • Product ID: 2CDG110070R0011
  • EAN: 4016779681179
  • Catalog Description: NTU/S12.2000.1 Uninterruptible Power Supply, 12 V DC, 2 A, MDRC
  • Long Description: delivers sufficient power for all types of demanding applications with a buffered output voltage of 12 V DC (SELV) and a maximum output current of 2 A. Operating malfunctions of the power supply are signalled via a changeover contact and can be sent for evaluation purposes. Up to two 12 V DC sealed lead-acid batteries (gel cell) can be connected in parallel with the power supply, in conjunction with the KS/K 4.1 and KS/K 2.1 cable sets, or the AM/S 12.1 battery module.
  • Installation
    • Mounting Type: DIN-Rail
  • Environmental
    • Degree of Protection: IP20
  • Technical
    • Number of Outputs: 1
    • Number of LEDs: 1
    • Number of Inputs: Analog (0 ... 10 V / 4 ... 20 mA) 1
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Manual Operation: No
    • Number of Batteries: 0
  • Electrical
    • Voltage Range: 110 ... 230 V AC
    • Output Voltage (Uout): 12 V DC
    • Buffer Voltage: No
    • Output Current Maximum (Iout): 2 A
    • Power Loss: 8 W
  • Design
    • Colour: light grey
  • Dimensions
    • Width in Number of Modular Spacings: 8.0
    • Product Net Width: 144 mm
    • Product Net Height: 90 mm
    • Product Net Depth / Length: 64.5 mm
    • Product Net Weight: 0.379 kg
