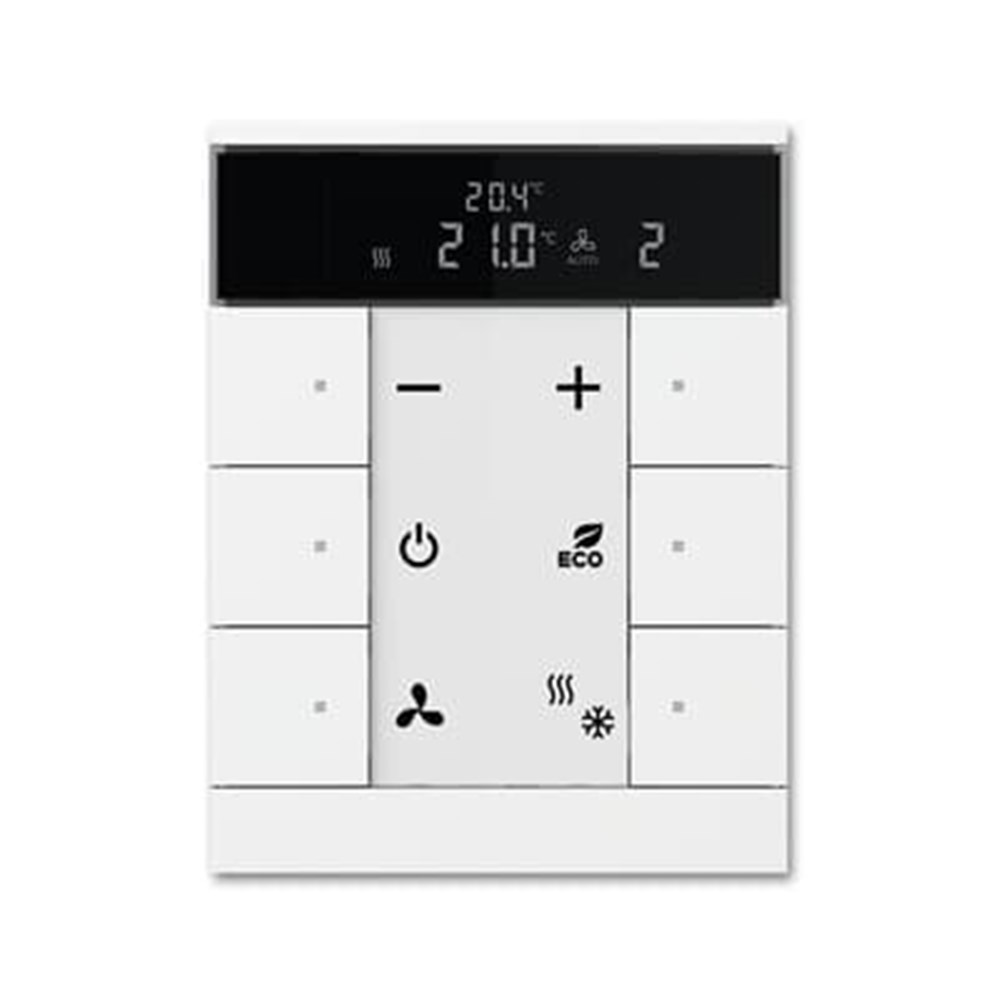

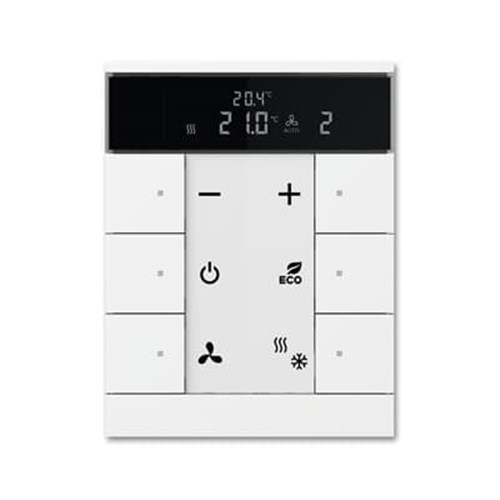

ABB TENTON 6G RT SLAVE SW WH SBS/U6.0.1-84

Product Code: AB-SBSU6.0.184

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Switches

SBS/U6.0.1-84

General Information

  • Extended Product Type: SBS/U6.0.1-84
  • Product ID: 2CKA006330A0002
  • EAN: 4011395255087
  • Catalog Description: SBS/U6.0.1-84 HVAC-Slave-device,6f. CE
  • Long Description: Freely configurable multifunction control element. Room temperature control/Controller extension with max. 6gang control With labelling field. Transparent labelling sheet with standard symbols included in delivery. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. Rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function). With integrated temperature sensor. With actual value temperature display With display of set-value temperature. The bus can be connected via enclosed terminal block. With integrated KNX bus coupler. Number of bus subscribers: 1
  • Installation
    • Mounting Type:
      • Flush Mounted
      • Surface Mounted
  • Environmental
    • Ambient Air Temperature: Operation -5 ... +45 °C
    • Degree of Protection: IP20
  • Technical
    • Number of LEDs: 6
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
  • Design
    • Design Range: ABB Tenton®
    • Surface Finishing:
      • Untreated
      • Glossy
    • Material: Thermoplastic
    • RAL Number: Similar to RAL 9016
    • Colour: studio white
  • Dimensions
    • Product Net Width: 90.1 mm
    • Product Net Height: 117.1 mm
    • Product Net Depth / Length: 44.2 mm
    • Product Net Weight: 335 g
    • Built-In Depth (t2): 30.7 mm
