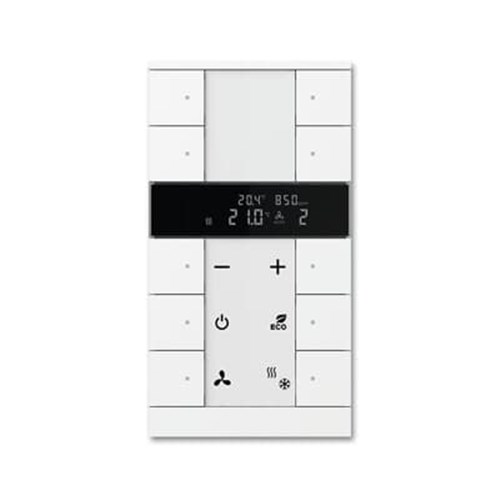

ABB TENTON 10G SENS SWT WH SBC/U10.0.1-84

Product Code: AB-SBCU10.0.184

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Switches

SBC/U10.0.1-84

General Information

  • Extended Product Type: SBC/U10.0.1-84
  • Product ID: 2CKA006330A0012
  • EAN: 4011395255216
  • Catalog Description: SBC/U10.0.1-84 HVAC/CO2-device,10f CE
  • Long Description: Control element with room temperature controller function and CO2/moisture sensor. With integrated KNX bus coupler. With labelling field. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. Push switch function: switching / dimming / blind / sending values / scenes etc. For activating heating, ventilation and fan coil actuators. Master/slave configuration. With base-load operation. The fan stage can be switched manually or in automatic mode. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%. Number of bus subscribers: 2
  • Installation
    • Mounting Type:
      • Flush Mounted
      • Surface Mounted
  • Environmental
    • Ambient Air Temperature: Operation -5 ... +45 °C
    • Degree of Protection: IP20
  • Technical
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
  • Design
    • Design Range: ABB Tenton®
    • Surface Finishing:
      • Untreated
      • Glossy
    • Material: Thermoplastic
    • RAL Number: Similar to RAL 9016
    • Colour: studio white
  • Dimensions
    • Product Net Width: 90.1 mm
    • Product Net Height: 167.1 mm
    • Product Net Depth / Length: 44.2 mm
    • Product Net Weight: 238 g
    • Built-In Depth (t2): 30.7 mm
