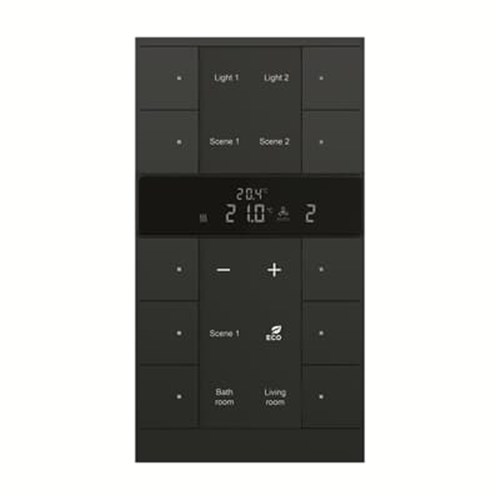

ABB TENTON 10G RT SWT MAT BK SBR/U10.0.1-885

Product Code: AB-SBRU10.0.1885

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Switches

SBR/U10.0.1-885

General Information

  • Extended Product Type: SBR/U10.0.1-885
  • Product ID: 2CKA006330A0055
  • EAN: 4011395298893
  • Catalog Description: SBR/U10.0.1-885 HVAC-device,10f. CE, black matt
  • Long Description: Freely configurable multifunction control element. With integrated KNX bus coupler. With labelling field. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. Push switch function: switching / dimming / blind / sending values / scenes etc. Master/slave configuration. With base-load operation. The controller is a constant room temperature controller for ventilator convectors (fan coils) in 2-pipe and 4-pipe systems and conventional heating or cooling systems. The fan stage can be switched manually or in automatic mode. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%. Number of bus subscribers: 1
  • Installation
    • Mounting Type:
      • Flush Mounted
      • Surface Mounted
  • Environmental
    • Ambient Air Temperature: Operation -5 ... +45 °C
    • Degree of Protection: IP20
    • Temperature Class Default: I
  • Technical
    • Number of LEDs: 10
    • Maximum Number of Switching Outputs: 33
    • Number of Gangs: 10
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
  • Design
    • Design Range: ABB Tenton®
    • Surface Finishing:
      • Lacquered
      • Matt
    • Material: Thermoplastic
    • RAL Number: Similar to RAL 9005
    • Colour: black matt
  • Dimensions
    • Product Net Width: 117.1 mm
    • Product Net Height: 90.1 mm
    • Product Net Depth / Length: 44.2 mm
    • Product Net Weight: 163.3 g
    • Built-In Depth (t2): 30.7 mm
