  • ABB TACTEO 1-FOLD GLASS SWITCH 115X86, STD CUSTOM TB/U1.3.1-CG
This is a Special Order Item

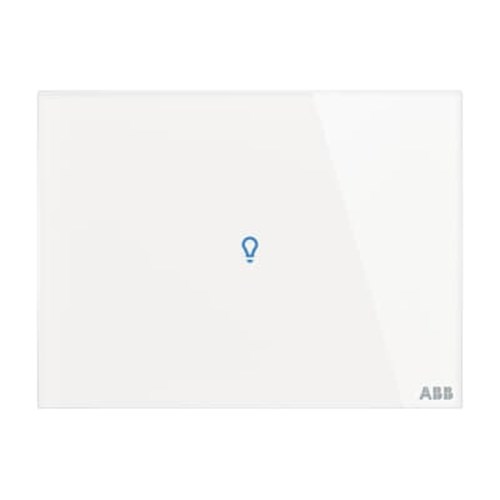

ABB TACTEO 1-FOLD GLASS SWITCH 115X86, STD CUSTOM TB/U1.3.1-CG

Product Code: AB-TBU1.3.1-CG

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Switches

TB/U1.3.1-CG

General Information

  • Extended Product Type: TB/U1.3.1-CG
  • Product ID: 2CKA006300A1590
  • EAN: 4011395231289
  • Catalog Description: TB/U1.3.1-CG Control element 1g.
  • Long Description: Ordering possible only in connection with the design ID. The icons and/or texts are configured by means of a web configuration tool. Freely configurable multifunction control element. With integrated KNX bus coupler. With integrated temperature sensor. With integrated proximity function. Push switch function: switching / dimming / blind / sending values / scenes etc. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. The bus connection is provided via the enclosed bus terminal. Number of bus subscribers: 1
  • Installation
    • Mounting Type: Flush Mounted
  • Environmental
    • Ambient Air Temperature: Operation -5 ... +45 °C
    • Degree of Protection: IP20
  • Technical
    • Number of Buttons: 1
    • Number of Actuation Points: 1
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
  • Design
    • Design Range: ABB tacteo®
    • Surface Finishing:
      • Untreated
      • Glossy
    • Material: Glass
  • Dimensions
    • Product Net Width: 115 mm
    • Product Net Height: 86 mm
    • Product Net Depth / Length: 34 mm
    • Product Net Weight: 130.1 g
    • Built-In Depth (t2): 35 mm
