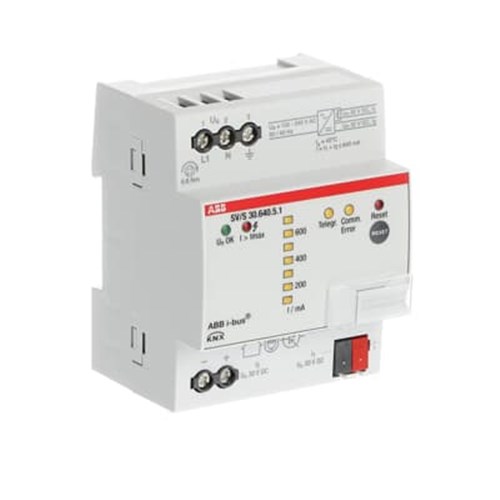

ABB KNX POWER SUPPLY 640MA WITH DIAGNOSTICS, 4MRDC SV/S30.640.5.1

Product Code: AB-SVS30.640.5.1

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Power and Batteries

SV/S30.640.5.1

General Information

  • Extended Product Type: SV/S30.640.5.1
  • Product ID: 2CDG110146R0011
  • EAN: 4016779866699
  • Catalog Description: SV/S30.640.5.1 Power Supply with Diagnostics, 640 mA, MDRC
  • Long Description: Compact Power Supply 640 mA with integrated choke. Quick diagnostics by LED display and ETS communication objects. Analysis of the operating state and the bus line possible by means of ABB i-bus tool. Additional voltage output to supply an additional line in conjunction with an additional choke.
  • Installation
    • Mounting Type: DIN-Rail
  • Environmental
    • Degree of Protection: IP20
  • Technical
    • Number of Outputs: 2
    • Number of LEDs: 1
    • Number of Integrated Chokes: 1
    • Number of Supplied Lines: 2
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Manual Operation: Yes
    • Number of Batteries: 0
  • Electrical
    • Voltage Range: 110 ... 230 V AC
    • Output Voltage (Uout): 30 V DC
    • Buffer Voltage: No
    • Output Current Maximum (Iout): 0.64 A
    • Power Loss: 9 W
  • Design
    • Colour: light grey
  • Dimensions
    • Width in Number of Modular Spacings: 4.0
    • Product Net Width: 72 mm
    • Product Net Height: 90 mm
    • Product Net Depth / Length: 64.5 mm
    • Product Net Weight: 0.26 kg
