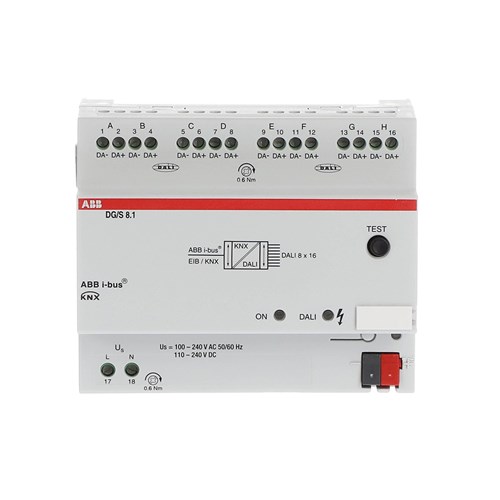

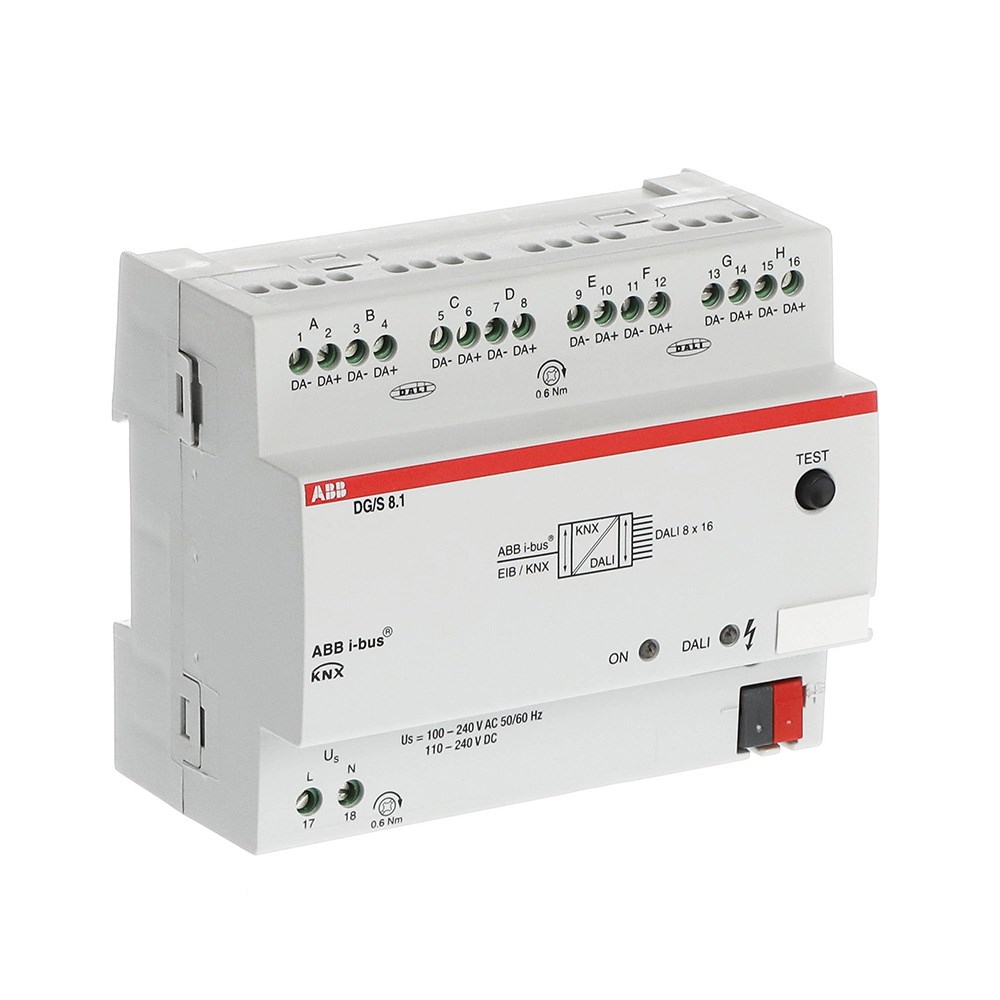

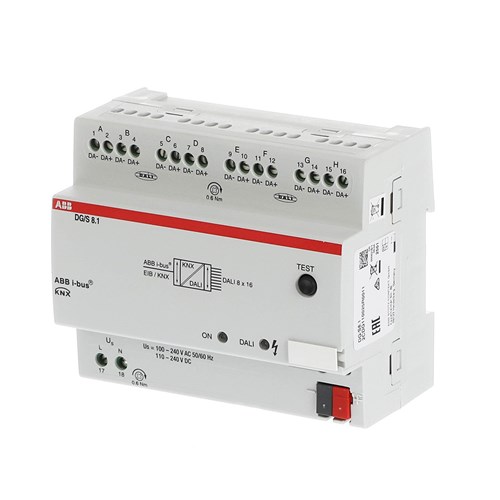

ABB DALI GWAY 8X16 6MRDC DG/S8.1

Product Code: AB-DGS8.1

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Lighting Control

DG/S8.1

General Information

  • Extended Product Type: DG/S8.1
  • Product ID: 2CDG110025R0011
  • EAN: 4016779585828
  • Catalog Description: DG/S8.1 DALI Gateway, 8-fold, MDRC
  • Long Description: Single-Master DALI Controller DALI (EN62386) trademarked. For controlling up to 128 standard DALI devices (DT0) acc. DALI or DALI-2. There are 8 separate, independent DALI outputs/channels available. Up to 16 DALI devices can be connected per channel. The DALI power supply is integrated in the gateway. The functions of switching, dimming, set values and fault indication for lamps and electronic ballasts are available for each output. It is possible to set the lamp burn-in time and 16 light scenes. Commissioning is simplified as no addressing or commissioning of the DALI devices is necessary.
  • Installation
    • Mounting Type: DIN-Rail
  • Environmental
    • Ambient Air Temperature: Operation -5 ... +45 °C
    • Degree of Protection: IP20
  • Technical
    • Communication Interface: DALI
    • Number of Outputs: 8
    • Number of LEDs: 1
    • Compatible Bus Systems:
      • KNX (TP)
      • DALI
    • Product Range: KNX
    • Software Updateable: Yes
    • Integrated Webserver: No
    • Manual Operation: Yes
    • Number of Batteries: 0
  • Electrical
    • Auxiliary Voltage AC/DC: 110 ... 230 V AC
    • Input Voltage (Uin): 230 V AC
    • Power Loss: 6 W
  • Design
    • Colour: light grey
  • Dimensions
    • Width in Number of Modular Spacings: 6.0
    • Product Net Width: 108 mm
    • Product Net Height: 90 mm
    • Product Net Depth / Length: 64.5 mm
    • Product Net Weight: 0.266 kg
    • Size: 6
