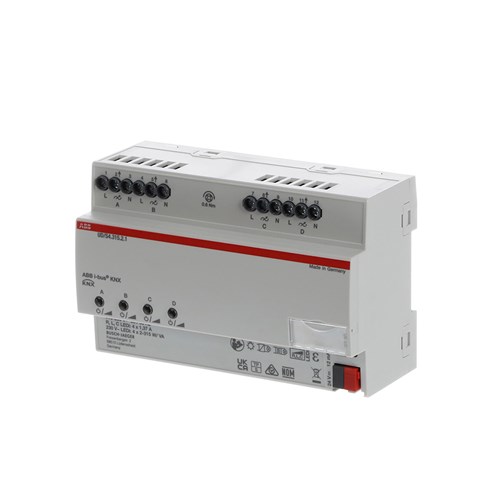

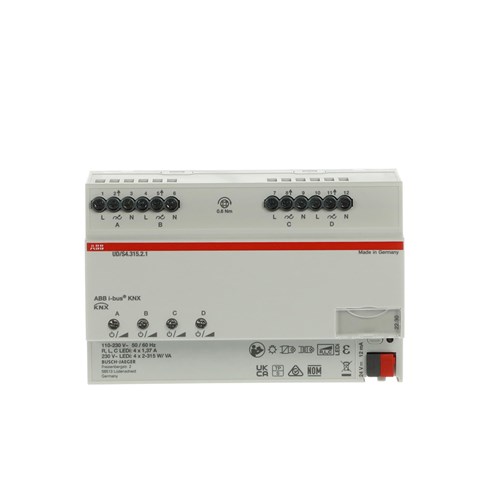

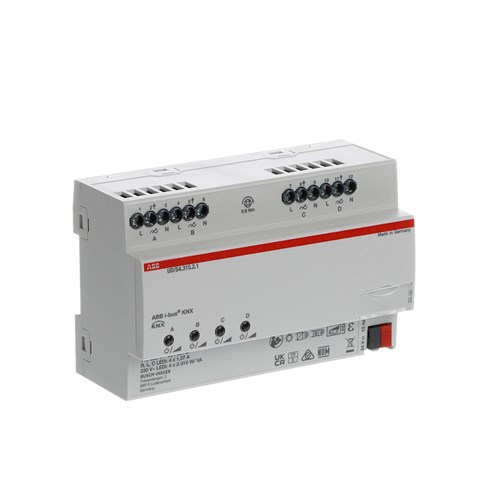

ABB 4CH LED DIM 4X315W 8MRDC UD/S4.315.2.1

Product Code: AB-UDS4.315.2.1

Brand
ABB
RRP: POA


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands ABB
Series KNX Lighting Control
  • Details
  • Downloads
  • Where to Buy
  • Ordering

UD/S4.315.2.1

General Information

  • Extended Product Type: UD/S4.315.2.1
  • Product ID: 2CKA006197A0057
  • EAN: 4011395251966
  • Catalog Description: UD/S4.315.2.1 LED-Dim actuator 4x315W
  • Long Description: Multichannel universal dimming actuator optimised for dimming retrofit LED lamps (LEDi). Also suitable for dimming incandescent lamps, low-voltage halogen lights with conventional or electronic transformers, 230 V halogen lamps and dimmable energy-saving halogen lamps. Automatic load detection (can be deactivated). Separate N-connection per channel. Parallel connection of the outputs possible to increase the output power. Outputs can be connected in parallel in groups. Minimum load: 2 W. Manual operation on device also possible without bus voltage or in an unprogrammed status. Programming of the device also possible without applied 230V supply voltage. Extensive test and diagnosis functions for the i-Bus tool. Fast parameter setting in ETS using copyable channel templates. With integrated bus coupler. Nominal power at 230 V~ mains voltage: 230 V~ incandescent and halogen lamps: 4 x 315 W/VA to 2 x 500 W/VA in trailing edge control, 4 x 120 W/VA to 2 x 200 W/VA in leading edge control. Dimmable 230 V~ LEDi: 4 x 315 W/VA to 2 x 500 W/VA in trailing edge control, 4 x 120 W/VA to 2 x 200 W/VA in leading edge control. Inductive L-transformers with LED/low-voltage halogen lamp: 4 x 315 W/VA to 2 x 500 W/VA. Electronic C-transformers with LED/low-voltage halogen lamp: 4 x 315 W/VA to 2 x 500 W/VA. Electronic LC-transformers with LED/low-voltage halogen lamp: 4 x 120 W/VA to 2 x 200 W/VA.
  • Installation
    • Mounting Type: DIN-Rail
  • Environmental
    • Ambient Air Temperature: Operation -5 ... +45 °C
    • Degree of Protection: IP20
  • Technical
    • Number of Outputs: 4
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Number of Batteries: 0
  • Electrical
    • Rated Voltage (Ur): 110 ... 230 V
    • Rated Operational Voltage: 230 V
    • Auxiliary Voltage AC/DC:
      • 110 V AC/DC
      • 230 V AC/DC
    • Rated Frequency (f): 50 / 60 Hz
    • Load Type: Universal and LED Retrofit
  • Design
    • Colour: light grey
  • Dimensions
    • Width in Number of Modular Spacings: 8.0
    • Product Net Width: 140 mm
    • Product Net Height: 90 mm
    • Product Net Depth / Length: 63.5 mm
    • Product Net Weight: 437 g
    • Built-In Depth (t2): 63.5 mm
