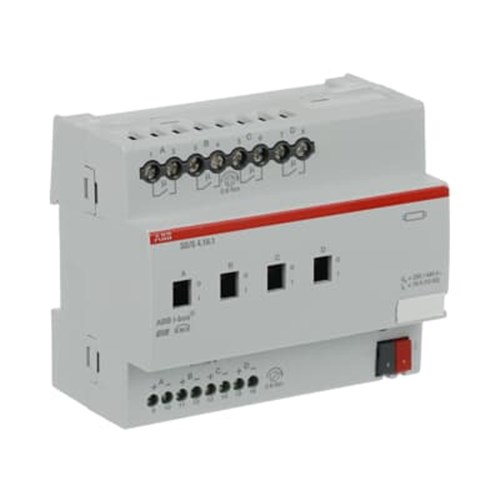

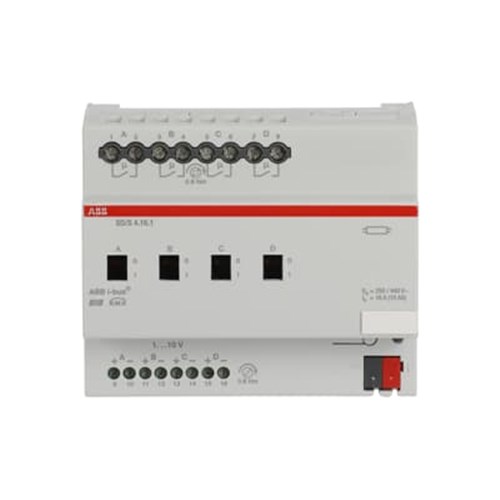

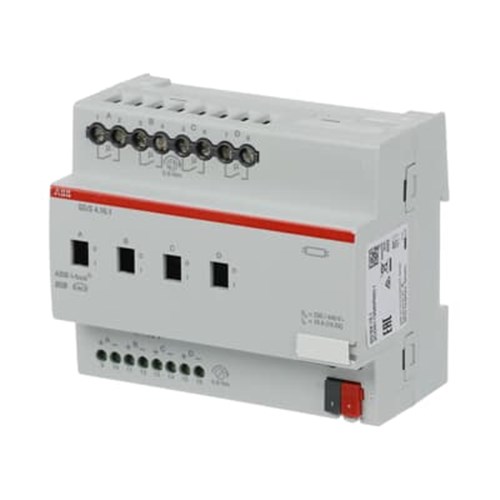

ABB 4CH 1-10V 16A DIM/ACTUATOR 6MRDC SD/S4.16.1

Product Code: AB-SDS4.16.1

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Lighting Control

SD/S 4.16.1

General Information

  • Extended Product Type: SD/S 4.16.1
  • Product ID: 2CDG110080R0011
  • EAN: 4016779659376
  • Catalog Description: SD/S4.16.1 Switch-/Dim Actuator, 4-fold, 16 A, MDRC
  • Long Description: MDRC Devices for switching and dimming of 2, 4 or 8 independent groups of luminaries with electrical ballasts and 1-10V control inputs. Per channel a potential free relay can be switched on or off via the ABB i-bus® or manually. Manual and visual operation is included. A power supply is not necessary.
  • Installation
    • Mounting Type: DIN-Rail
  • Environmental
    • Degree of Protection: IP20
  • Technical
    • Number of Outputs: 4
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Manual Operation: Yes
    • Number of Batteries: 0
  • Electrical
    • Rated Operational Voltage: 110 ... 230 V AC
    • Auxiliary Voltage AC/DC: KNX
    • Output Voltage (Uout): 230 V AC
    • Maximum Switching Current: 16 A
    • Maximum Control Current DC: 100 mA
    • Rated Frequency (f): 50 / 60 Hz
    • Load Type: Universal
    • Power Loss: 5.2 W
  • Design
    • Colour: light grey
  • Dimensions
    • Width in Number of Modular Spacings: 6.0
    • Product Net Width: 108 mm
    • Product Net Height: 90 mm
    • Product Net Depth / Length: 64.5 mm
    • Product Net Weight: 0.28 kg
    • Built-In Depth (t2): 64.5 mm
