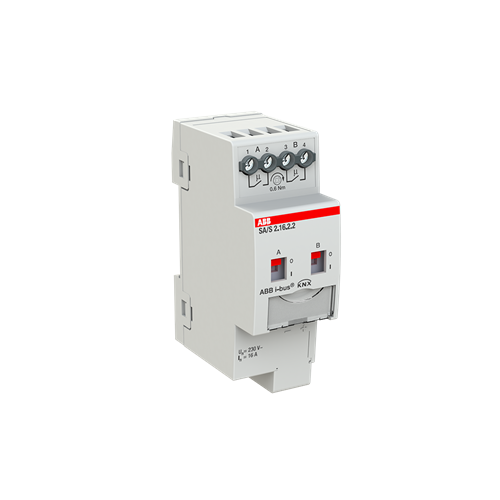

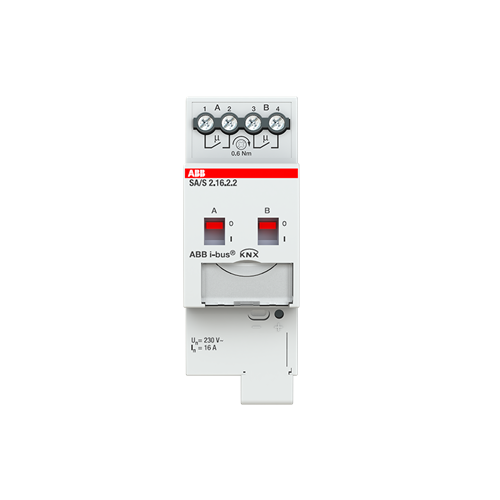

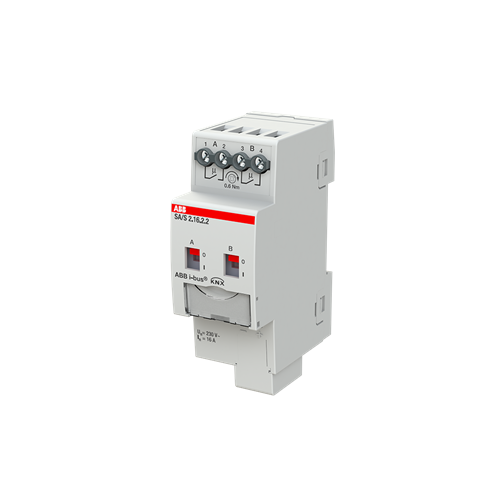

ABB 2CH 16A SWITCH ACTUATOR 2MRDC SA/S2.16.2.2

Product Code: AB-SAS2.16.2.2

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Actuators

SA/S2.16.2.2

General Information

  • Extended Product Type: SA/S2.16.2.2
  • Product ID: 2CDG110261R0011
  • EAN: 4016779066631
  • Catalog Description: SA/S2.16.2.2 Switch Actuator, 2-fold, 16 A, MDRC
  • Long Description: The switch actuator uses potential free contacts to switch 2 independent electrical loads via the ABB i-bus®. Manual operation and display of the switching state of the contacts. The 16 A device is especially suited for resistive loads.
  • Installation
    • Wiring Diagram: 9AKK108464A0325
    • Mounting Type: DIN-Rail
  • Environmental
  • Ambient Air Temperature: Operation -5 ... +45 °C
  • Degree of Protection:
  • IP20
  • Technical
    • Contact Position Indication: ON / OFF
    • Number of Outputs: 2
    • Number of LEDs: 1
    • Maximum Number of Switching Outputs: 2
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Manual Operation: Yes
    • Suitable for C-Load: No
    • Number of Batteries: 0
  • Electrical
    • Voltage Range: 230 V AC
    • Auxiliary Voltage AC/DC: KNX
    • Output Voltage (Uout): 230 V AC
    • Rated Current (In): 16 A
    • Maximum Switching Current: 16 A
    • Maximum Switching Power: 2500 W
    • Load Type: AC1
    • Power Loss: 2 W
  • Design
    • Colour: light grey
  • Dimensions
    • Width in Number of Modular Spacings: 2.0
    • Product Net Width: 36 mm
    • Product Net Height: 90 mm
    • Product Net Depth / Length: 63.5 mm
    • Product Net Weight: 0.13 kg
    • Built-In Depth (t2): 64.5 mm
